Data Sheet: SIEMENS 6DD1600-0AF0 Processor Module
Purpose

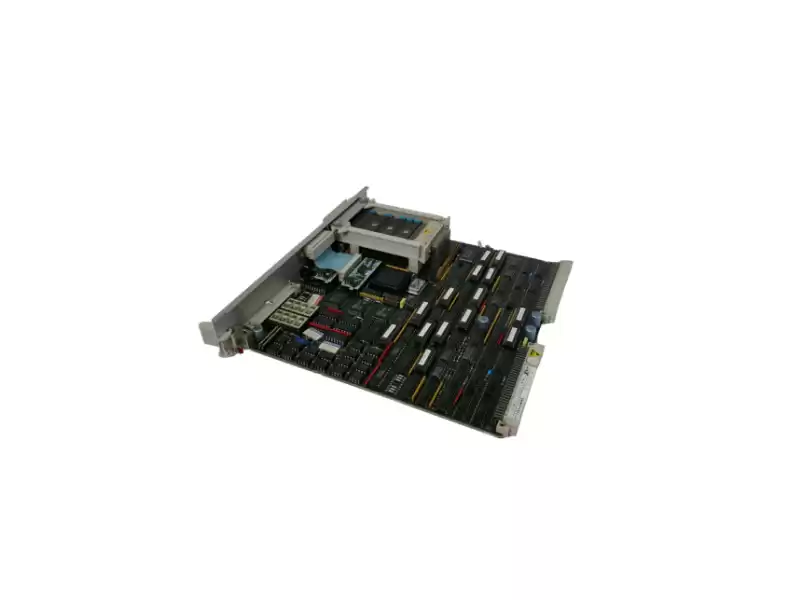

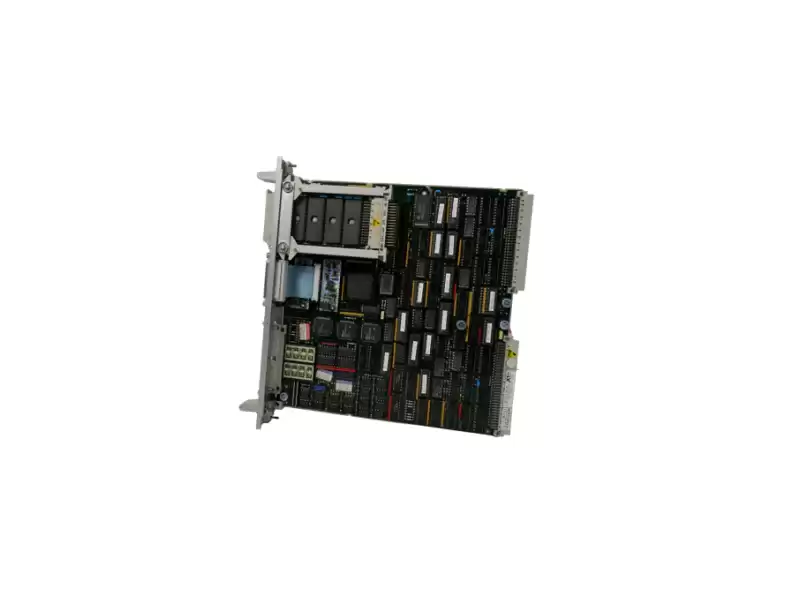

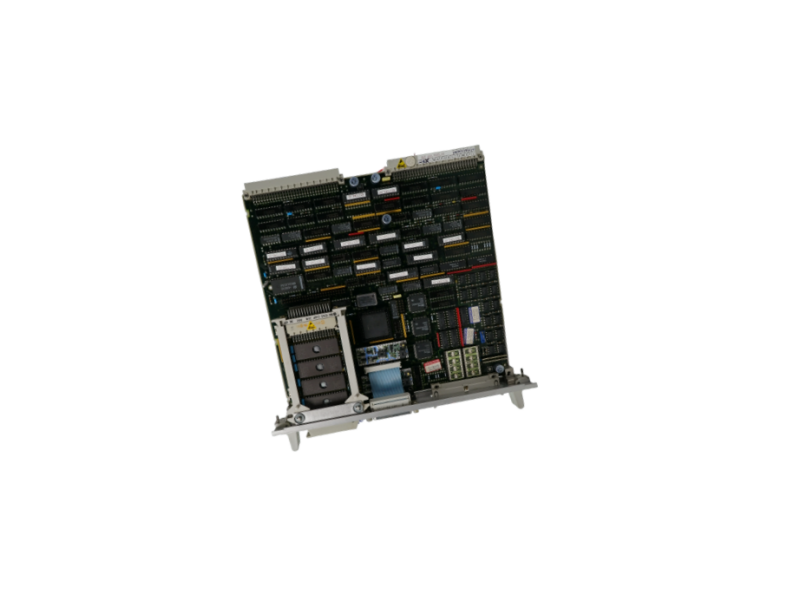

6DD1600-0AF0 is the central CPU module of the SIMADYN D system.
It executes high-speed control and regulation tasks in rolling mills, turbine governors, test benches and large drives.
Key Specifications (per datasheet)
• 32-bit RISC processor
• 1 MB onboard SRAM (user memory)
• 256 kB EPROM (firmware)
• 3 × serial RS-232/TTY & 1 × RS-485 interface
• 1 × PROFIBUS-DP (12 Mbps) master/slave port
• 24 V DC ± 20 % supply, 8 W typical
• –25 °C … +70 °C operating range
• DIN-rail 6DD rack, 100 × 160 mm slot
Typical Uses
• Steel mill tandem drives
• Hydro turbine speed control
• Servo-hydraulic test rigs
• Gas compressor anti-surge loops
Ready-to-Ship SIMADYN-D Package
|
Part Number
|
Description
|
|
6DD1600-0AF0
|
Processor module (this unit)
|
|
6DD1610-0AH0
|
2 MB memory card
|
|
6DD1640-0AC0
|
PROFIBUS-DP interface
|
|
6DD1681-0EB1
|
24 V DC power supply, 10 A
|
|
6DD1681-0CA2
|
Battery module, 10-year backup
|
|
6DD1681-0AE5
|
RS-485 cable, 3 m
|
|
6DD1681-0AG0
|
DIN-rail mounting kit
|
All items factory-sealed and available for same-day dispatch from PLC Autocontroller.
