Technical Brief: Allen-Bradley 2711P-T7C21D8S PanelView Plus 7 Standard Terminal
Product Overview

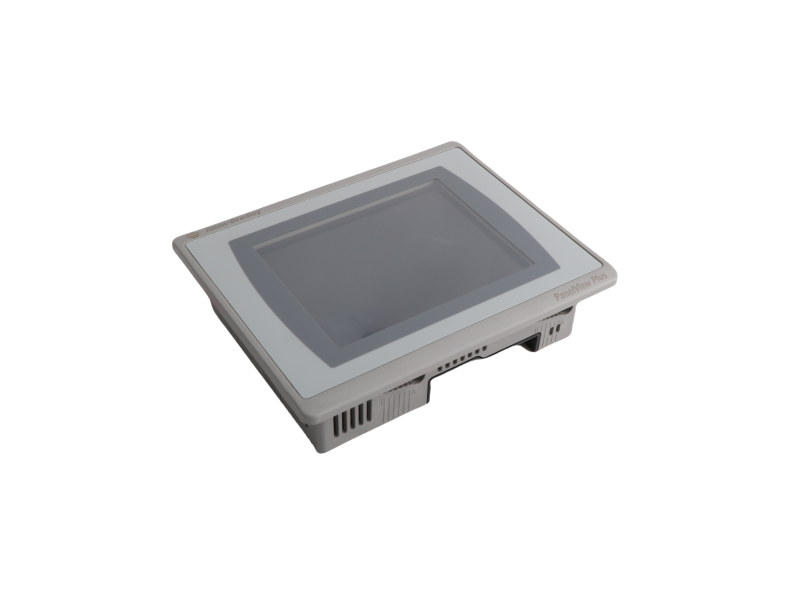

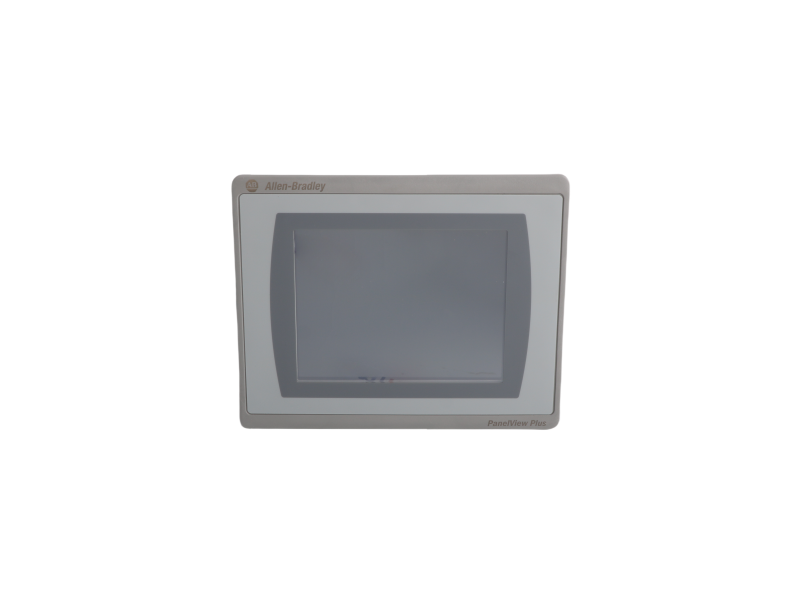

The 2711P-T7C21D8S is a flush-mount, 6.5-inch color-touch HMI from the PanelView Plus 7 Standard family.
It delivers real-time visualization and operator control for Allen-Bradley CompactLogix™, ControlLogix™, and GuardLogix™ systems in discrete, process, and safety applications.
Key Specifications
• Display: 6.5ʺ TFT, 640 × 480 VGA, 18-bit color, 4:3 aspect
• Touch: Analog resistive, 1 million actuations @ 100 g force
• Processor: 800 MHz ARM Cortex-A8
• Memory: 512 MB RAM, 512 MB flash, 80 MB user storage
• Real-Time Clock: Battery-backed, ±2 min/month accuracy, 4-year life @ 25 °C
• Operating System: Windows CE 6.0 with FTP, VNC, PDF viewer, ActiveX
Communications & Expansion
• Ethernet: 1× 10/100 Base-TX port for EtherNet/IP, Modbus TCP, OPC UA client
• USB: 1× USB 2.0 host (Type A) + 1× USB device (Type B)
• SD-Card Slot: standard SDHC up to 32 GB for recipes, logs, firmware
• Remote Access: VNC server, free FactoryTalk® View ME runtime project downloads
Installation & Mechanical
• Panel Cut-out: 142 × 184 mm (5.59 × 7.24 in.)
• Bezel Dimensions: 170 × 212 × 56.5 mm (6.69 × 8.35 × 2.22 in.)
• Weight: 0.85 kg (1.86 lb)
Ordering & Companion Hardware
|
Part Number
|
Description
|
|
2711P-T7C21D8S
|
PanelView Plus 7 Standard 6.5ʺ touch, DC, single Ethernet
|
|
2711P-RGT7
|
Protective gasket kit for 6.5ʺ cut-out
|
|
2711P-RSACDIN
|
24 V dc, 2.5 A DIN-rail power supply
|
|
2711P-RN20
|
Ethernet switch module (4-port unmanaged)
|
|
2711P-RW7
|
Replacement stylus kit (10 pcs)
|
|
2711P-RR128
|
128 MB SD card pre-loaded with FactoryTalk View ME runtime
|
All items are factory-sealed and supported by PLC Autocontroller for same-day quotation and overnight delivery.
