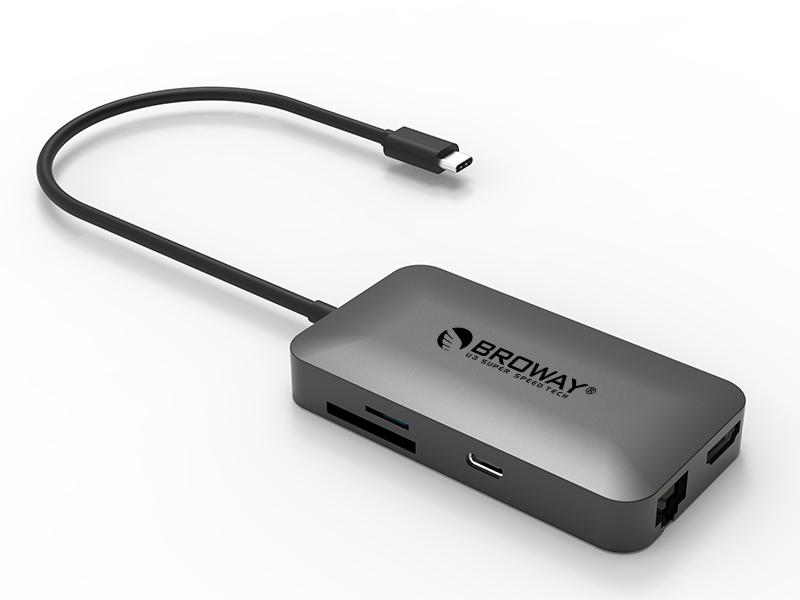

Aluminium 7 in 1 USB C Adapter Docking station hub

USB Type C 7 ports adapter with 4K HDMI,1000M RJ45,2*USB 3.0,SD/Micro SD card slot,Type C power delivery charging port.



Product description:

1, Aluminium 7 in 1 USB C Adapter equipped with 2 USB3.0 ,4 K HDMI ,RJ45,SD/Micro SD card reader slot,

power delivery port(PD,easily expand your daily Usb C devices.

2, USB 3.0 Ports at 5 Gbps:Allow you to connect keyboard, mouse, thumb drive to your laptop; provide high speed transfer rate of up to 5Gbp.

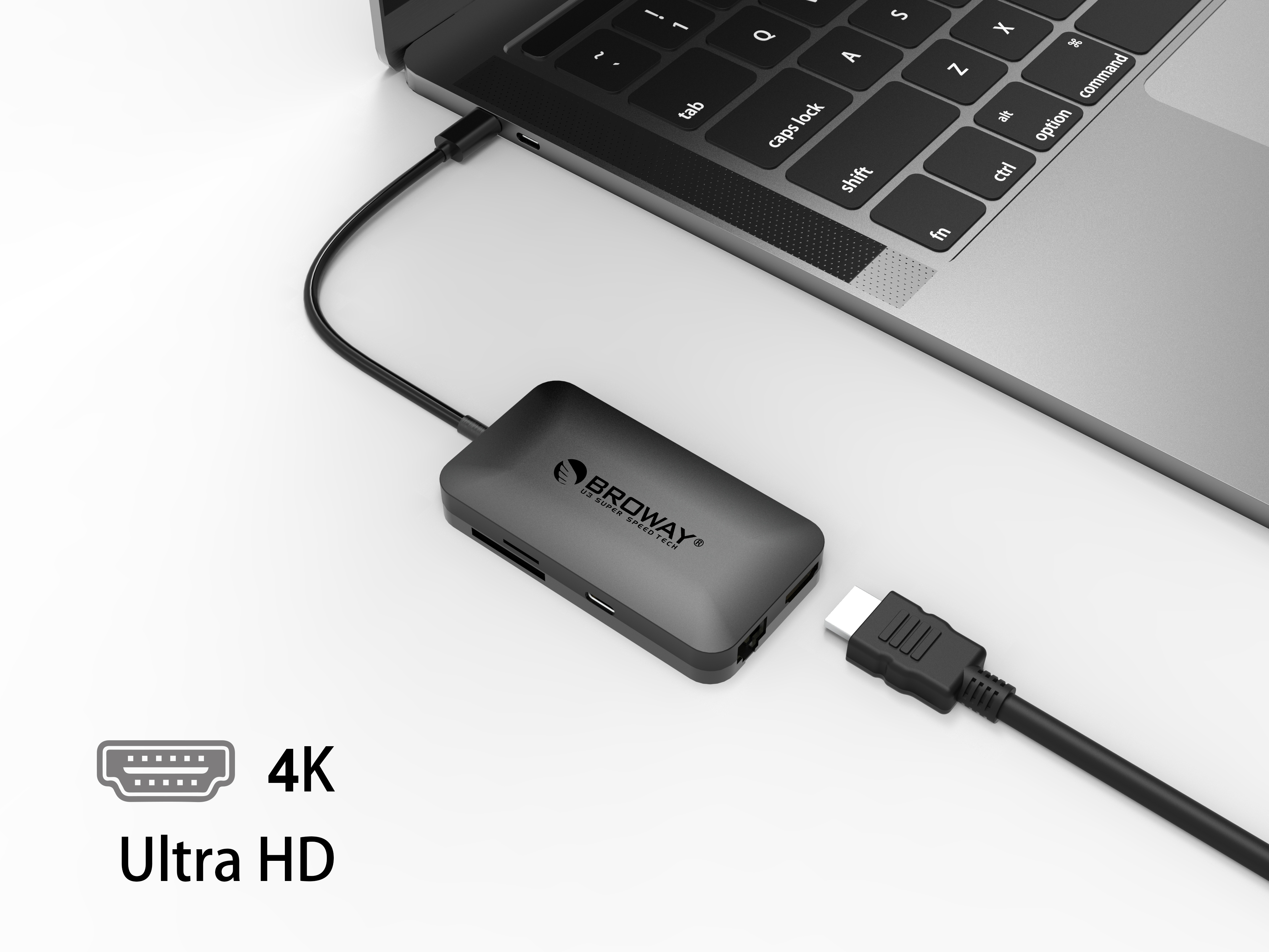

3, 4K display Adapter: This Usb C adapter enables you to mirror or extend the display of your laptop to your TV,monitor or projector in up to ultra HD (4K) at 30Hz or Full HD (1080p) at 60Hz resolution.

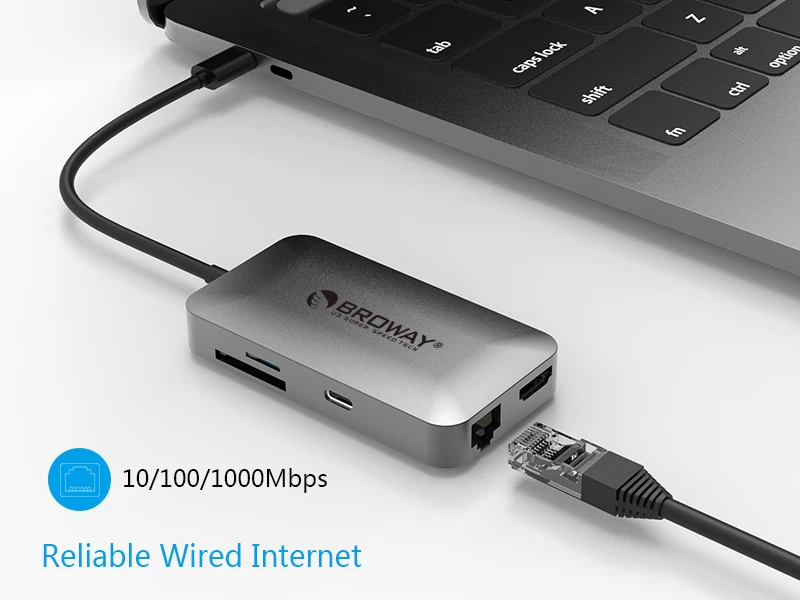

4,Gigabit Ethernet port: Connect your laptop to ethernet and get faster downloads(faster internet up to 1000 Mbps), more reliable video calls, less buffering, and less waiting around.

5, SD/Micro SD card slot: Support SDXC (up to 2TB), SDHC, SD, Micro SDXC, Micro SDHC and Micro SD cards read and write simultaneously.

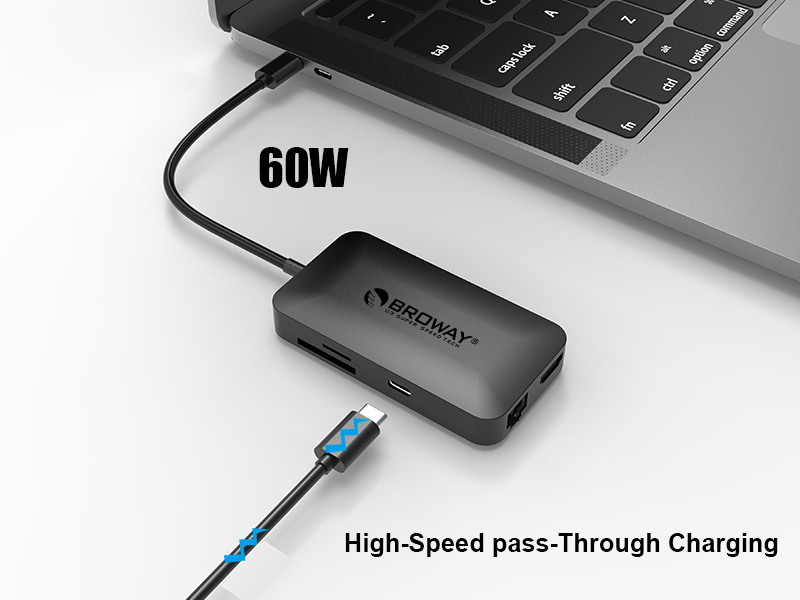

6, Power delivery port:Power is shared between all dock-connected USB-C devices and adjusted based on needs,

the 7 in 1 usb C adapter delivers about 52W for charging a connected laptop and 8W for powering the hub

when connected to a 60W power input,delivers about 32W for charging the connected laptop and 8W for

powering the hub when connected to a 40W power input.

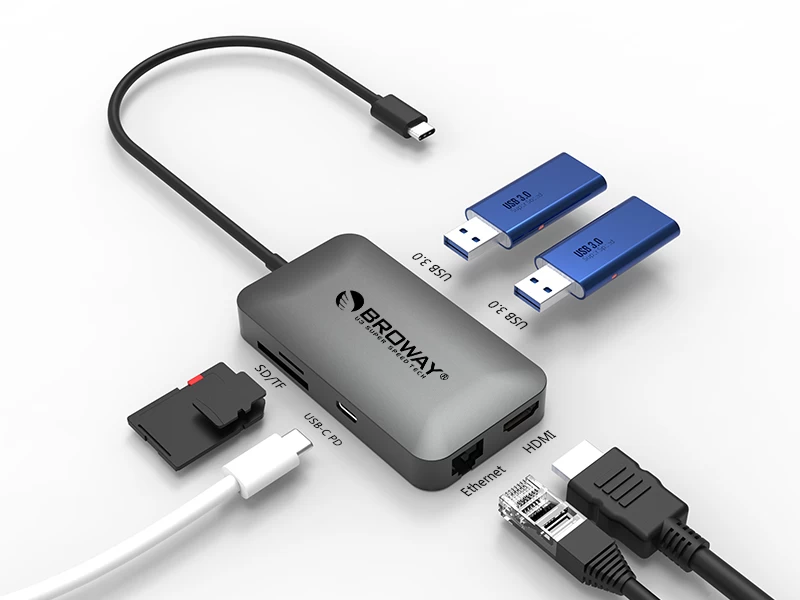

Interface:

2*USB 3.0

1*HDMI 4K 30Hz

1*Ethernet 10/100/1000

1*SD USB 3.0 Card reader

1*TF  USB 3.0 Card reader

1*Power Delivery Charging Port


Details Display:

USB Type C 7 ports adapter

Specification:

Brand:
Broway
Item Name:
BD3196C
Color:
Black &Grey &Silver
Material :
Aluminum+ABS

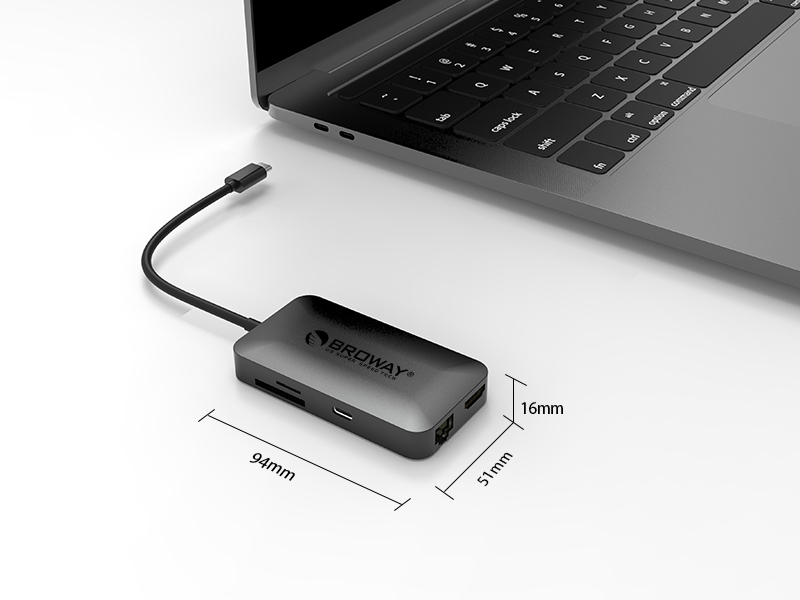

Product size:
94*51*16MM
Working Temperature:
0℃~40℃
Weight: --- Storage temperature:
'-20℃~60℃
Supported Systems:
Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later
Humidity:
25%RH.~93%RH.
Incompatible Devices:
iPad Pro 2018;Nintendo Switch; Apple USB Super Drive
Compatible Devices :

Apple Macbook Air (2018), Apple MacBook/ Pro

 (2016 / 2017/2018), Apple iMac / iMac Pro (21.5 in & 27 in).

Google ChromeBook Pixel, Dell, HP, Dell, Asus, HP, Lenovo and more laptops based on USB Type-C Protocol (USB 3.1 & PD 3.0 & DP 1.2).


Notice:

1, For a stable connection, connected devices should not exceed a combined current of 900mA.

2, Not intended for use with high-power devices (external hard drives, iPads, etc.).Due to power output limitations of some laptops, it is recommended that you connect only one HDD/SSD at a time.

3, 2.4 GHz wireless devices, MIDI devices and some USB 3.0 devices may not be supported.The extended cable is 0.5 ft long.


Service:

Warranty:14 month warranty

Service: OEM &OEM Support is available


FAQ:

1,Does it support 4K@60hz or just 30hz?

It just supports 4K@ 30hz


2, This type-C PD Port can be used for data transfer as well ?

No,it just be used for charging 60W max


3,Will this usb c adapter work well with all ports together?

Yes,all ports work perfectly at the same time


4, Does this require driver install ?

No,just attach it to your Usb C laptop and all of the ports worked without having to add any drivers.
