Aluminium Alloy Made Automatic Scanning Fire Monitor

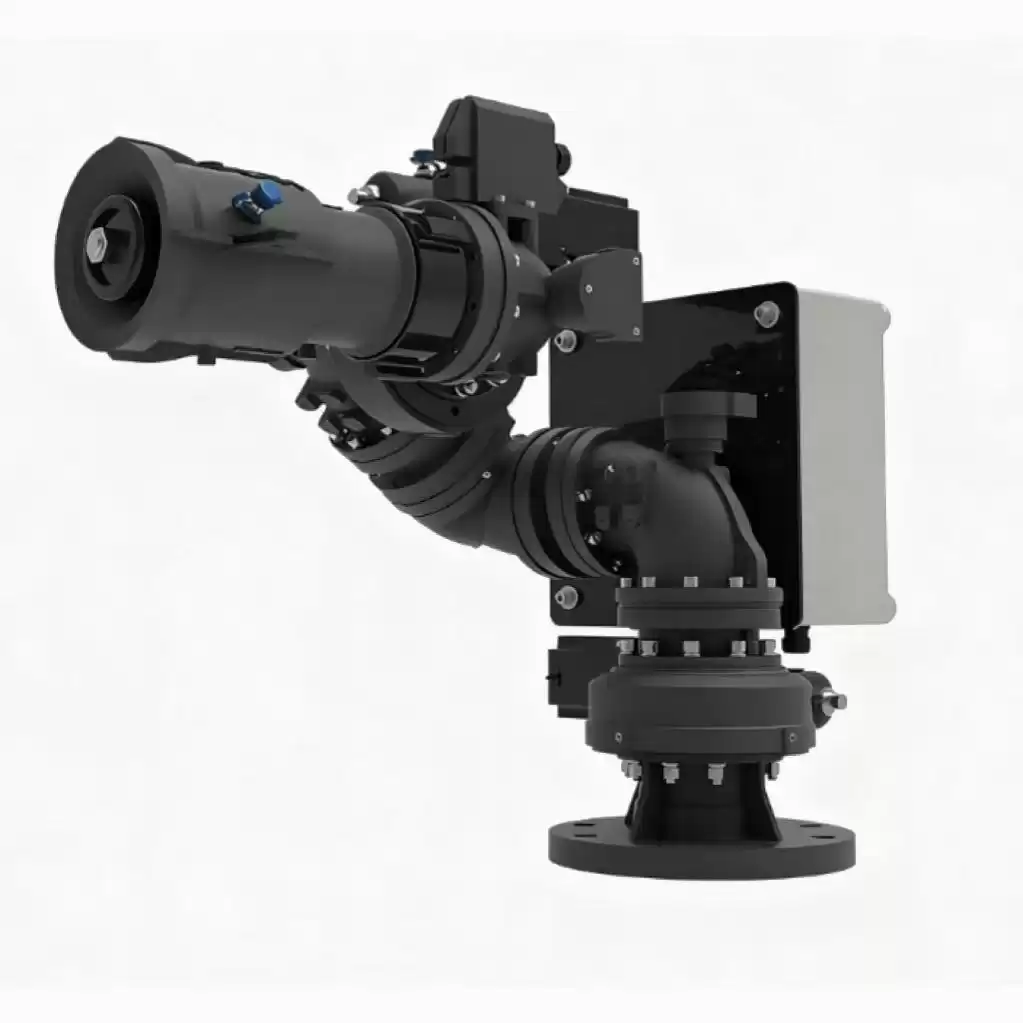

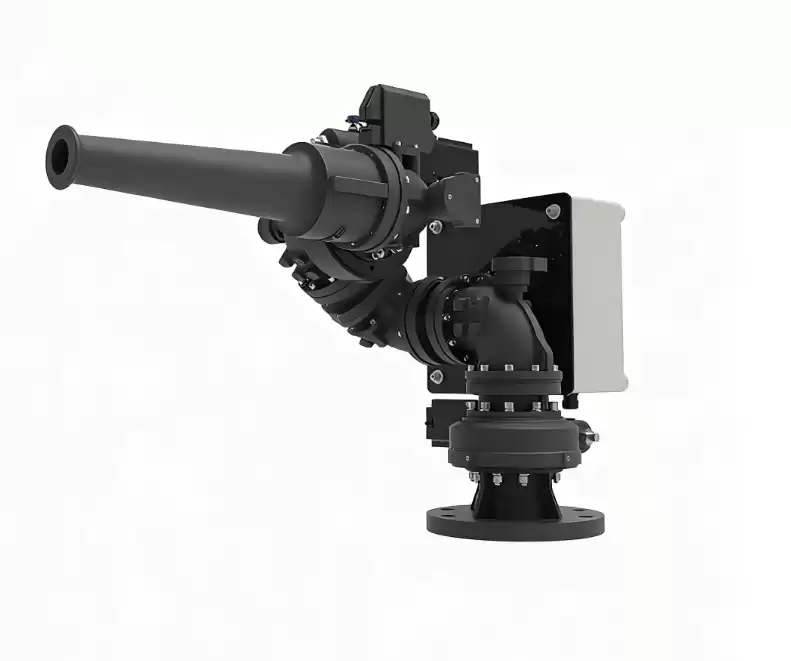

The Aluminium Alloy Made Automatic Scanning Fire Monitor is constructed from hard anodized aluminium alloy, ensuring durability and resistance to harsh environments. It can operate in automatic mode or be manually controlled via a control box, making it highly adaptable for various fire protection scenarios, especially in high - risk areas. Equipped with a constant nozzle, it can switch the jetting pattern between straight stream and fog, providing flexible fire suppression options.

A key feature of this fire monitor is its detector, which utilizes infrared ray and UV sensor technology to scan and locate fire points accurately. This enables rapid response to fires, minimizing potential damage to life and property. Whether in industrial facilities with severe fire hazards or other high - risk environments, this fire monitor offers reliable fire protection.

Feature

• Constructed from hard anodized aluminium alloy for durability.
• Operable in automatic or manual mode with a control box.
• Suitable for high - risk areas.
• Constant nozzle allows jetting pattern switch between straight stream and fog.
• Equipped with a detector using infrared ray and UV sensor technology for accurate fire - point scanning.
• Laser positioning indication and high - definition screen monitoring.

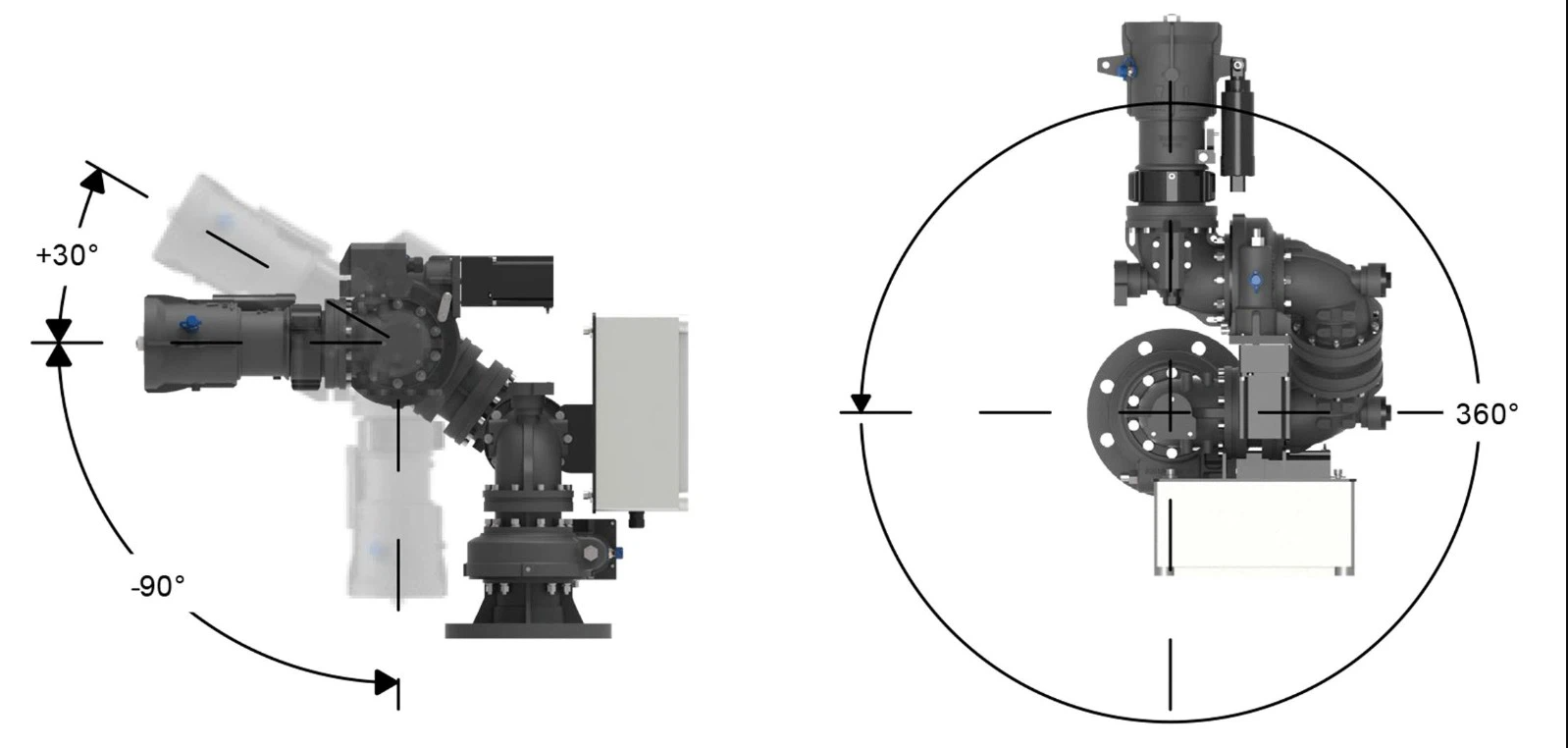

• 360° horizontal rotation and vertical travel from - 90° to + 30° (120° vertical travel range).
• Electric driver and control unit box are waterproof.
• Optional power supply: 12V/24V DC or 100 - 230AC.

Product Parameter

Model	ZDMS0.8/20S-W	ZDMS0.8/30S-W
Control	Automatic, Control box,Field manual	Automatic, Control box,Field manual
Working Pressure	8 bar	8 bar
Flow Rate	1200LPM	1800LPM
Jetting Radius	56m	62m
Max Protection Radius	50m	55m
Monitoring Radius	80m	80m
Mounting Height	8-15m	8-15m
Targeting Time	≤60s	≤60s
Swing Horizontally	360°	360°
Elevate Vertically	-90° to +30°	90° to +30°
Inlet	2.5''BS Flange,others size and standard available	2.5''BS Flange,others size and standard available
Detector Type	Infrared ray & UV sensor technology	Infrared ray & UV sensor technology
Communication Mode	RS485	RS485
Power Consumption	Monitoring 1W, Detecting 50W	Monitoring 1W, Detecting 50W



FAQ

 Q: Where are Remote Control Monitor applications?

A: RCMs find application in industries/operations having severe fire hazards, such as Oil & Gas facilities, flammable liquid storage and processing, Ports, etc, where exposing personnel to the high radiant heat/smoke and gases during fire incidents is not an option. RCMs provide the ideal solution to such problems as they can be operated from a safe and remote location.

---

Q: What is the production time of the sample?

A: A sample will be produced within 15 days.

---

Q: Can we make field trips and visit your factory?

A: Yes, We are pleased you come to visit our factory. Welcome!
