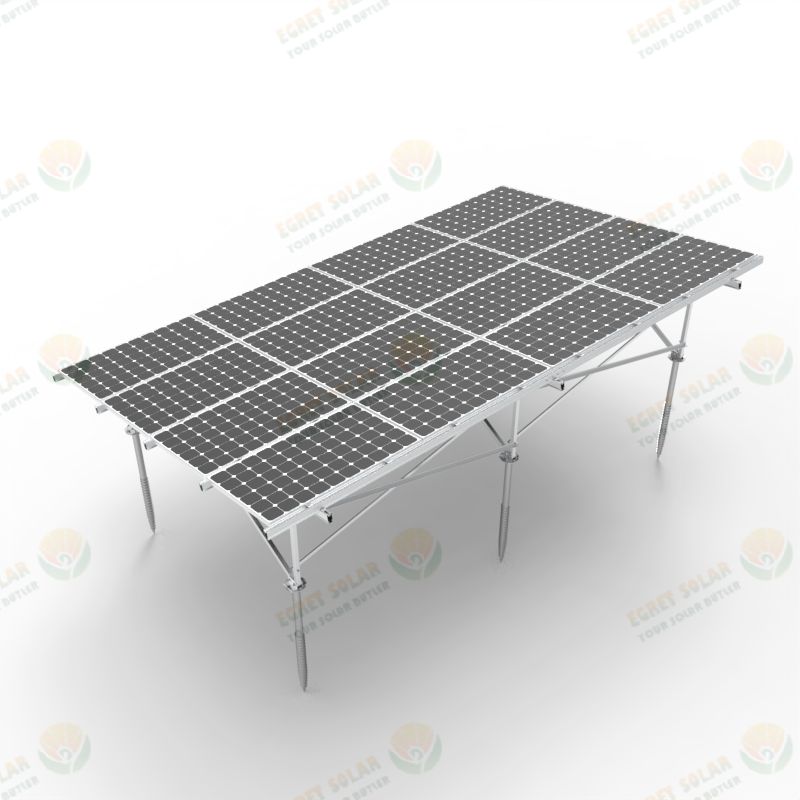

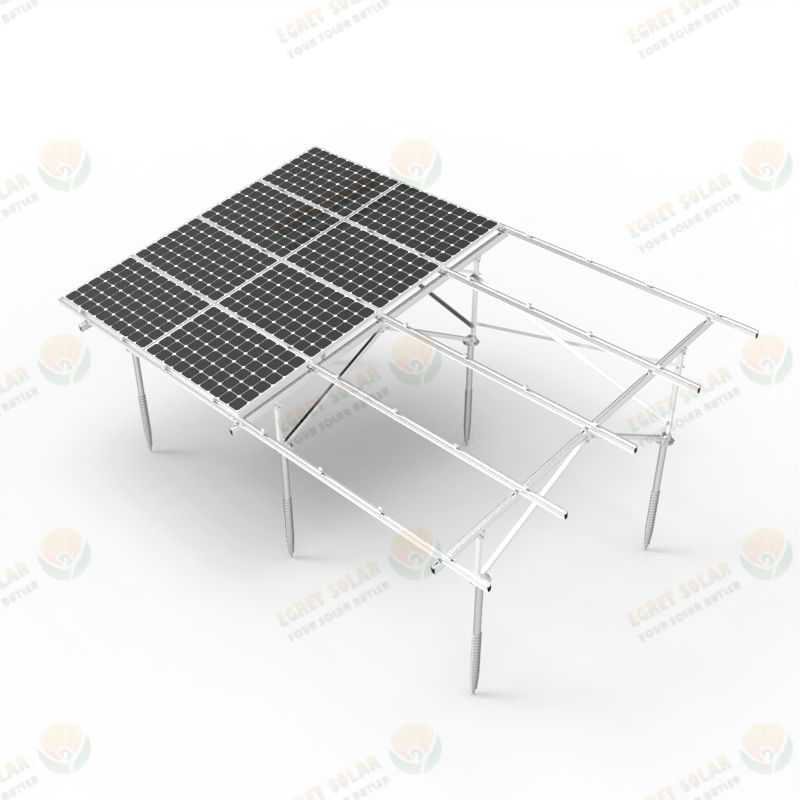

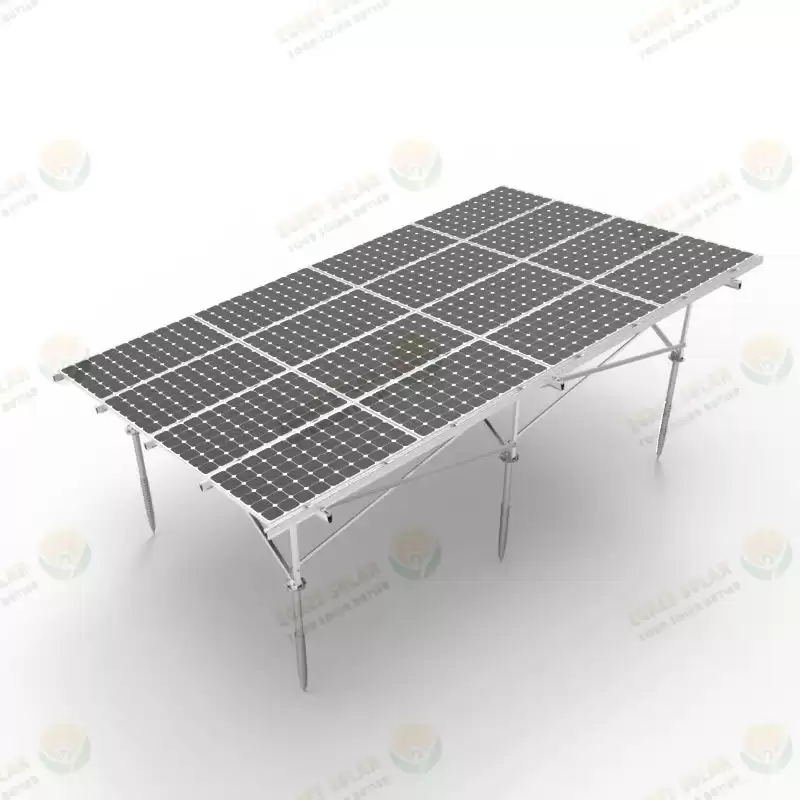

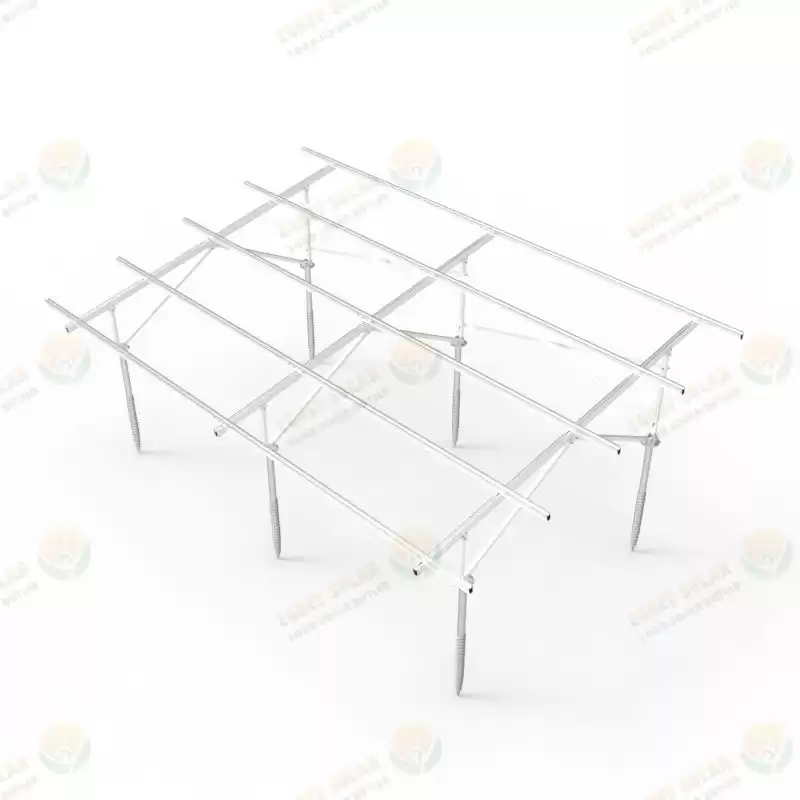

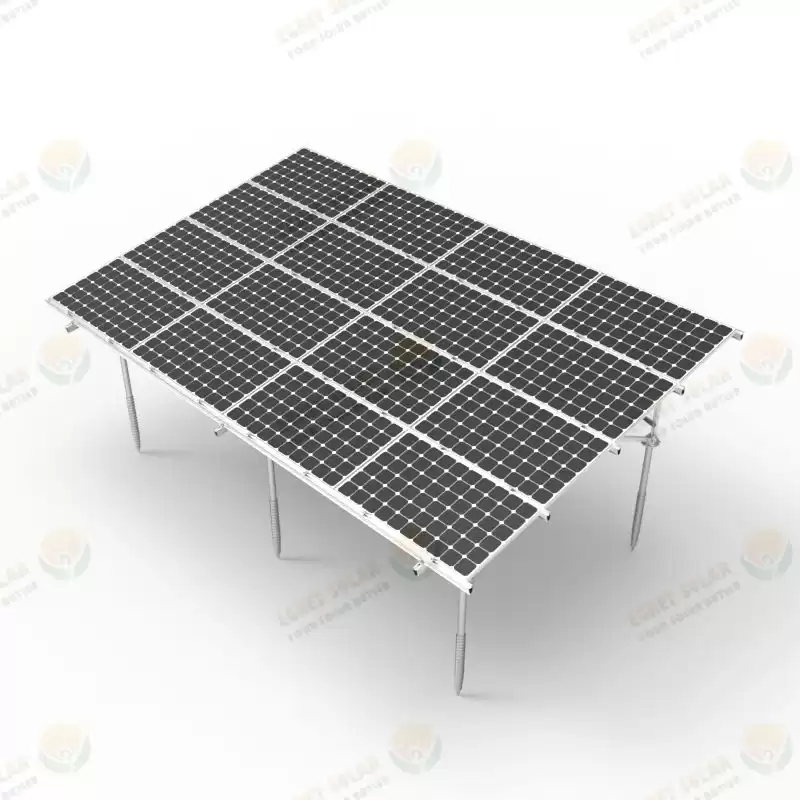

Aluminium Commercial Ground Solar Racking Mounting Panel System Structure

Common ground brackets in photovoltaic brackets, W-type is suitable for areas with high snow and high wind speed.



  • Payment :T/T,Paypal

  • Product Origin : China

  • Color : Black,Silver

  • Shipping Port :Xiamen

  • Brand : Egret Solar

  • Certification :ISO/SGS/CE

  • Material :AI6005-T5

  • Panel direction: Horizontal row
  • Lead Time:
  • Quantity (watts) 1-1000000 >1000000
    EST. Time(days) 25 To be negotiated





Product name W Type Aluminum Solar Ground mounting system (Horizontal row)
Model Number EG-GM01-W-Horizontal
Installation Site Ground mounting system
Surface Treatment Aluminum Andized
Wind Load 60m/s
Snow load 1.2KN/M²
Warranty 25 YEARS
Specification
1200mm/1600mm/1800mm/2000mm/2500mm



Product Description



This product is specially designed for large-scale solar ground projects and can be used with concrete base or screw ground piles according to different soil conditions. Using AL6005 aluminum alloy material, the overall structure has better anti-corrosion performance and appearance than steel structure. It has the characteristics of high pre-installation and light weight, which greatly saves labor costs and installation time.

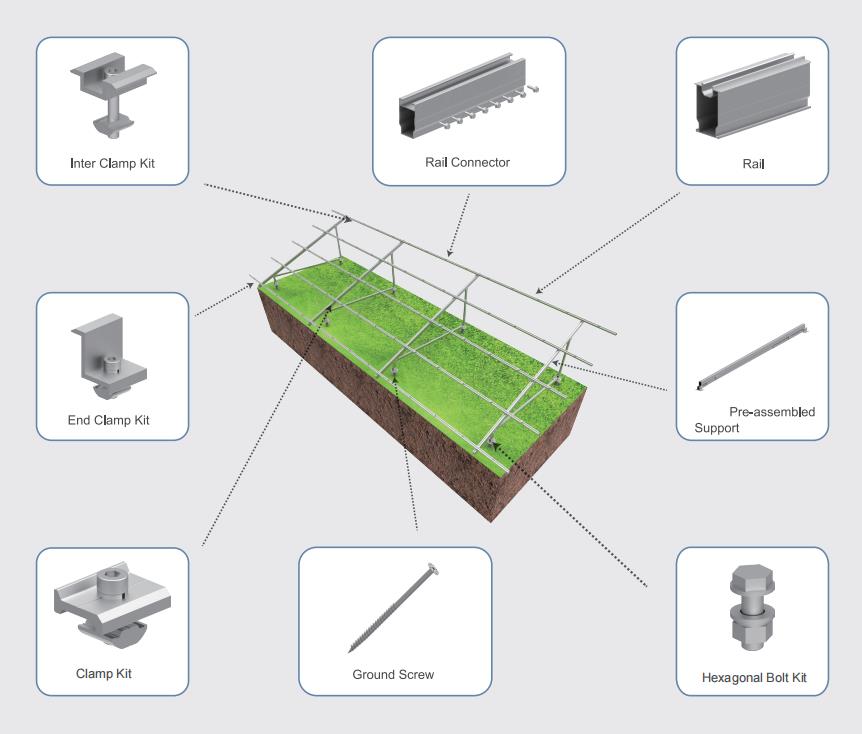

Exploded View

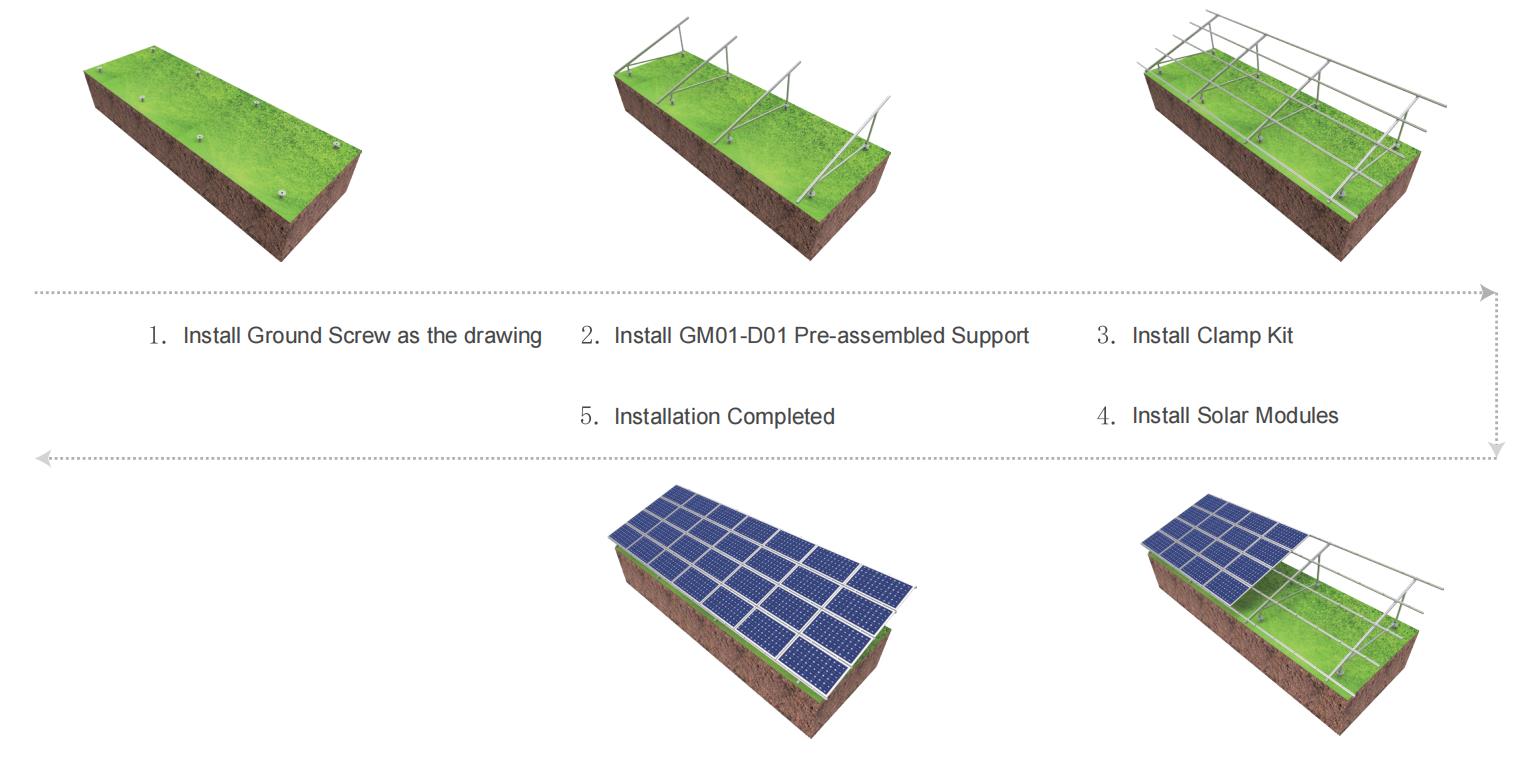

Installation Steps


FAQ

1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______

2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?

1)Ground

Structure Type:Common Ground,Carport or Solar Farm?

Foundation:Concrete,Ground Screw,C Pile or U Pile?

Minimum Ground Clearance:______mm

Earth report or not

2)Roof

Roof Type:Tin Roof,Tile Roof or Concrete?

Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?

Purlin Span:______mm
