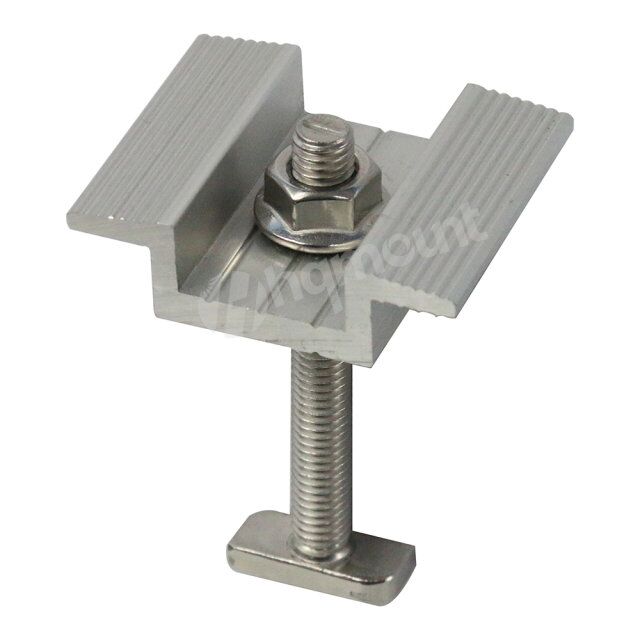

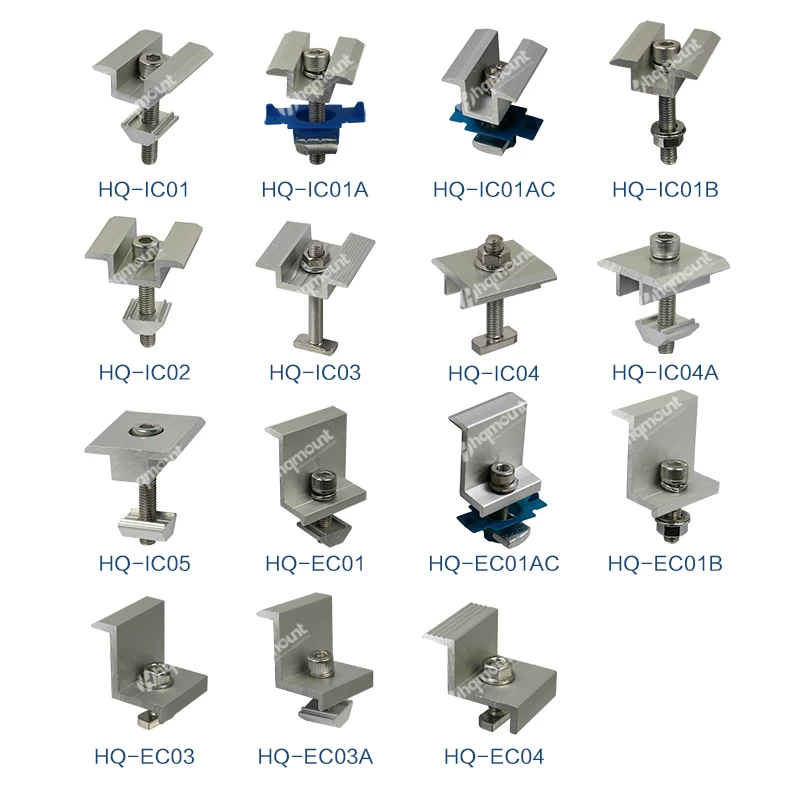

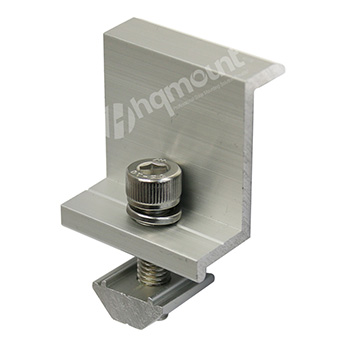

Aluminium Mid Clamp & End Clamp for Solar Panel Mounting Structure
HQ MOUNT provide solar mid clamps & end clamps for solar mounting structure.which are made of extruded anodized aluminium with 35mm/40mm/45mm/50mm length.and with accurate design, the mid clamp can make the connection between the panel firmly. Aluminium framed panel clamps for fixing panel on the rails.
HQ Solar panel mid clamps &end clamps also welcomed by most of solar installers, solar distributors&solar EPC company, we can provide customized with OEM Service if you need.

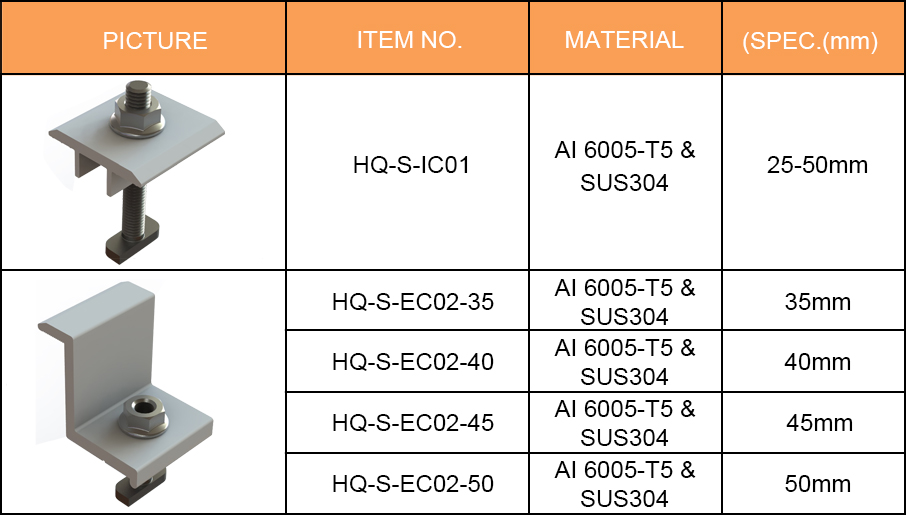

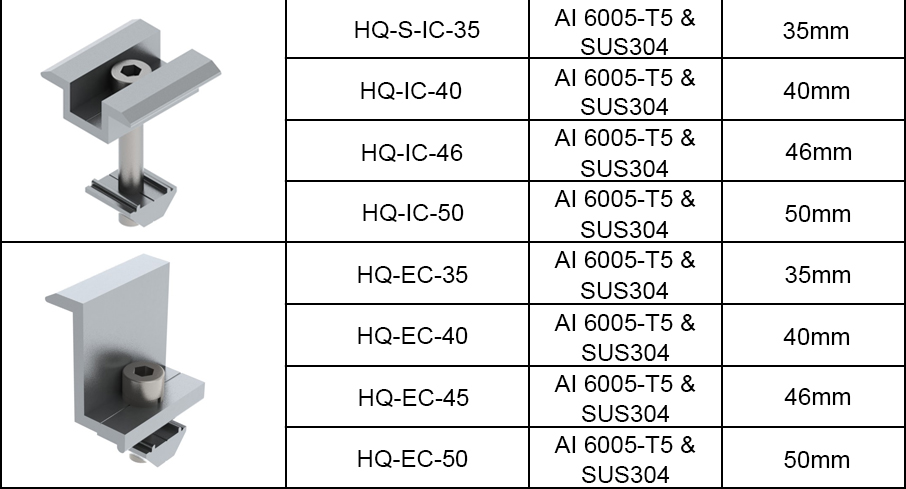

1.Specification of Solar Panel clamps
Material: AL6005-T5.
Specification: 35-50mm length, customized.
Color: Natural or black anodized.
Installation site: Solar mounting rails.
Wind Speed : 60m/s.
Warranty:12 years warranty, 25 years life time.
Packing:140-160 pcs for one carton.
2.Advantage for solar panel mounting clamps
*Aluminium material anti-corrosion,non-toxic and high recovery rate, suit for the use of green energy.
*Light weight but strong, easy to quick to install
*Standard mid clamps and end clamps,save your stock.
*Smooth surface, beautiful appearance.

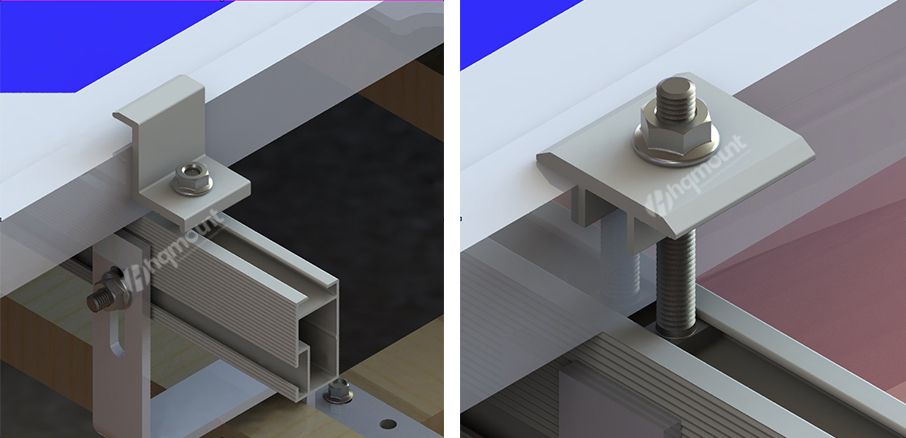

3.Project photo show of solar Panel clamp
