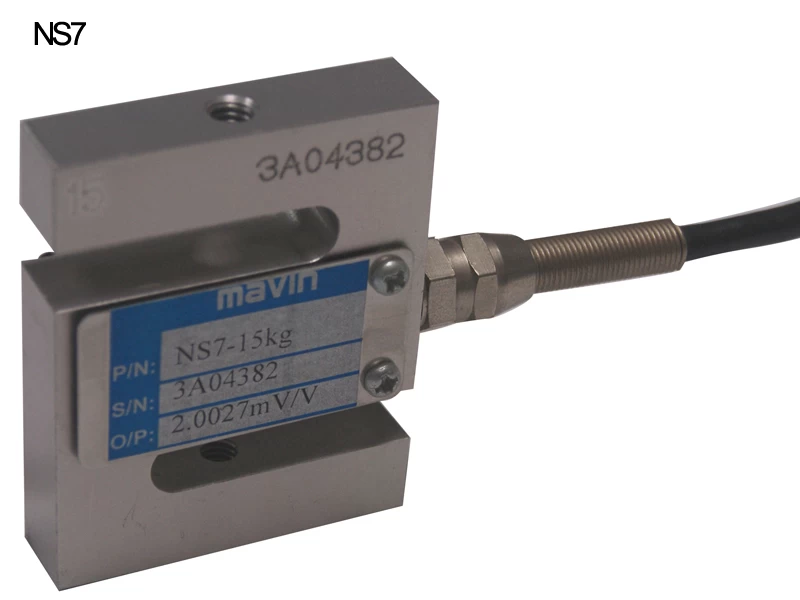

Aluminum Alloy S Beam force Sensor NS7

NS7 is S beam force sensor with good protection and high accuracy. The Aluminum S beam construction load cell is suitable for applications such as hanging scale and hopper scale with low capacity from10kgto20kg.


  • Rated Output2.0mV/V
  • Dimension63.5*50.8*14.7mm
  • MaterialAluminum Alloy
  • Capacities10-20kg
  • Protection ClassIP66 / IP67

Aluminum alloy Tension Load Cell NS7 (10-20 KG)

NS7 is S beam force sensor with good protection and high accuracy. The Aluminum S beam construction load cell is suitable for applications such as hanging scale and hopper scale with low capacity from10kgto20kg.


Key Features

Low profile

Aluminum alloy construction
Capacity: 10-20 KG

Easy to install, stable & reliable


Usage & Applications
Hopper scales
Crane scales

Tension control and machine testing

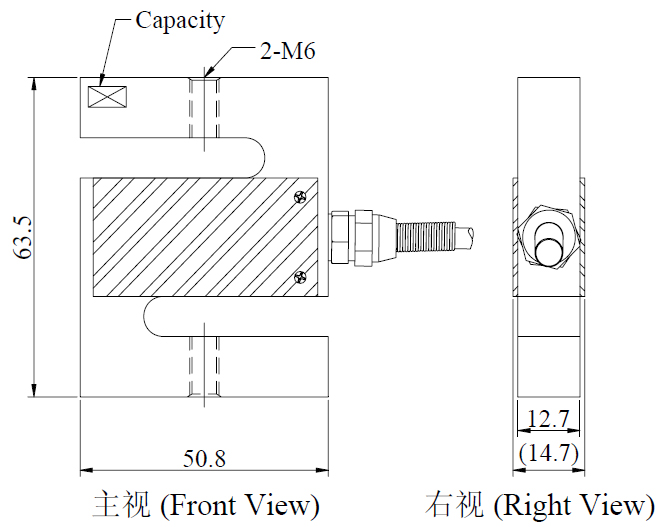

DimensionS type load cell NS7

NS7 Specification

Rated Capacities

1020 (kg)

Rated Output

2.0 mV/V±0.25%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

Operating Temperature Range

-20~60

Construction

Aluminum  Alloy

Protection Class

IP66 / IP67

Cable

φ5×2 m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
