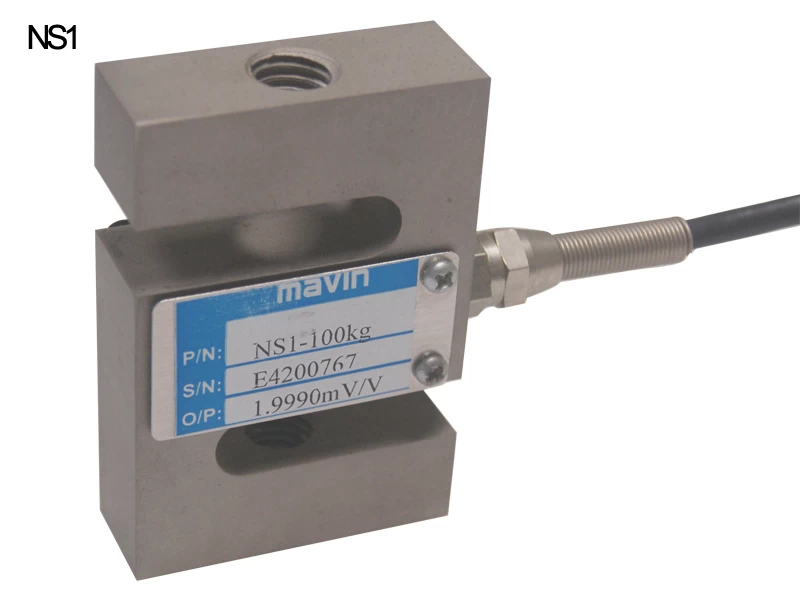

Steel Alloy S Beam Tension Load Cell NS1

S Beam Load Cell NS1 offers a compact design for platforms, silos, or scales. The tension Load Cell has a wide range of capacities from 100kg to 1000kg, comes in steel alloy construction.


  • Protection ClassIP67 / IP68
  • Rated Output2.0 or 3.0mV/V
  • Dimension76*50.8*23mm
  • MaterialSteel Alloy
  • Capacities50-1000kg

Alloy steel Tension Load Cell NS1 (100-1000 KG)

S Beam Load Cell NS1 offers a compact design for platforms, silos, or scales. The tension Load Cell has a wide range of capacities from 100kg to 1000kg, comes in steel alloy construction.


Key Features

Low profile

Alloy steel construction with nickel plated treatment
Capacity: 50-1000 KG

Easy to install, stable & reliable


Usage & Applications
Hopper scales
Crane scales

Tension control and machine testing

Batching systems, blending & mixing systems, belt scales,etc

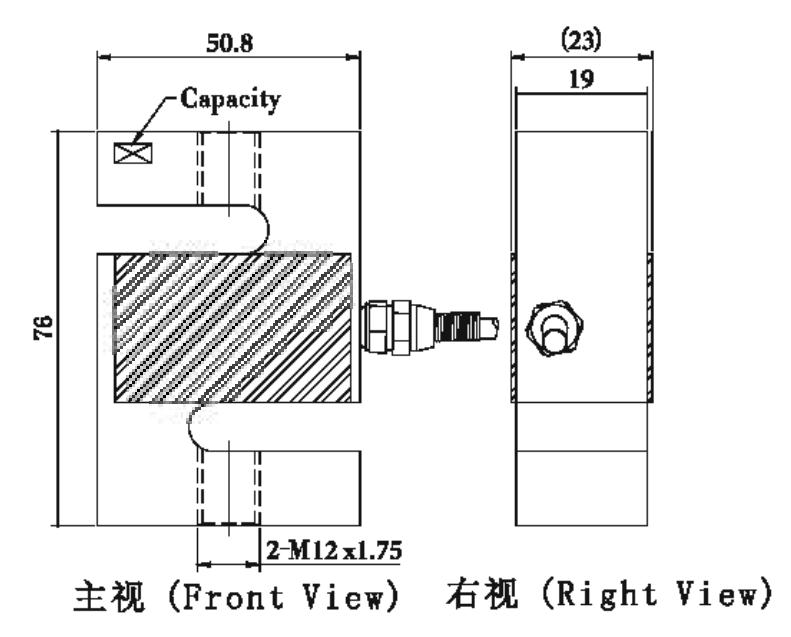

Dimension

S type NS1

NS1 Specification

Rated Capacities

100200250300500750, 1000(kg)

Rated Output

2.0 mV/V±0.25%3.0 mV/V±0.25%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

Operating Temperature Range

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ5×3 m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,
Green
SIG+,WhiteSIG-
