Aluminum Conductor Steel Reinforced ACSR cable

PRODUCTS KEYWORDS

ACSR cable, acsr bare conductor, aluminum conductor steel reinforced cable, acsr aerial cable.

PRODUCTION APPLICATION

Hante brand Aluminum Conductor Steel Reinforced ACSR cable, ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium. ACSR conductor is available in a range of steel strengths varying from 6% up to 40%. The higher strength ACSR conductors are used for river crossings, overhead earth wires, and installations involving extra long spans. Against any given resistance of conductor, ACSR conductor may be manufactured to have different tensile strengths as per requirement. The principal advantage of these
conductors are their high tensile strength and light weight, covering longer spans with less supports. Due to the greater diameter of an ACSR conductor much higher corona limit can be obtained, giving a big advantage on high and extra high voltage overhead lines.

PRODUCTION FEATURES

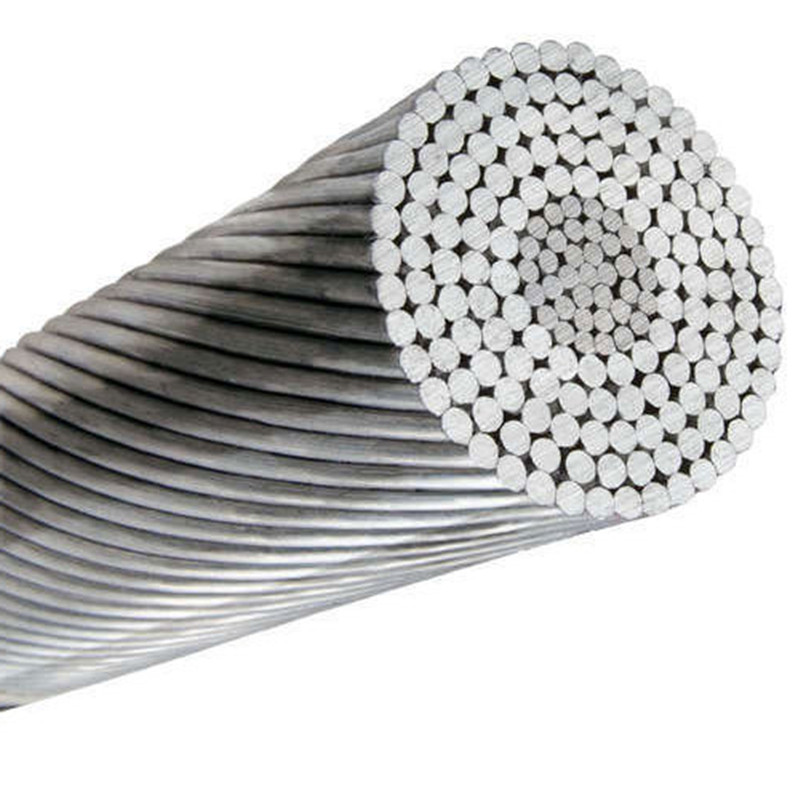

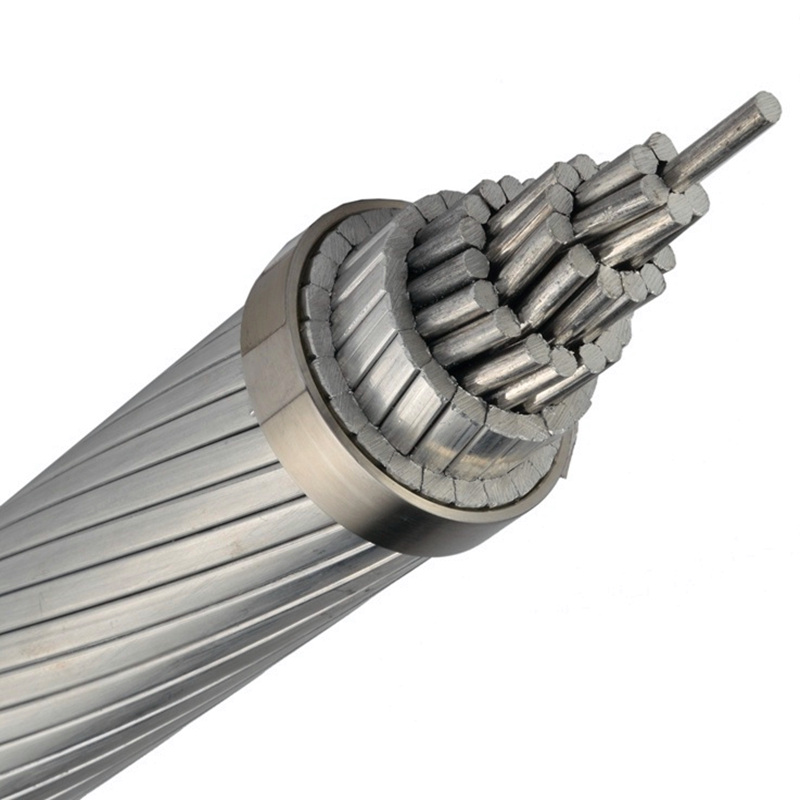

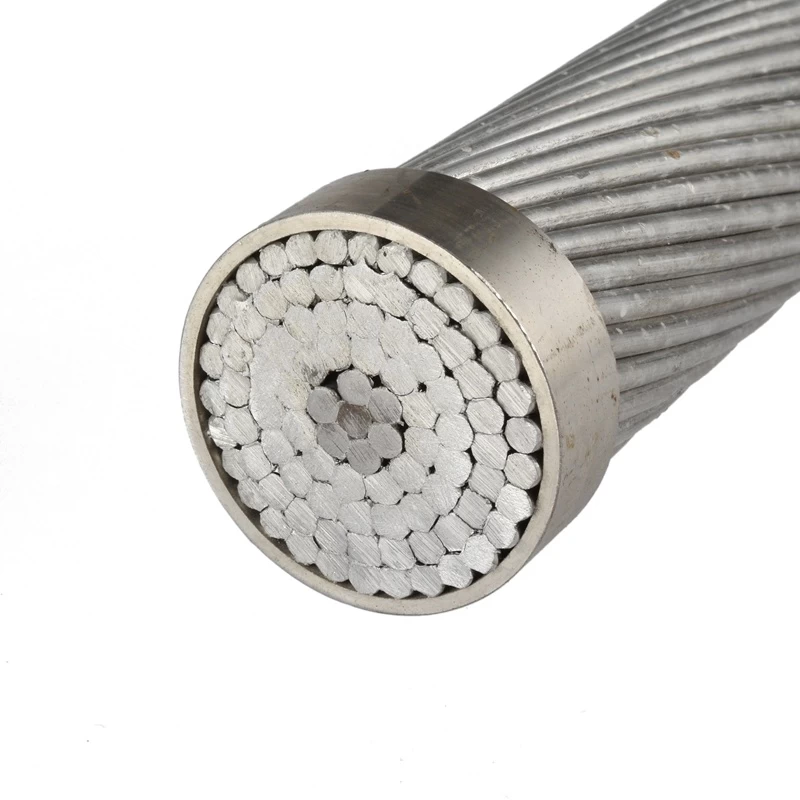

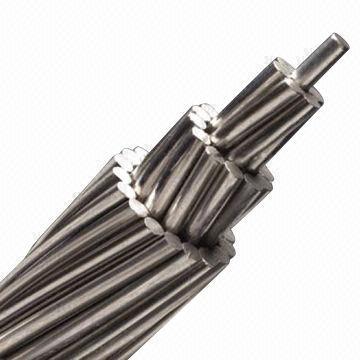

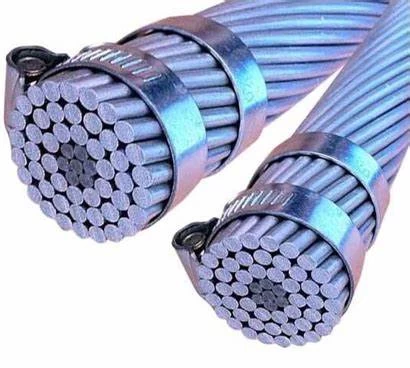

Aluminum Conductor Steel Reinforced ACSR cable, which is suitable for overhead transmission lines. Inside it is a steel "core", and outside it is wound around the steel core by means of aluminum wires. Steel core mainly plays the role of increasing strength, aluminum wire mainly plays the role of transmitting electric energy.

Aluminum Conductor Steel Reinforced ACSR cable, has the characteristics of simple structure, easy erection and maintenance, low line cost, large transmission capacity, and is conducive to crossing rivers and valleys and other special geographical conditions of the laying, with good electrical conductivity and enough mechanical strength, tensile strength, tower rod distance can be enlarged. Therefore, it is widely used in the overhead transmission and distribution lines of various voltage levels.

PRODUCTS STRUCTURE

---Conductor Material

   Aluminium alloy conductor.

---Insulation Material

   Non-insulation

---Sheath Material

   Non-sheath

---Core Number

    Single core, 1C.

---Working Temperature

   -0℃～+70℃.

---Installation Temperature

    0℃ ～+40℃

---Minimum Bending Radius

    20 x Overall Diameter.

---Production Standard

    GB/T 1179-2008, GB/T 14049-2008, IEC 61089, BS 215, ASTM B-231, ASTM B-232.

---Product Packing

    Wooden drum.

---Product MOQ

   10000 meters.

---Production Delivery

   Within 10-20 working days as soon as we received the deposit.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
