Aluminum Material Two Cars Solar PV Garage Canopies Structures

The solar parking canopy bracket system is suitable for parking lot solar photovoltaic project and high ground clearance or extremely strong wind area project.



Aluminum Material Two Cars Solar PV Garage Canopies Structures

The solar parking canopy bracket uses all aluminum anodizing material, beautiful appearance, make full use of the land, protect the car from the sun, wind, rain, snow damage. The patented short foundation design can be used to solve the limited space of the existing parking lot.

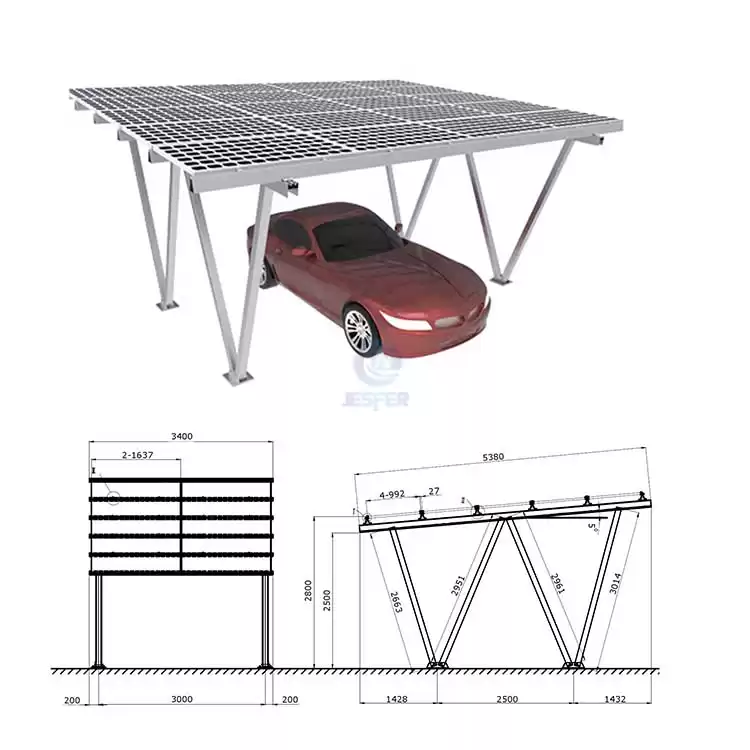

System Structure

Residential Solar Carport Structure



Technical Parameters

 Installation Site
 Ground or Flat Rooftop Panel Layout
 Landscape or Portrait
 Foundation
 Concrete Foundation or Ground Screw
 Material
 Anodized AL6005-T5
 Tilt Angle
 5-15degrees
 Fastener
 SUS304 &Zinc-Nickel Alloy Electroplated Steel
 Snow Load
 1.2KN㎡
 Color
 Customized or Silver
 Wind Load  60ms  Design Standard
 ANNZS1170,DIN1055,JIS C8955,etc.
 Applicable Solar Module
 Framed or Frameless
 Warranty
 10 Years
 Ground Clearance 2000mm+  Small Components  Anodized AL-6005-T5


Components Details

Conical Symmetric Cross Beam

Specification:L*58*90

Length :3100mm,4100,5100mm



Splice for Conical Symmetric Rail

Specification:L260MM

Components:Hexa Self-Tapping Screw  ,With EPDM Washer ST6.3*19


  Secondary Beam

Specification:L*66*90

Material:AL6005-T5 (Anodized)

Downward Module Clamp Kit

Components:Landscape Clamp W45 ,Secondary Beam Clamp

Spring Washer M8,Hexagon Bolt M8*20


solar structure factoryC Clamp Kit

Components:C Clamp, Cross Module,Spring Washer M8

Hexagon Socket Bolt


Corrugated T Anchor Plate Kit

Components:Corrugated Gasket,Corrugated T Plate

Hexagon Bolt Kit

Material:AL6005-T5(Anodized )

Water Chanel

Material:AL6005-T5(Anodized)



Installation Guide

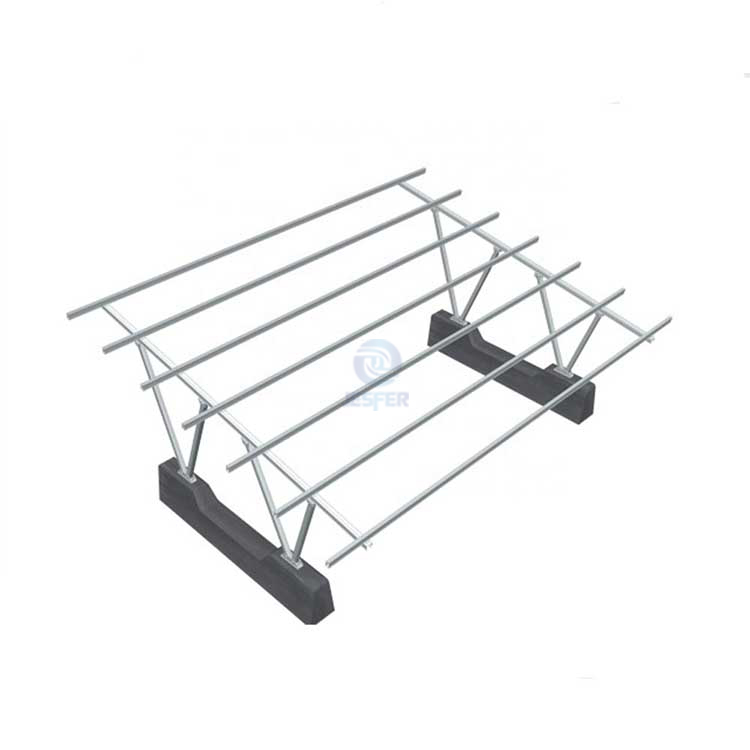

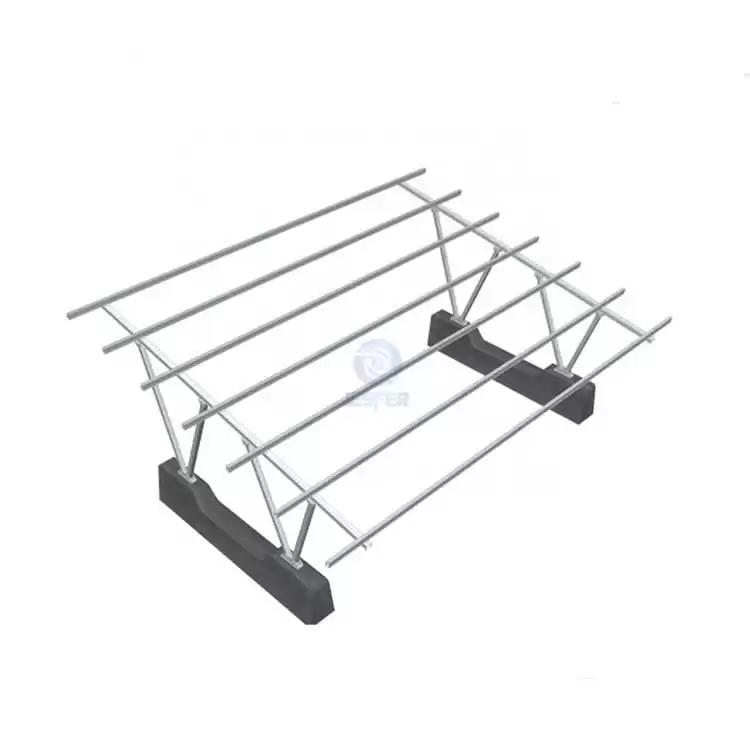

Solar Car Canopy Mounting

1.Grout the bolt embedded on the concrete foundation based on project solution.

2.Fix Corrugated T Anchor Plate Kit on the concrete foundation.

3.Connect the Pre-assemble Support with the Anchor Plate Kit on the concrete foundation.

4.The installation of Pre-assemble Support is done.

5.Install beam.

6.The installation of beam is done.

7.Fix the solar module with Inter Clamp Kit & End Clamp Kit.

8.Installation is done.


Free Design Service

We provide free customized design service for Solar Canopy Mounting

1.The dimension of the solar panel: _________(Length*Width*Thickness)

2.How many solar panels do you plan to install for the project?______pcs.

3.What is the tilt angle for solar panel?: _______degree.

4.Could you pls give us the layout of solar panel array? if not, pls tell us the size (Length and Width) of your installation site?

5.How tall is the lowest height from the solar panel to the ground? _______mm

6.What installation orientation for solar panel?_______(Horizontal or Vertical).

7.What's wind speed and snow load?___ms anit-wind speed and____KNm2 snow load.

8.Which foundation you need for your coming ground mounting system? ______( ground screwconcretepilepole )

If you can, plese tell me Latitude and longitude of your installation site.


Our Service

We always provide our clients with excellent service, quality and competitive pricing, with Solar Power Canopy of superior design and functionality.
