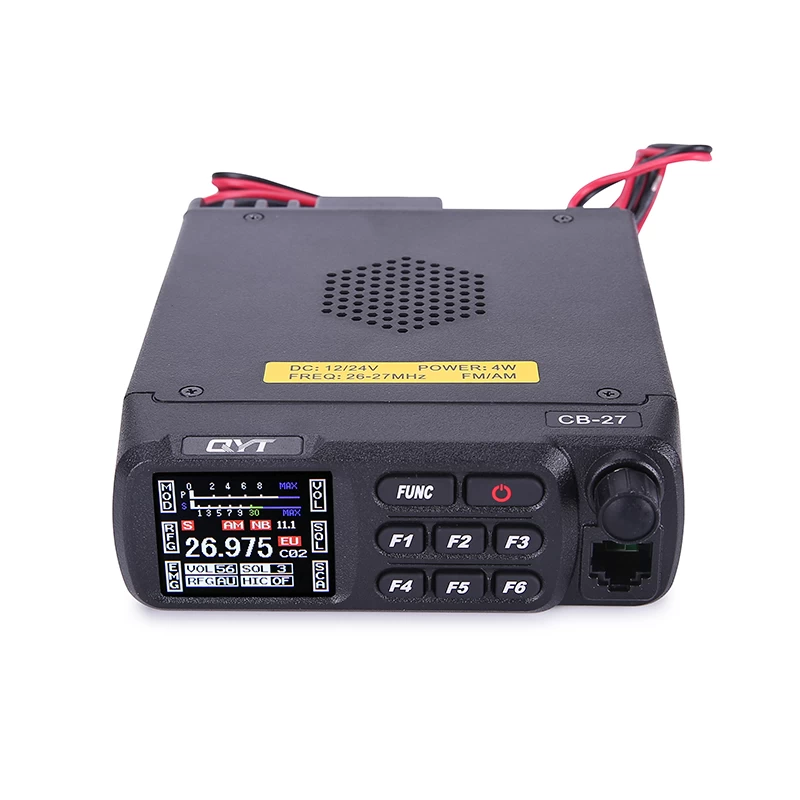

1.CB27 have mini size with color screen used aluminum housing for better thermal dispersion.
2.CB27 can be connected to 12V and 24V power supply, suitable for cars, trucks, ships, etc.
3.The communication method of citenzen band radio is different from VHF and UHF, the sign of CB radio sent to the ionosphere then reflected back to the ground, ground reflected back to ionosphere. Through countless reflections to realize transmission.

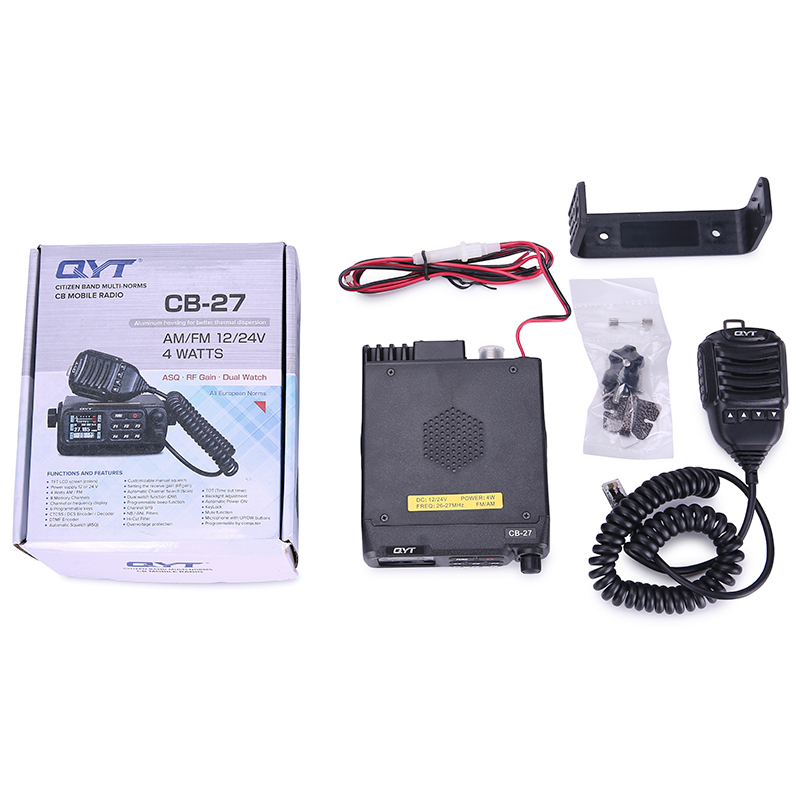

The CB27 Kit includes:
-
Radiostation
-

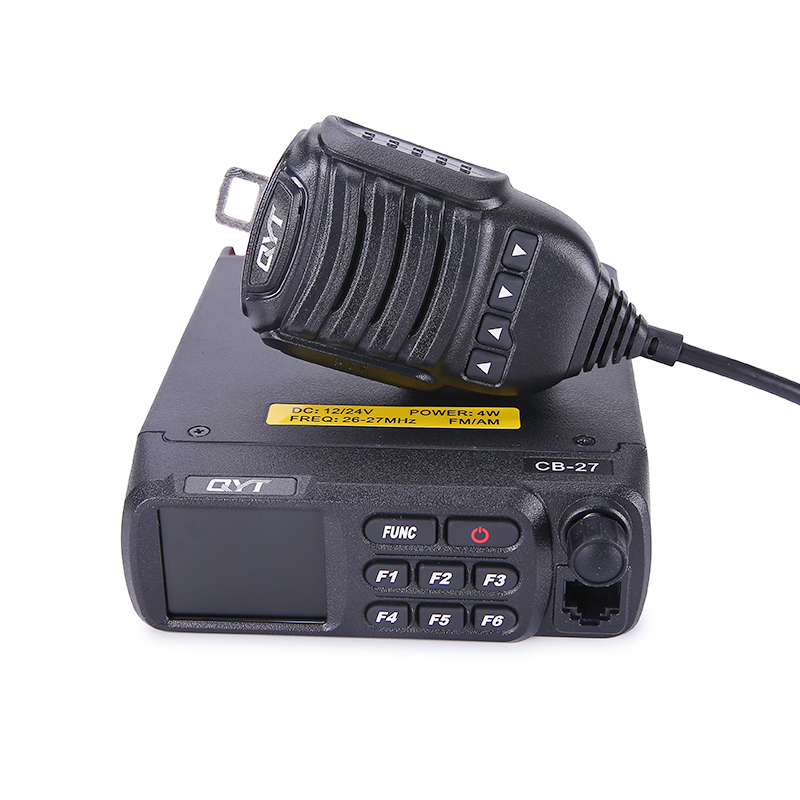

Microphone
-
DC power cable
-
Mobile mounting bracket
-
Mounting hardware
-
User's manual
|
General Specifications
|
|
Modulation Mode
|
AM/FM
|
|
Frequency Range
|
26.965-27.405MHz
|
|
Frequency Tolerance
|
±5.0ppm
|
|
Input Voltage
|
12/24V
|
|
Dimensions (in mm)
|
122(W) *158(D) * 44(H)
|
|
Weight
|
660g
|
|
Frequency Control
|
PLL Synthesizer
|
|
Operating Temperature Range
|
-20℃ ~+55℃
|
|
Current Drain
|
Transmit
|
2A MAX
|
|
Receive
|
Squelched 0.3A
|
|
VOL Max
|
0.8A
|
|

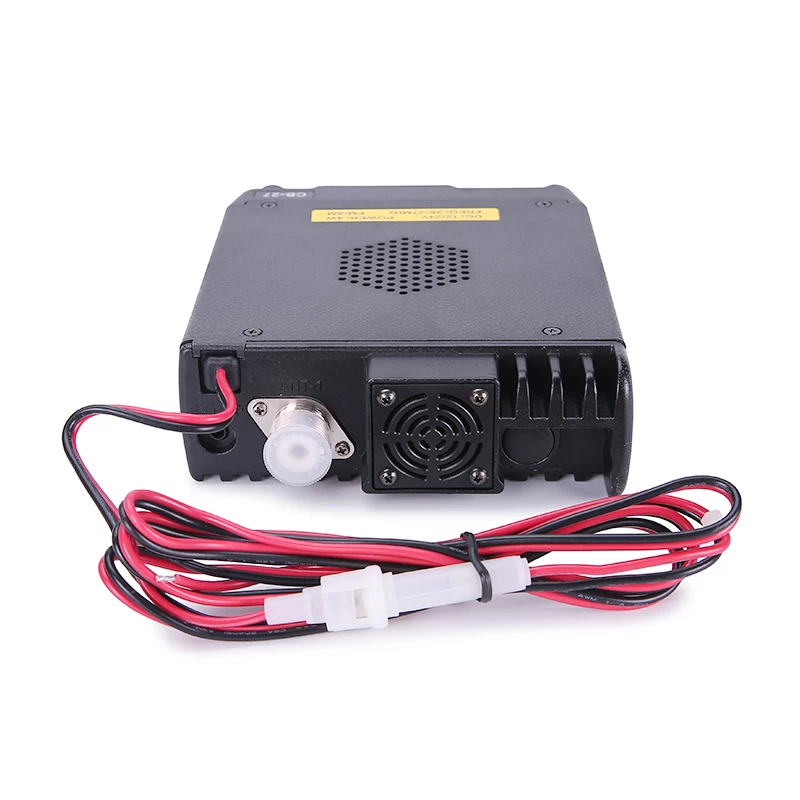

Antenna Connector
|
UHF, SO-239
|
|
Receive(ETSI EN 300 086 Standarddized.Test))
|
|
Sensitivity
|
Less than 1uV for 10dB(S+N)/N
|
|
Image Rejection
|
70dB
|
|
Adjacent Channel Rejection
|
60dB
|
|
IF Frequencies
|
1st 10.695MHz
|
|
2nd 455KHz
|
|
Automatic Gain Control(AGC)
|
Less than 10dB change in audio
|
|
Output for inputs from 10 to 50000uV
|
|
Squelch
|
Less than 1uV
|
|
Audio Output Power
|
3 Watt into 8 ohms
|
|
Frequency Response
|
300-3000Hz
|
|
Transmit(ETSI EN 300 086 Standarddized.Test)
|
|
Power Output
|
4Watt AM/ FM
|
|
Transmission Interference
|
Inferior to 4nW(-54dBm)
|
|
Frequency Response
|
300-3000Hz
|
|
Modulated signal distortion
|
Inferior to 5%
|
|
Output Impedance
|
50 ohms
|
