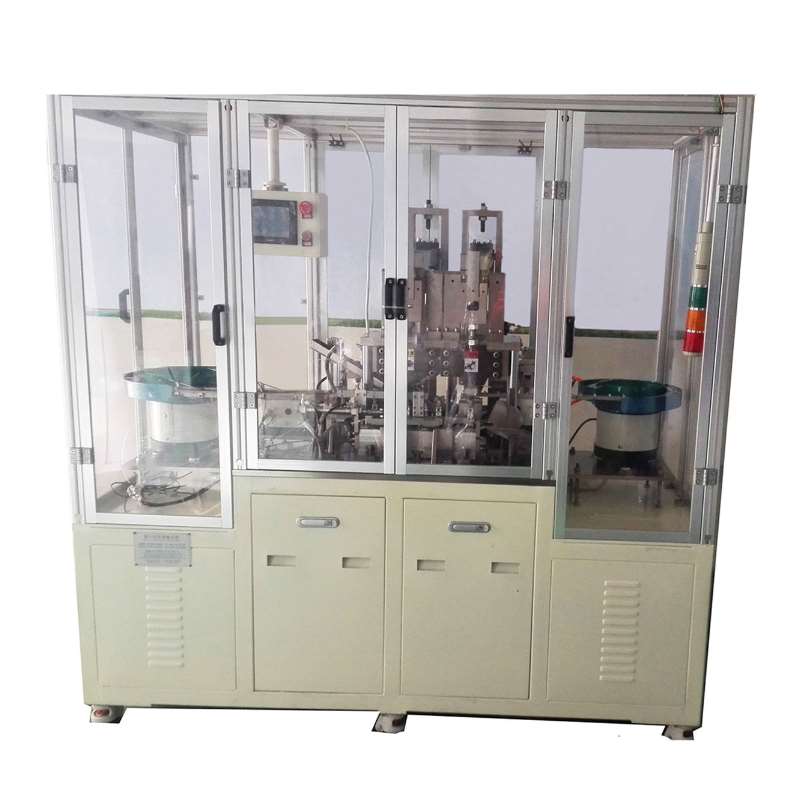

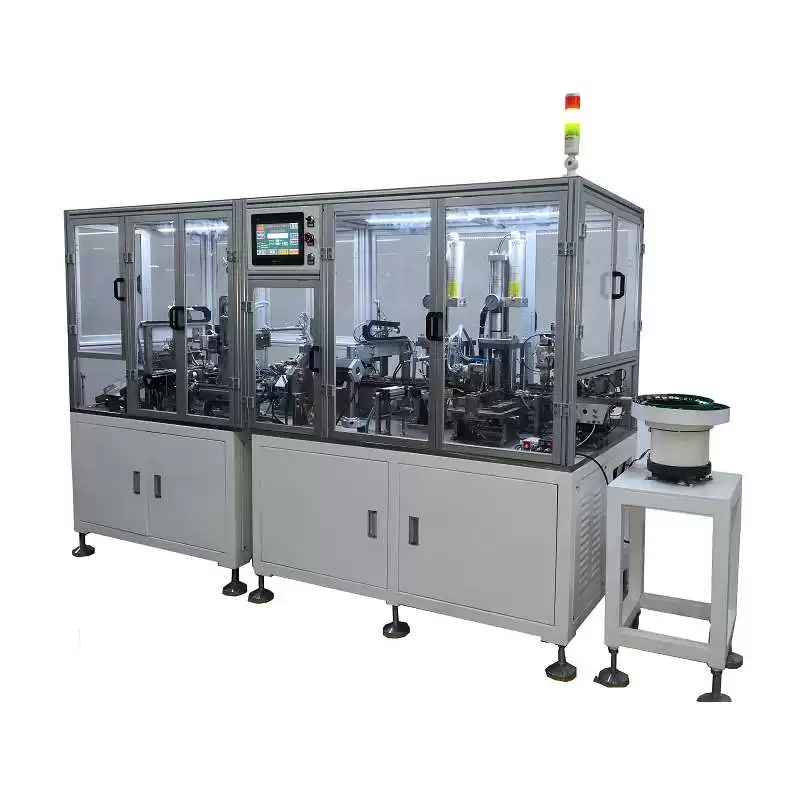

American Type Hose Clamp Assembly Machine
Our American Type Hose Clamp Assembly Machine makes the occlusal groove on the steel belt penetrated and formed by hollow punching. There are two types of grooves: rectangular hole and willow hole. The worm gear screw and screw thread on the hose clamp embedded in the groove. The screw is commonly used to tighten the diameter of the hose clamp steel band to lock the target.

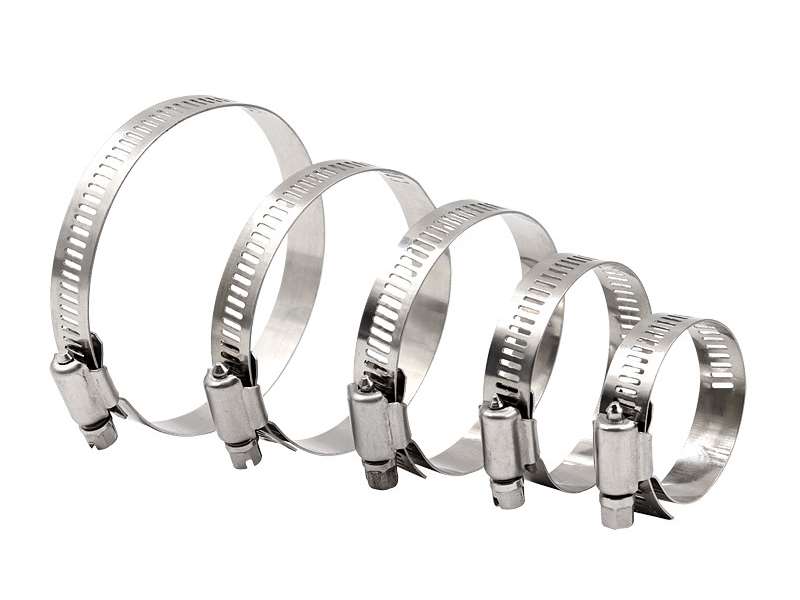

The hose clamp is widely used in the hose connection of automobile pipelines, water pumps, fans, food machinery, chemical machinery and other industries.
Products Features：
1. The linear structure is simple and easy to install and maintain.
2. Operating parts adopt parts of world famous brands.
3. Highly automated and intelligent operation, no pollution.
Technical Parameters:
|
Product name
|
Automatic American Type Hose Clamp Assembly Machine
|
|
Size
|
2600mm(L)*1200mm(W)*1800mm(H)
|
|
Weight
|
1 Ton
|
|
Work Area
|
5000mm(L)*3000mm(W)
|
|
Power
|
Single-phase power 115v，60Hz （ANSI electric standards）
|
|
Pressure
|
0.5Mpa-0.7Mpa （72.5-101.5 PSI）
|
|
Free Twisting Force
|
0.8-1.3N/M (7.08-11.505 in/ibs)
|
|
Destructive Twisting Force
|
more than 13.56N/M (120 in/ibs)
|
|
Equipment Failure Rate
|
less than 0.5%
|
|
Efficiency
|
1000pcs/hour
|
|
Warranty Period
|
one year
|
|
Additional Serves
|
Professional technology training
|
|
Brand of Main Parts
|
SMC Japan, SIEMENS Germany, Panasonic Japan, Keyence Japan, Schneider France, BASLER Germany,
|
Application:
