What is an Amorphous C-Core?

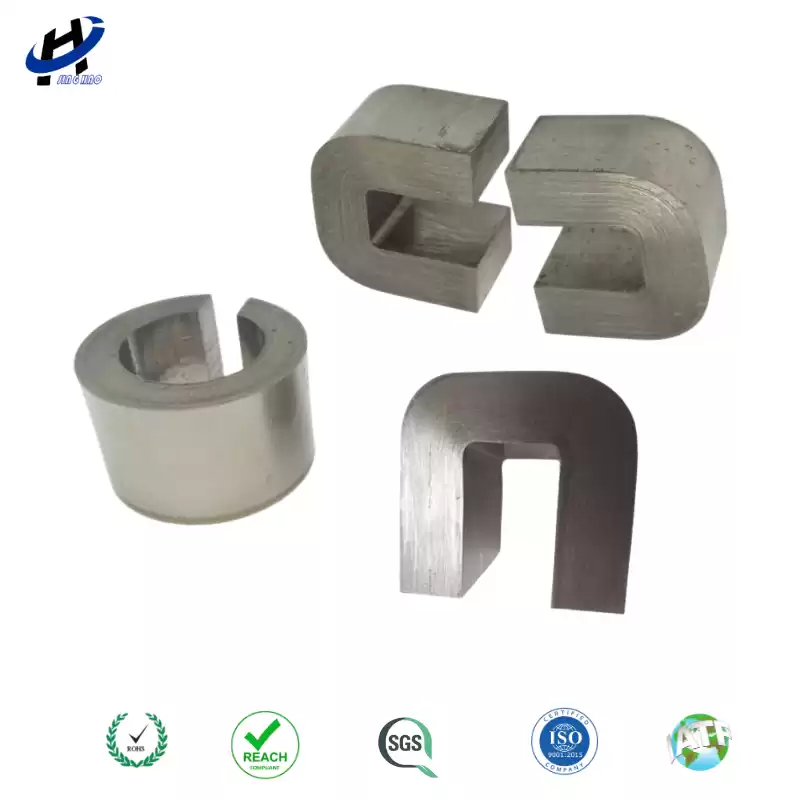

Our Amorphous C-Core is a high-performance magnetic core made of iron-based amorphous alloy, precisely shaped into a “C” profile. It’s optimized for power electronics filters, especially solar inverter output inductors and EMI suppression chokes. Amorphous materials offer a non-crystalline structure that delivers high permeability, elevated saturation flux, and significantly reduced core loss—critical advantages in inverter applications.
Specifications
| Saturation flux density induction |
1.56T |
| Permeability @ 10KHz |
>5000 |
| Curie temperature |
410 °C |
| Stacking factor |
0.8 |
| Resistivity |
130 μΩ.cm |
| Working Temperature |
-40 ~ 130°C |
| Density |
7.18 g / cm3 |
| Ribbon Thickness |
30 μm |
| Core shapes |
Cutting Core |
| Finish |
Coating / Casing / Bare / Tape |
Key Features
-
High Saturation Flux (≈1.56 T)
Enables compact core designs, reducing size and weight by minimizing the required magnetic volume.
-
Ultra-Low Core Loss at High Frequency
Ideal for 20–100 kHz inverter switching ranges, offering efficient performance and lower thermal stress.
-
Form Factor & Coil Winding Ease
Rectangular “C” shape accommodates tight winding, simplifies coil placement, and supports higher fill-factors—no additional sleeving required.
-
Air-Gap for Bias Immunity
Built-in air gap ensures excellent DC-bias handling, preventing early saturation under high current conditions.
-
Broad Thermal Stability
Reliable operation from –55°C to +130°C with low temperature-induced loss changes.
Typical Applications
-
-
-
Output Filters & Inductors: Reduces ripple and smooths inverter output, with excellent performance at high switching frequencies.
-
EMI Chokes (Common and Differential Mode): High μₑ suppresses electromagnetic noise across a broad frequency band.
-
PFC & Medium-Frequency Transformers: High saturation enables smaller, more efficient power-stage magnetics.
Custom Options
| Parameter |
Specification |
| Outer Dimensions |
16 ~400 mm |
| Core Material |
Fe-based Nanocrystalline / Fe-based Amorphous |
| Installation Type |
Customize |
| Inductance & Impedance |
Customizable upon request |
Customized sizes, inductance values, and coating types are available. Contact us for technical consultation and design support.

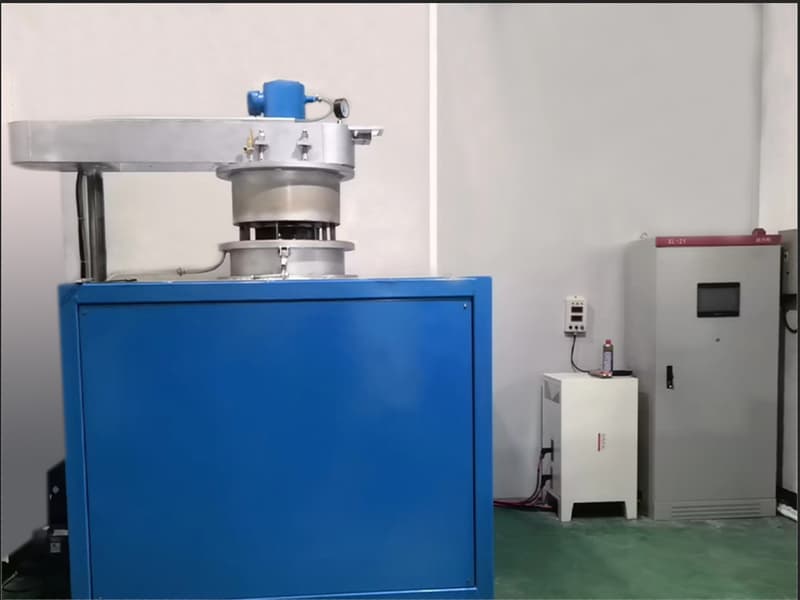

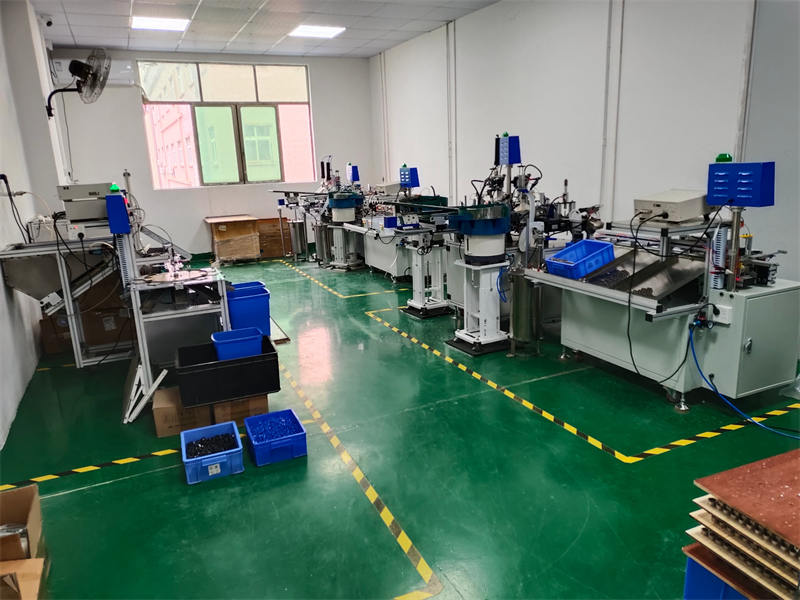

Why Choose Dongguan JH Amorphous Cores
-
Precision manufacturing with consistent quality
-
Space-saving design optimized for modern electronic systems
-
Rapid prototyping and flexible production scalability
-
Full compliance with RoHS/REACH environmental regulations
Certificates
Dongguan JH Amorphous, a leading professional one-stop amorphous cores manufacturer.
We offer magnet solutions from design to worry-free after-sales. Let talk about your distinct project now!
