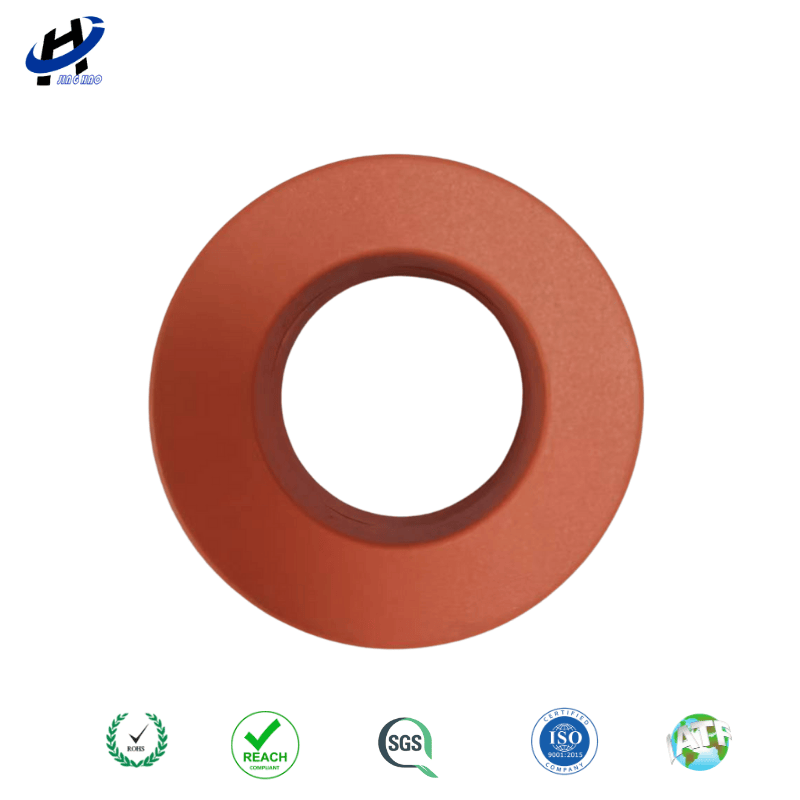

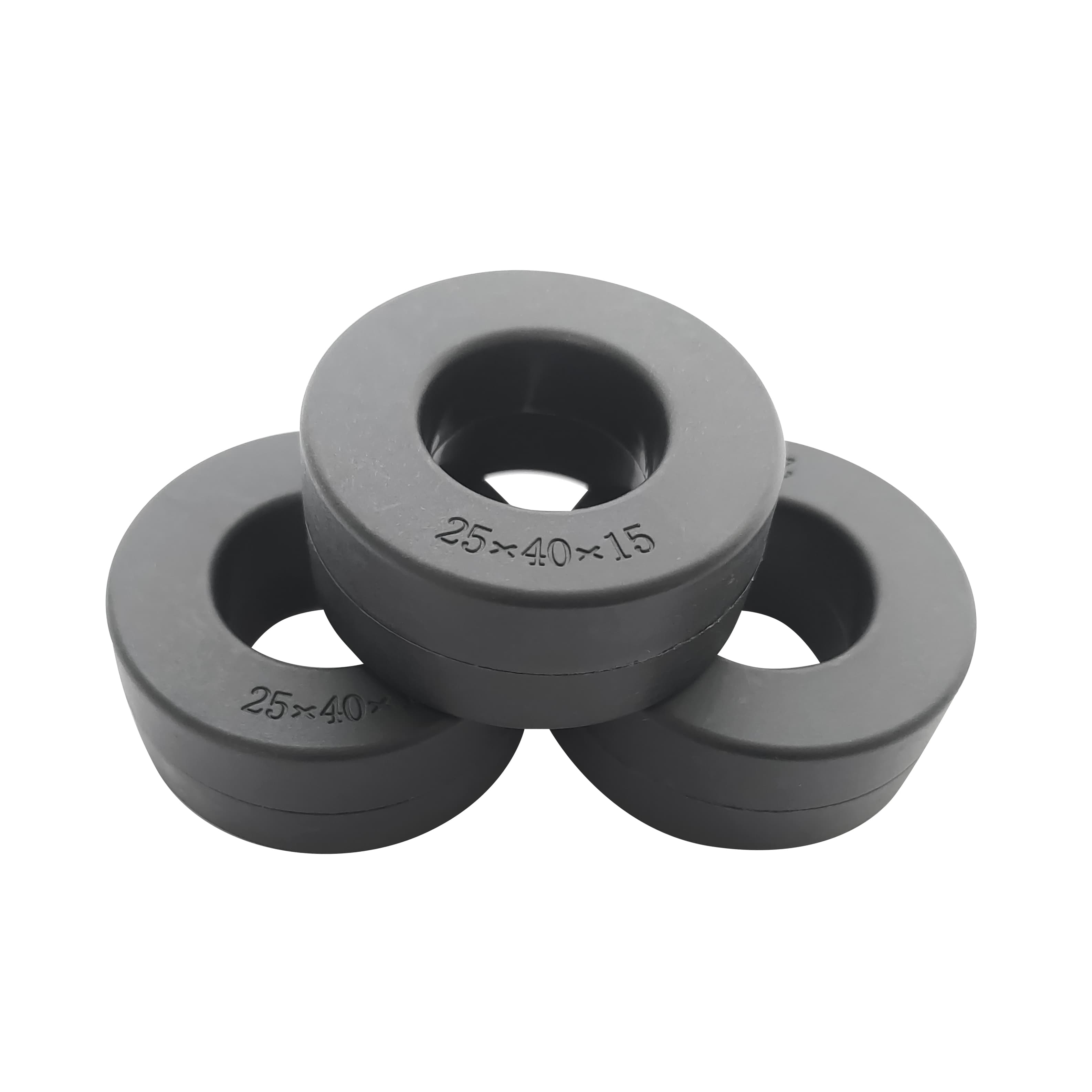

What Is an Amorphous Core for PFC Inductors?
Dongguan JH Amorphous provides iron-based amorphous cores for PFC inductors in power electronics such as inverters, switching power supplies (SMPS), and uninterruptible power supplies (UPS). These amorphous cores feature ultra-low core loss, high initial permeability, and excellent thermal stability, making them perfect for applications requiring high-efficiency power conversion.
Amorphous materials exhibit a non-crystalline structure that offers significantly reduced energy loss compared to traditional crystalline materials, especially at high frequencies. This provides lower temperature rise, smaller component size, and better system performance over a wide range of operating conditions.
With a saturation flux density (Bs) of 1.56 T and a Curie temperature of 410°C, these cores can handle high currents and operate reliably even in high-temperature environments (up to +120°C).
Material Characteristic
| Saturation flux density induction |
1.56T |
| Permeability @ 10KHz |
>5000 |
| Curie temperature |
410 °C |
| Stacking factor |
0.8 |
| Resistivity |
130 μΩ.cm |
| Working Temperature |
-40~ 140°C |
| Density |
7.18 g / cm3 |
| Ribbon Thickness |
30 μm |
| Core shapes |
Cutting Core |
| Finish |
Coating / Casing / Bare / Tape |
Key Features
-
High Saturation Flux Density
With a saturation flux density of 1.56 T, the amorphous core allows for compact designs while maintaining high inductance values, making it ideal for power factor correction circuits.
-
Low Core Loss
Amorphous cores provide low core loss at high frequencies (e.g., under 2–3 W/kg @ 100 kHz), reducing energy wastage and improving system efficiency, which is crucial for power electronics in PFC applications.
-
Wide Operating Temperature Range
These cores can operate efficiently in a wide temperature range from –50°C to +120°C, ensuring reliable performance in industrial and automotive applications.
-
High Electrical Resistivity
The cores exhibit a high electrical resistivity of 130 μΩ·cm, significantly reducing eddy current losses, which is crucial for improving efficiency in high-frequency switching applications.
-
Superior Thermal Stability
The amorphous structure ensures minimal degradation even in high-temperature environments, providing long-term stability and reliability for PFC inductors.
-
Low Magnetostriction
This minimizes mechanical noise and vibration, making them suitable for noise-sensitive applications, such as in medical devices and consumer electronics.
Ideal for PFC Inductor Applications
-
Switching Power Supplies (SMPS)
Improve power conversion efficiency, reduce size, and enhance EMI suppression.
-
Uninterruptible Power Supplies (UPS)
Provide stable output and ensure uninterrupted power supply for critical systems.
-
Solar Inverters
Improve DC to AC power conversion, increasing efficiency and reducing energy losses.
-
Electric Vehicle (EV) Chargers
Enhance power factor correction in EV chargers, improving charging efficiency and reducing energy wastage.
-
Industrial Equipment
Used in motor drives, UPS systems, and industrial automation, reducing electromagnetic interference and improving system reliability.
Custom Options
| Parameter |
Specification |
| Outer Dimensions |
16 ~400 mm |
| Core Material |
Fe-based Nanocrystalline / Fe-based Amorphous |

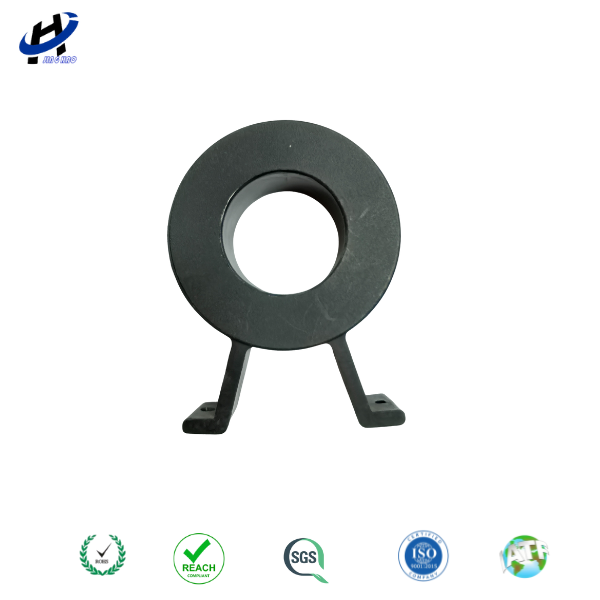

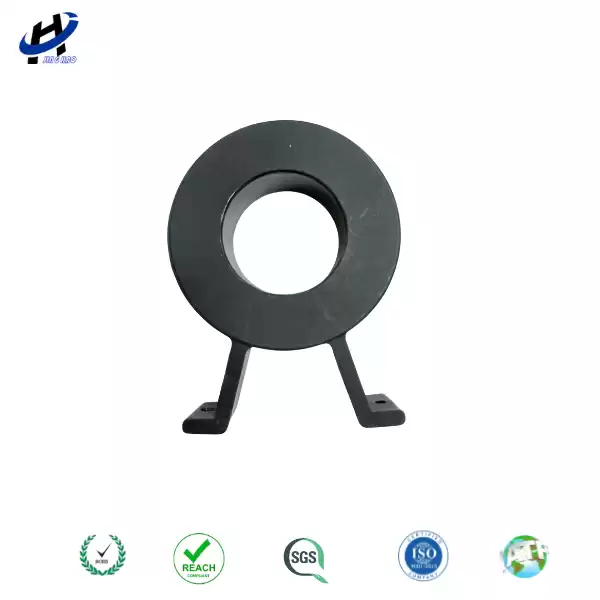

| Installation Type |
Customize |
| Inductance & Impedance |
Customizable upon request |
Customized sizes, inductance values, and coating types are available. Contact us for technical consultation and design support.
Why Choose Dongguan JH Amorphous Amorphous Cores
-
Precision manufacturing with consistent quality
-
Space-saving design optimized for modern electronic systems
-
Rapid prototyping and flexible production scalability
-
Full compliance with RoHS/REACH environmental regulations
