Angular Globe Register Fire Hydrant Angle Valve

JY brand 45° Angular Globe Register Fire Hydrant Angle Valve  is a PN16-compliant fire protection component made of ductile cast iron, featuring 2-1/2" size, 1.6 Mpa working pressure, and threaded outlet, designed for reliable water flow control in commercial, industrial and general building fire hydrant systems.



Product

 Description

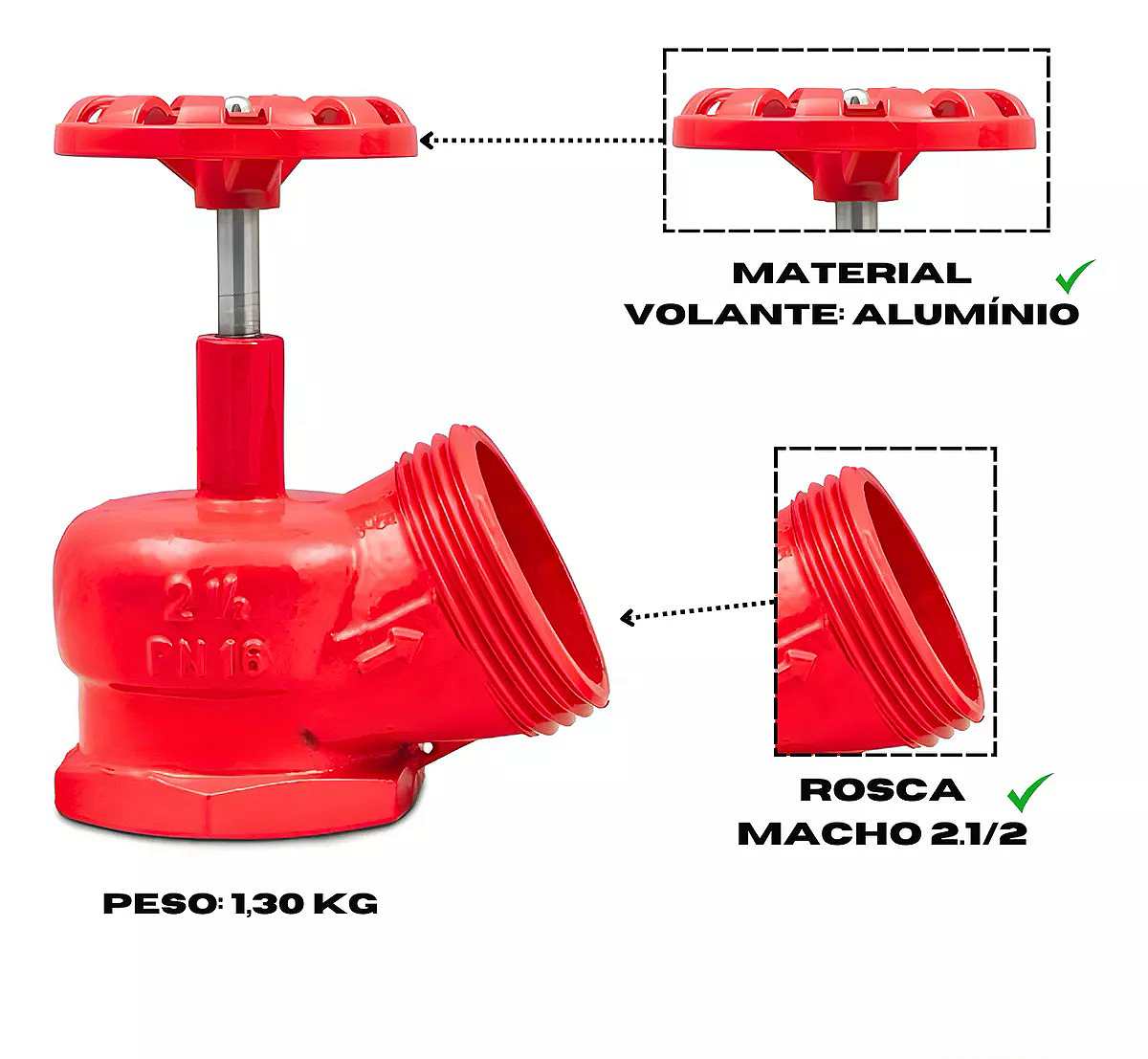

The 45° Angular Globe Register Fire Hydrant Angle Valve (BRAZIL Series) under JY brand is a professional fire protection device tailored for efficient and secure water flow management in fire hydrant systems. Adopting high-quality ductile cast iron as the body material and aluminum for the steering wheel, it balances durability and easy operation—ductile cast iron ensures resistance to impact and corrosion, while aluminum makes the steering wheel lightweight for quick opening/closing during emergencies.

Compliant with PN16 pressure standards, this valve meets all essential requirements for hydrant valves, and its cost-effective manufacturing material offers excellent performance without excessive expense. It is designed with a 2-1/2" nominal diameter and a threaded outlet, which allows easy connection to firefighting hose adapters or protective plugs, ensuring seamless integration into existing fire safety systems. Inside the valve, a sealing disc mounted on a seat is driven by a stem to fully open or close the water passage; additionally, the new design with extra threads at the inlet end enhances the overall sealing performance, making the valve resistant, reliable and robust. Suitable for commercial establishments, industrial installations and general buildings, it is a key component to safeguard property and life in fire emergencies.

Features

  • Durable material combination: Ductile cast iron body (corrosion-resistant, impact-resistant) and aluminum steering wheel (lightweight, easy to operate).
  • PN16 compliance: Meets all necessary hydrant valve requirements, ensuring safe and stable operation under standard working conditions.
  • Convenient connection: Threaded outlet for easy coupling with firefighting hose adapters or protective plugs.
  • Reliable sealing: Internal sealing disc driven by a stem realizes full opening/closing of water passage; extra inlet threads optimize sealing effect.
  • Cost-effective: High-performance with affordable manufacturing material, reducing overall procurement costs.
  • Versatile application: Suitable for commercial, industrial and general building fire hydrant systems.

Product

 Parameters

Body Material  Ductile Cast Iron
Steering Wheel Material Aluminum
Norimal Diameter 2-1/2''
Working Pressure 1.6Mpa
Breaking Pressure 6.4MPa
Height 185mm(open)/160mm(close)
Length 137mm
Weight about 1.3KG

FAQ

Q: What’s the MOQ for your 45° Angular Globe Register Fire Hydrant Angle Valve?
A: 50 Pieces.
Q: Can you accept sample order for this BRAZIL Series Angle Valve?
A: Yes, we accept sample orders with a reasonable small charge. Customers need to pay the sample fee and transportation fee first.
Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.
Q: How can I get my order?
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q: Why choose your JY 45° Fire Hydrant Angle Valve?
A: Our valve uses high-quality ductile cast iron and aluminum materials, meets PN16 standards, and has reliable sealing and cost-effective advantages. We have rich experience in fire protection products, ensuring product quality; meanwhile, we provide flexible order support (MOQ 50 pieces) and professional after-sales service to meet your project needs.
