AOSIF 150KW 188kva Cummins diesel generator set
General feature: 50HZ/1500rpm
|
Genset Model
|
AC206-II
|
|
Prime Power
|
150KW / 188KVA
|
|
Standby Power
|
165KW / 206KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
230V/400V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
Manufacturer
|
Dongfeng Cummins Engine Co., Ltd.
|
|
Model
|
6CTA8.3-G2
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
----------------------------Standby power
|
180kw / 241HP
|
|
----------------------Base output power
|
163kw / 218 HP
|
|
-----------------------Continuous power
|
133kw /178HP
|
|
Air intake way
|
after-cooled, turbo-charged
|
|
Cylinder quantity
|
6
|
|
Bore * Stroke
|
114*135 mm
|
|
Displacement
|
8.3L
|
|
Fuel system
|
BYC PB/SEGMA electrical governor
|
|
Governor Regulation
|
≤3%
|
|
Low idle
|
700-900 rpm
|
|
Piston speed
|
6.8 m/s
|
|
Friction energy output
|
17 kw
|
|
Max. back pressure
|
10kPa
|
|
Diameter of exhaust pipe recommended
|
75mm
|
|
Maximum Static Supported Weight at the Turbocharger Outlet Flange
|
14N.m
|
|
Exhaust gas flow (prime power - standby power)
|
521-578 L/sec
|
|
Exhaust gas temperature (prime power - standby power)
|
536-563 ℃
|
|
Max. air intake resistance
|
|
|
Dirty Element
|
6kPa
|
|
Minimum Dirt Holding Capacity with Heavy Duty Air Cleaner
|
25g/cfm
|
|
Maximum Temperature Rise from Ambient to the Inlet of the Turbocharger
|
17 ℃
|
|
Recommended intake piping size (inner diameter)
|
75mm
|
|
Air intake flow (prime power - standby power)
|
192-206 L/sec
|
|
Normal oil pressure range
|
|
|
------------idle speed
|
103 kPa
|
|
------------governor speed
|
276-414 kpa
|
|
Max. oil temperature permitted in oil pan
|
121 ℃
|
|
Minimum required lube system capacity-sump plus filters
|
27.6L
|
|
Angularity of Standard Oil Pan: (Values stated are for intermittent operation only): (any direction)
|
45 °
|
|
Type Injection System
|
BYC PB direct injection
|
|
Maximum Restriction at Lift Pump
|
27 kPa
|
|
Maximum Allowable Head on Injector Return Line (Consisting of Friction Head and Static Head)
|
33.7 kPa
|
|
Maximum Fuel Inlet Temperature
|
71 ℃
|
|
Maximum Fuel Flow on the Supply Side of the Fuel Pump
|
193kg/hr
|
|
Coolant capacity – engine only
|
12.3L
|
|
Maximum Coolant Friction Head External to Engine
|
28 kPa
|
|
Maximum Static Head of Coolant Above Engine Crank Centerline
|
18.3m
|
|
Standard Thermostat (Modulating) Range
|
82-95 ℃
|
|
Min. opening pressure of radiator cap
|
69 kPa
|
|
Maximum Top Tank Temperature for Standby/Prime Power
|
104 / 100 ℃
|
|
Engine coolant flow (prime power - standby power)
|
3.3 L/s
|
|
Cranking Motor (Heavy Duty, Positive Engagement)
|
12V
|
|
Battery Charging System, Negative Ground
|
63A
|
|
Maximum Allowable Resistance of Cranking Circuit
|
0.00075 Ω
|
|
Gaseous Emissions per GB 20891-2007
|
|
|
Weight-Specific NOx
|
9.2 g/KW.h
|
|
Weight-Specific HC
|
1.3 g/KW.h
|
|
Weight-Specific CO
|
5.0 g/KW.h
|
|
Weight-Specific Particulates
|
0.54 g/KW.h
|
Alternator Data：
|
Manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Model
|
LSA46.2 M5
|
|
Output power
|
160KW
|
|
AVR model
|
R250
|
|
Number of phase
|
3
|
|
Power factor (Cos Phi)
|
0.8
|
|
Altitude
|
≤ 1000 m
|
|
Overspeed
|
2250RPM
|
|
Number of Pole
|
4
|
|
Exciter type
|
Shunt
|
|
Insulation class
|
H
|
|
Voltage regulation
|
±0.5%
|
|
protection
|
IP23
|
|
Totale Harmonic distortion THD (**)
|
no load < 2.5%
|
|
Totale Harmonic distortion THD (**)
|
on load < 2.5%
|
|
Wave form : NEMA = TIF
|
< 50
|
|
Bearing
|
single
|
|
Coupling
|
Direct
|
Genset Open Version Genset Soundproof Version

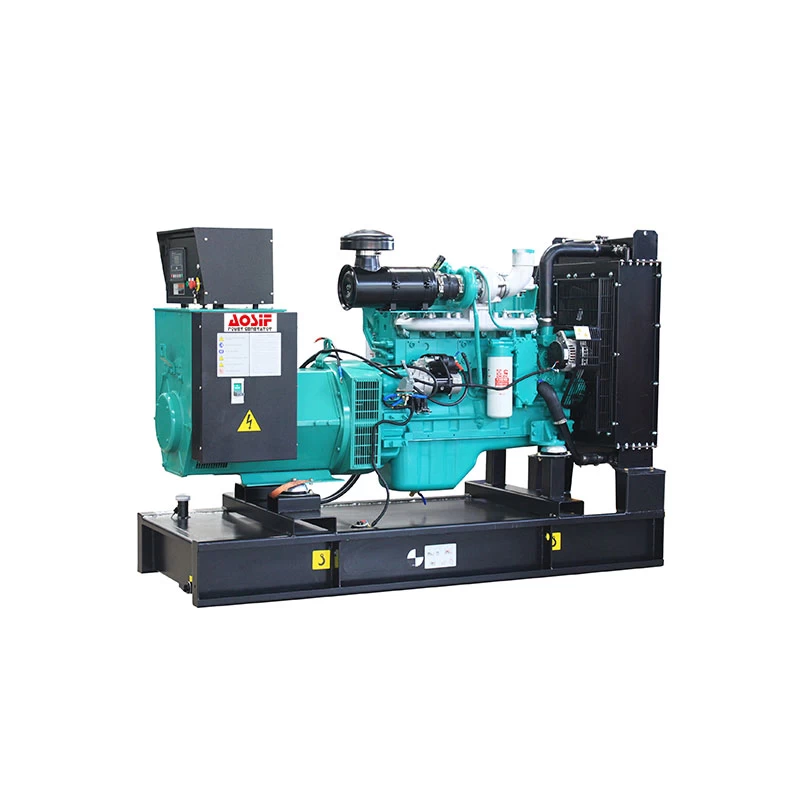

Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 2370×840 ×1560mm(L*W*H)
|
Overall size: 3200× 1100×1880mm(L*W*H)
|
Weight: 1730kg
|
Weight: 2270kg
|
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
