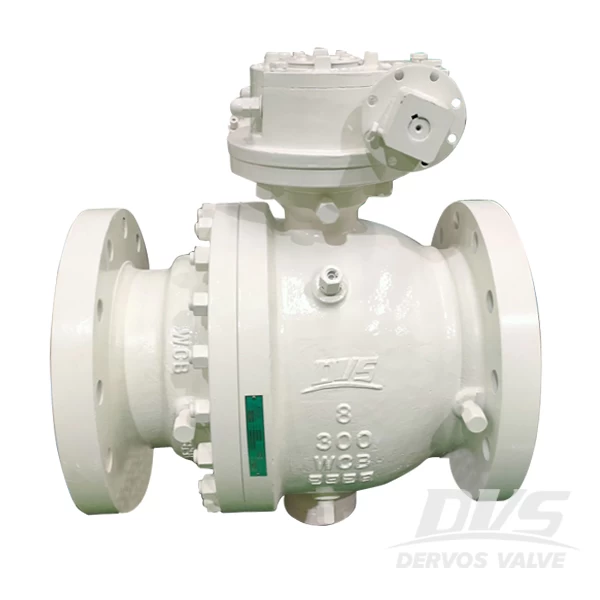

API 6D ball valve is designed with
trunnion mounted ball and full bore structure. The flanged ball valve has 300LB
design pressure and 8 inch nominal size with gearbox operation mode, conforming
to NACE MR0175 requirement.
Quick Detail
|
Type
|
Ball Valve
|
|
Size
|
8”
|
|
Pressure
|
300LB
|
|
Construction
|
Two-Piece Body,
Full Bore, Trunnion Ball
|
|
Connection
|
RF Flange
|
|
Operation Mode
|
Gearbox
|
|
Body Material
|
A216 WCB
|
|
Trim Material
|
Ball/Stem F6a, Seat RPTFE
|
|
Design & Manufacture
|
API 6D
|
|
Pressure & Temp Code
|
ASME B16.34
|
|
End to End
|
ASME B16.10
|
|
End Connection
|
ASME B16.5
|
|
Inspection
|
API 6D,
API 598
|
|
Temperature Range
|
-29℃~+200℃
|
|
Medium
|
Oil,
Water, Gas
|
Dervos Packing

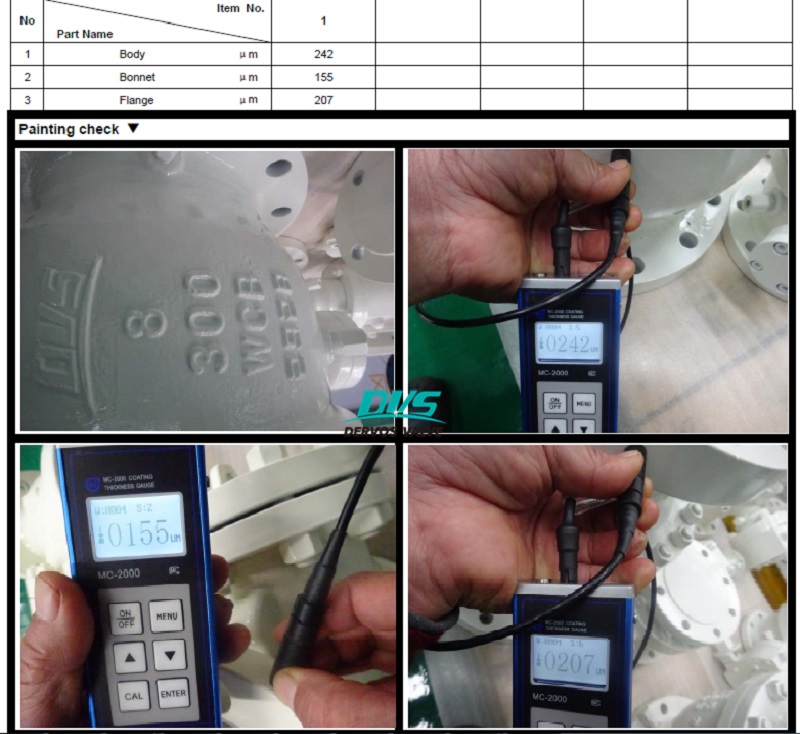

Painting Test & Report

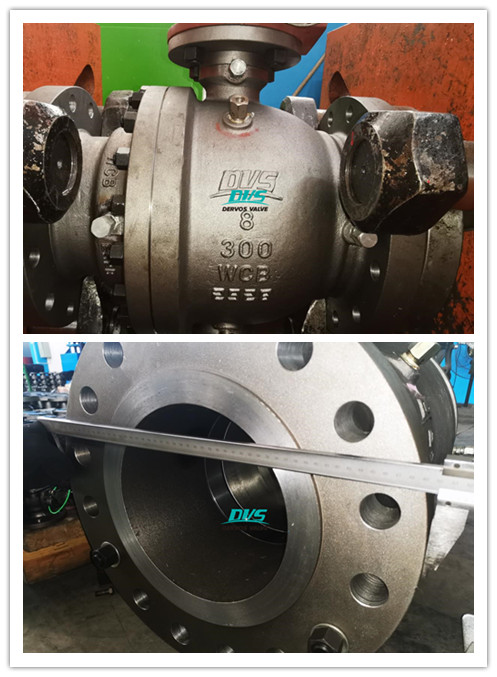

Pressure Testing & Dimension Checking
