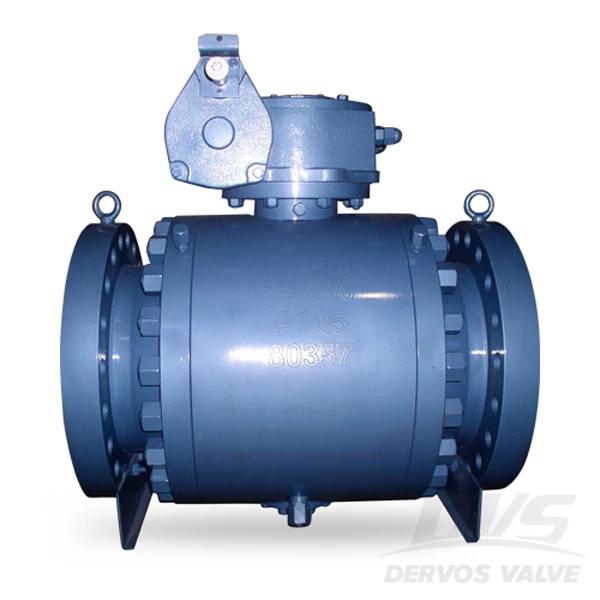

The 12 inch 600LB trunnion mounted ball valve has gearbox, RTJ flange, fire safe design per API 607. The 3 piece ball valve is designed per API 6D.
Design Feature & Benefit
1.Small flow resistance means less pressure drop
2.Simple valve structure and light weight
3.Diversified sealing material available, from metal material TCC, satellite, stainless steel to soft material PTFE, Teflon, Nylon, Peek and etc
4.Good performance of both metallic sealing and soft sealing
5.Convenient and swift operation of the valve
6.Easy to maintain due to renewable seat ring
7.When fully opened or closed, the valve sealing face is isolated from medium corrosion.
8.Wide range of application in terms of size and pressure rating
Quick Detail
|
Type
|
Ball Valve
|
|
Size
|
12"
|
|
Pressure
|
Class 600
|
|
Construction
|
Trunnion
Mounted Ball, Three-Piece Type, Side Entry
|
|
Connection
|
RF Flange
|
|
Operation
|
Gear
Operated
|
|
Body
Material
|
ASTM A105
|
|
Design &
Manufacture
|
API 6D
|
|
Pressure
& Temp
|
ASME B16.34
|
|
Face to Face
|
ASME B16.10
|
|
End
Connection
|
ASME B16.5
|
|
Test &
Inspection Code
|
API 598
|
|
Fire Safe
|
API 607
|
|
Temperature
Range
|
-29℃~+200℃
|
|
Medium
|
Water, Oil
and Gas
|
|
Origin
|
China
|
Material Specification
|
No
|
Part Name
|
Carbon
steel to ASTM
|
Stainless
Steel to ASTM
|
|
WCB
|
LCB
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
1
|
Underplate
|
WCB
|
LCB
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
2
|
Underplate Bolt
|
A193 B7
|
A320 L7
|
A193 B8
|
|
3
|
Trunnion
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
4
|
Body
|
A216 WCB
|
A352 LCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
5
|
Bonnet Nut
|
A194 2H
|
A194 4
|
A194 8
|
|
6
|
Bonnet Bolt
|
A193 B7
|
A320 L7
|
A193 B8
|
|
7
|
Cap
|
A216 WCB
|
A352 LCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
8
|
Gasket
|
SS Spiral Wound/graphite or
SS Spiral Wound/PTFE
|
|
9
|
Shaft Sleeve
|
SS/graphite
|
|
10
|
Seat Ring
|
RPTFE or POM
|
|
11
|
Ball
|
A105/Ep.Cr or F6
|
A182 F6
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
12
|
Seat
|
A105/Ep.Cr or F6
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
13
|
Spring
|
17-17PH(inconel for
NACE)Ni-cr Alloy
|
|
14
|
O-Ring
|
Viton
|
|
15
|
Stem
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
16
|
Sealing Cover
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
17
|
O-Ring
|
Viton
|
|
18
|
Gear Actuator
|
|
|
The material is
according to ASTM standard
|
Related Knowledge
What is difference between floating and trunnion ball valve?
The ball part of floating ball valve is movable. Under the pressure of medium, the ball has a certain displacement and presses on the sealing surface of outlet end to ensure its tight sealing. The floating structure is suitable for ball valve with small size and low & medium pressure rating.
The ball part of trunnion mounted ball valve is fixed. Under the medium pressure, the floating seat will move towards the ball to ensure the sealing. The trunnion mounted ball valve is often with larger size and higher pressure.
