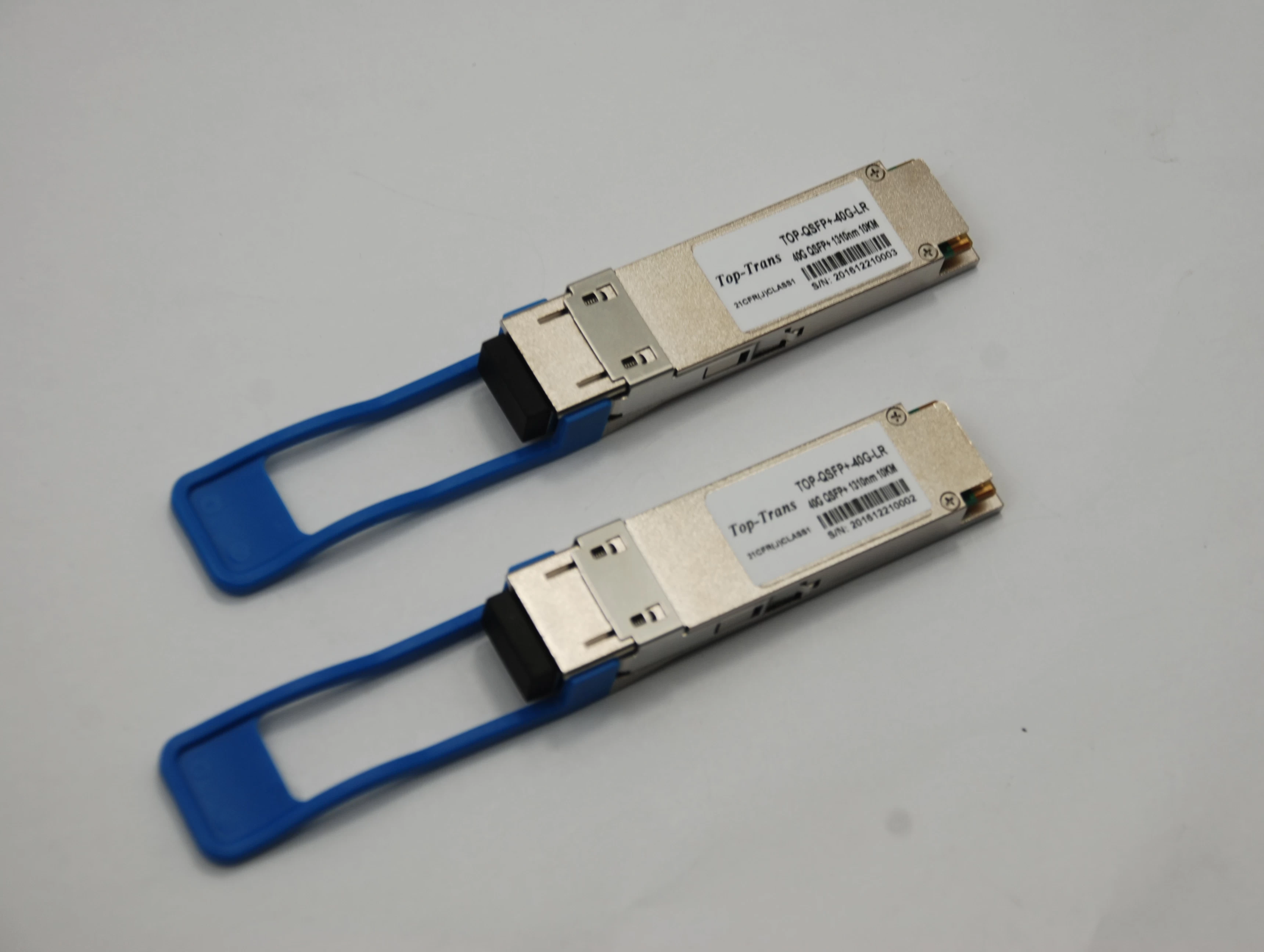

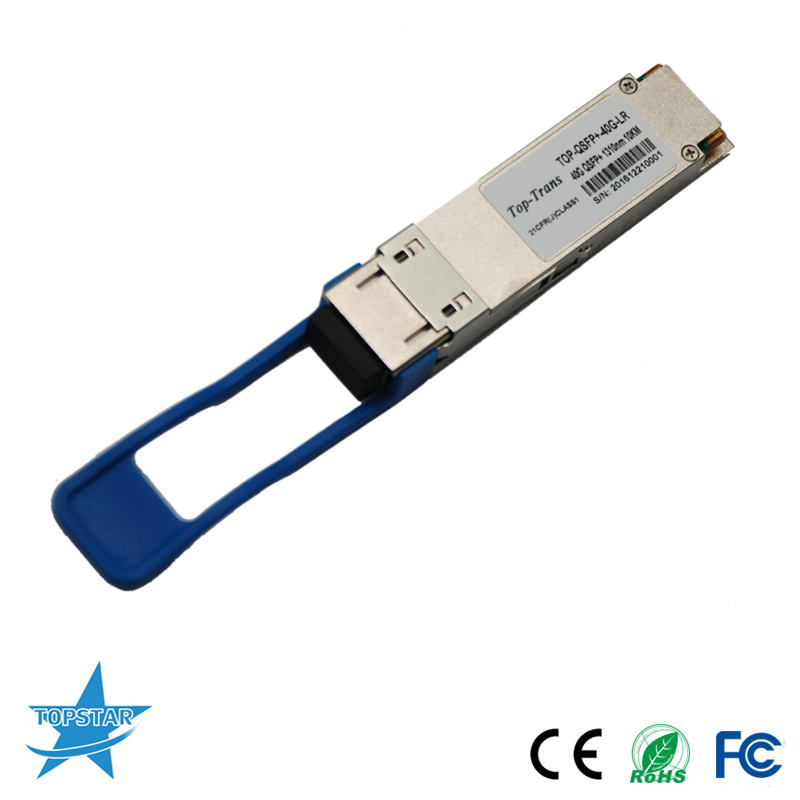

Arista Networks QSFP-40G-LR4 40GBASE-LR4 QSFP+ CWDM 1310nm 10km Transceiver

The 40GBASE-LR4 40G QSFP+ 10KM Transceiver is compatible with Cisco Huawei Juniper Arista etc. equipments for 5G wireless network solution.

Features

Hot-pluggable QSFP+ form factor
Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS-6 compliant
Commercial case temperature range 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions, including Tx/Rx power monitoring

Applications

40GBASE-LR4 40G Ethernet
OTN OTU3 C4S1-2D1
OTU3e1 and OTU3e2

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

Compatibility

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.

OEM& ODM

Customized label and package , OEM and ODM service offered
