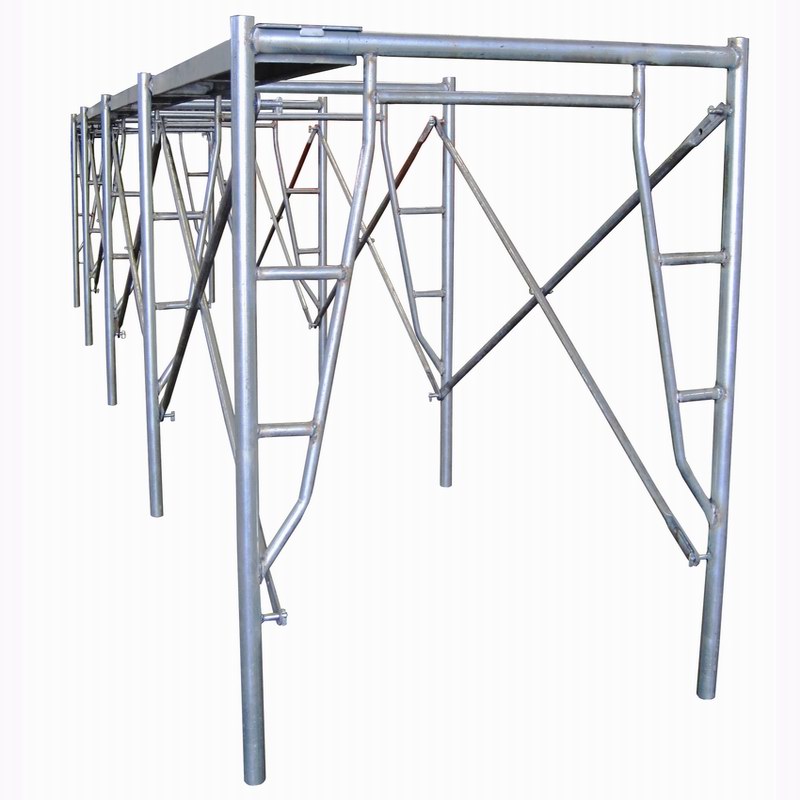

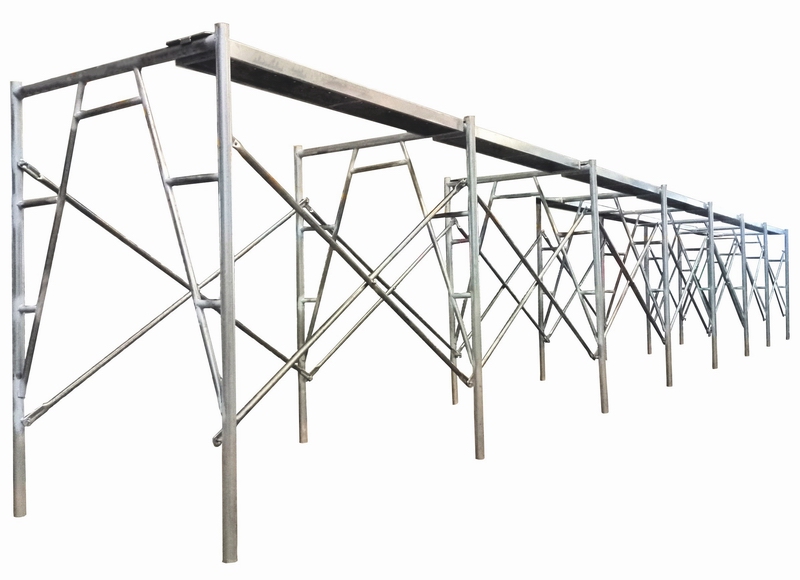

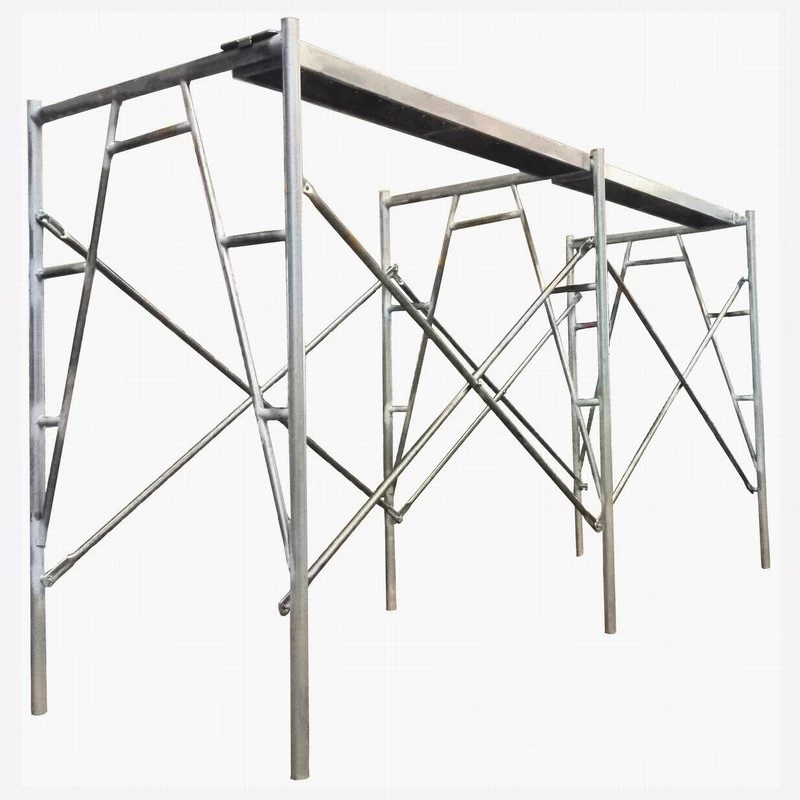

AUSTRALIAN A FRAME SCAFFOLDING
Features:
* Material: Steel grade Q235
* Tube Specification: Frame leg OD.48.3x3.25mm,handrail and cross brace OD.27x2.3mm,other thickness is available on request.
* Frame Width: 1310mm, 780mm
* Locking Device: Flip Lock
* Coupling Pin: CP5 (Square Coupling Pin)
* Fabrication: A frames welded by GI pipes and zinc coating to welding parts
* Finishing Options: Hot dip galvanized, electric galvanized, painted, powder coated

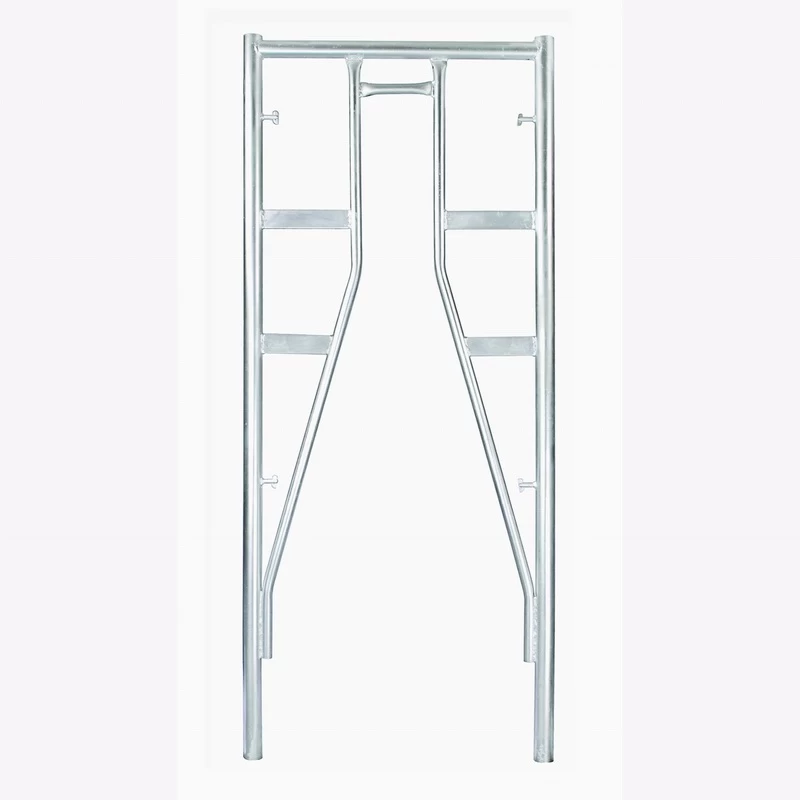

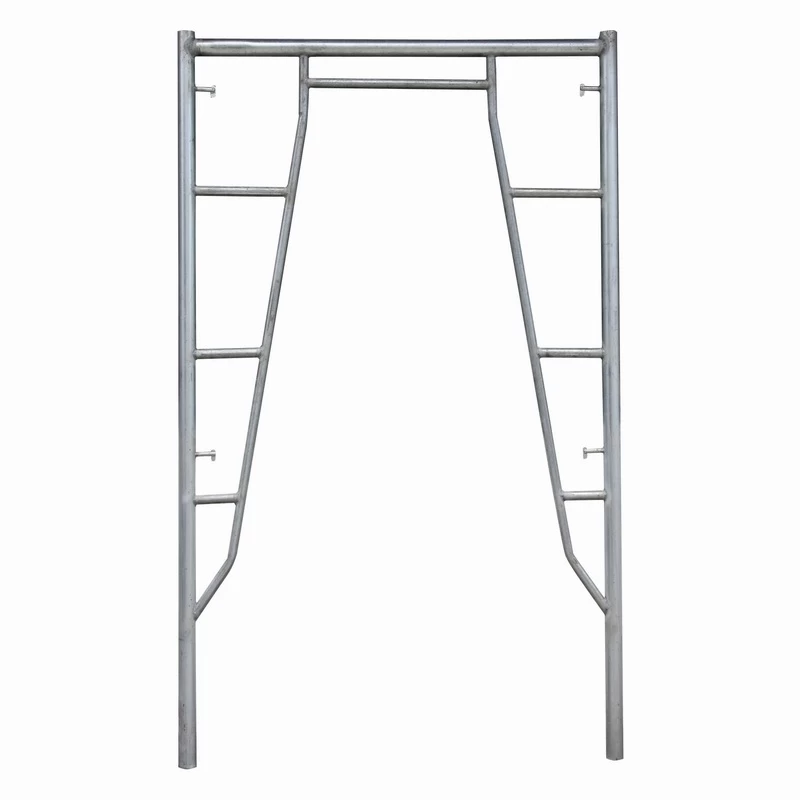

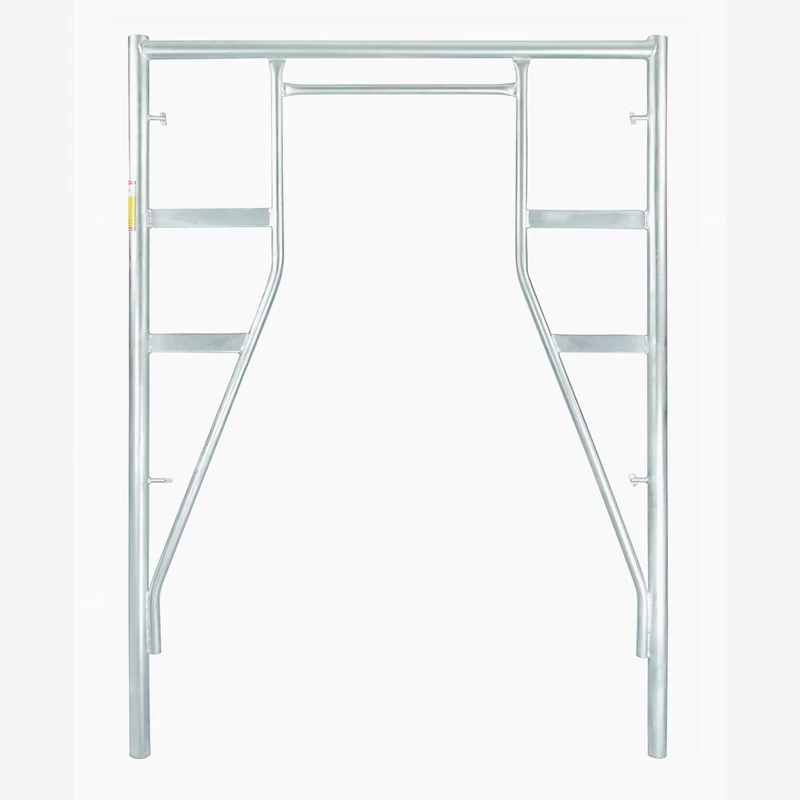

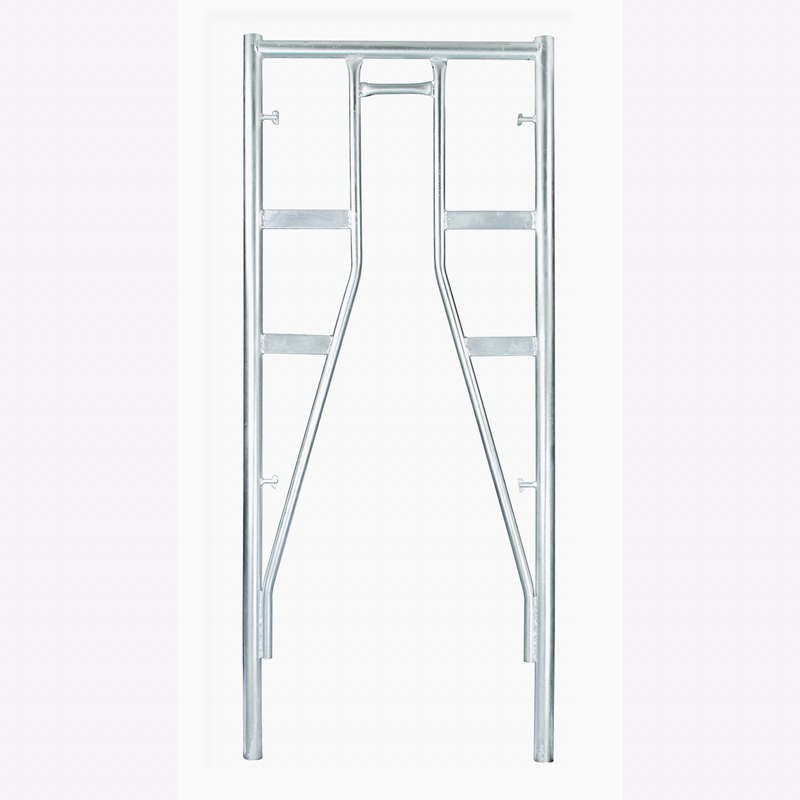

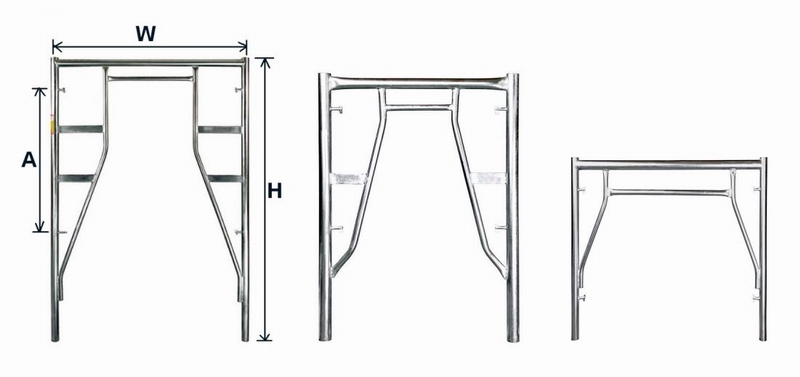

Australian A Frame
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.S20
|
Standard Frame 1310x2000mm
|
1312mm
|
2000mm
|
1010mm
|
26.10
|
57.55
|
|
AUF.N20
|
Narrow Frame 780x2000mm
|
780mm
|
2000mm
|
1010mm
|
23.10
|
50.94
|
|
AUF.S18
|
Standard Frame 1310x1825mm
|
1312mm
|
1825mm
|
1010mm
|
24.70
|
54.46
|
|
AUF.N18
|
Narrow Frame 780x1825mm
|
780mm
|
1825mm
|
1010mm
|
21.70
|
47.85
|
|
AUF.S15
|
Standard Frame 1310x1525mm
|
1312mm
|
1525mm
|
1010mm
|
19.90
|
43.88
|
|
AUF.N15
|
Narrow Frame 780x1525mm
|
780mm
|
1525mm
|
1010mm
|
17.40
|
38.37
|
|
AUF.S12
|
Standard Frame 1310x1220mm
|
1312mm
|
1220mm
|
550mm
|
17.50
|
38.59
|
|
AUF.N12
|
Narrow Frame 780x1220mm
|
780mm
|
1220mm
|
550mm
|
14.90
|
32.85
|
|
AUF.S09
|
Standard Frame 1310x915mm
|
1312mm
|
915mm
|
550mm
|
14.00
|
30.87
|
|
AUF.N09
|
Narrow Frame 780x1915
|
780mm
|
915mm
|
550mm
|
11.50
|
25.36
|

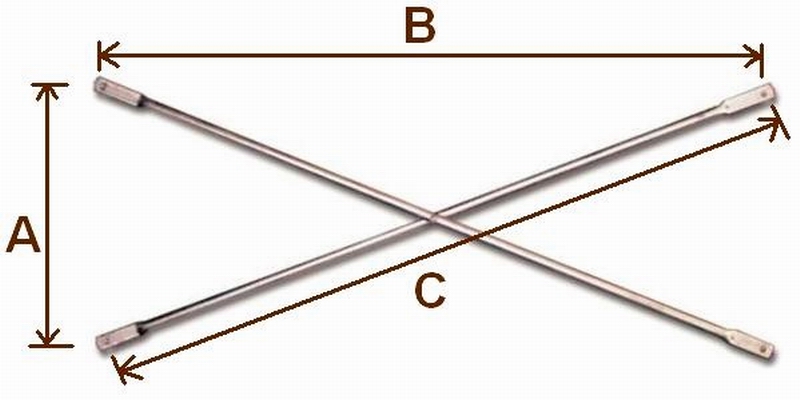

Australian A Frame Cross Braces
|
Code
|
Description
|
Size A
|
Size B
|
Size C
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.CB.26
|
2.6M Cross Braces
|
1010mm
|
2400mm
|
2604mm
|
7.47
|
16.47
|
|
AUF.CB.24
|
2.4M Cross Braces
|
550mm
|
2400mm
|
2462mm
|
7.07
|
15.59
|
|
AUF.CB.21
|
2.1M Cross Brace
|
1010mm
|
1830mm
|
2090mm
|
6.03
|
13.30
|
|
AUF.CB.19
|
1.9M Cross Brace
|
550mm
|
1830mm
|
1910mm
|
5.52
|
12.17
|
|
AUF.CB.16
|
1.6M Cross Brace
|
1010mm
|
1265mm
|
1619mm
|
4.71
|
10.38
|
|
AUF.CB.13
|
1.3M Cross Brace
|
550mm
|
1265mm
|
1379mm
|
4.04
|
8.90
|
Australian A Frame Hand Rail Braces
|
Code
|
Description
|
Length (L)
|
Tube Size
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.HB.24
|
2.4M Handrail Brace
|
2400mm
|
Ø28x2.2mm
|
3.42
|
7.53
|
|
AUF.HB.18
|
1.8M Handrail Brace
|
1830mm
|
Ø28x2.2mm
|
2.62
|
5.77
|
|
AUF.HB.12
|
1.25M Handrail Brace
|
1265mm
|
Ø28x2.2mm
|
1.83
|
4.03
|

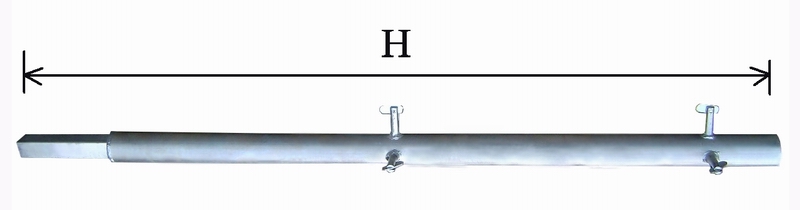

Australian A Frame Hand Rail Post
|
Code
|
Description
|
Lock Style
|
Height (H)
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.HRP.1R
|
Handrail Post (1 Rivet) 1182mm
|
Flip Lock
|
1150mm
|
4.02
|
8.87
|
|
AUF.HRP.2R
|
Handrail Post (2 Rivets) 1150mm
|
Flip Lock
|
1150mm
|
3.96
|
8.73
|
|
AUF.HRP.4R
|
Handrail and Corner Post (4 Rivets) 1150mm
|
Flip Lock
|
1150mm
|
4.06
|
8.95
|

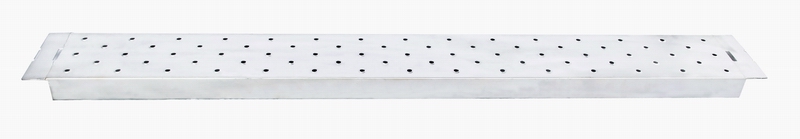

Australian A Frame Interlock Plank / Hook on Plank
|
Code
|
Description
|
Width (W)
|
Length (L)
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.ILP.24
|
2.4M Interlock Steel Plank
|
220mm
|
2450mm
|
15.87
|
35.00
|
|
AUF.ILP.18
|
1.8M Interlock Steel Plank
|
220mm
|
1880mm
|
12.54
|
27.65
|
|
AUF.ILP.13
|
1.3M Interlock Steel Plank
|
220mm
|
1320mm
|
9.45
|
20.83
|

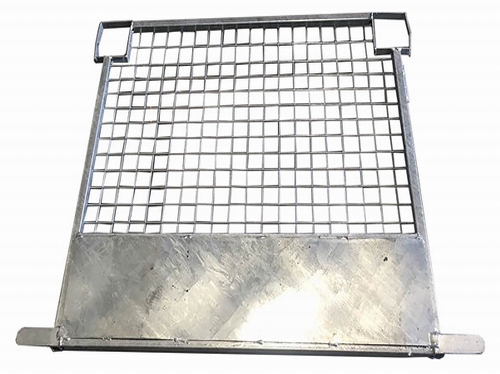

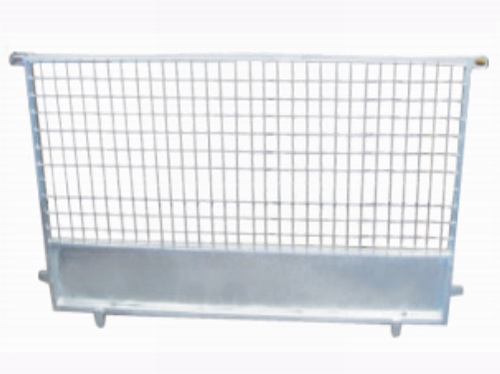

Australian A Frame Mesh Panel / Mesh Gate
|
Code
|
Description
|
Length (L)
|
Height (H)
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.MP.18
|
1.8M Mesh Gate for Frame
|
1830mm
|
900mm
|
17.69
|
39.00
|
|
AUF.MP.12
|
1.2M End Mesh Gate for Frame
|
1165mm
|
900mm
|
11.69
|
25.77
|
|
AUF.MP.07
|
0.7M End Mesh Gate for Frame
|
635mm
|
900mm
|
7.09
|
15.64
|

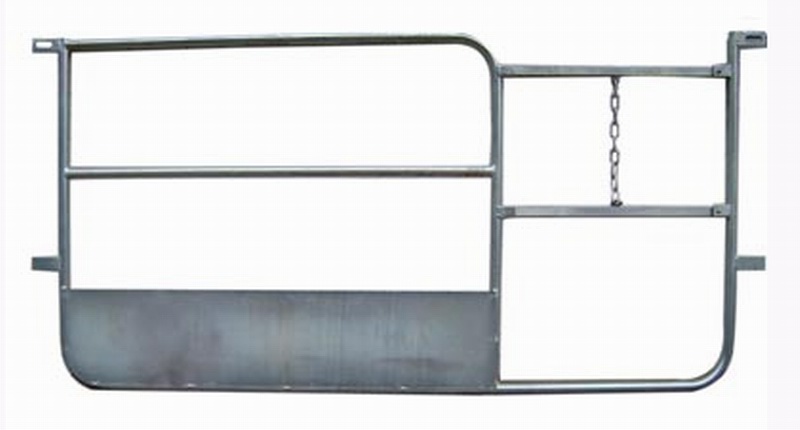

Australian A Frame External Ladder Gate
|
Code
|
Description
|
Length (L)
|
Height (H)
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.ELG.18W
|
1.8M Wide External Ladder Gate
|
1810mm
|
910mm
|
11.97
|
26.39
|
|
AUF.ELG.18N
|
1.8M Narrow External Ladder Gate
|
1810mm
|
910mm
|
14.06
|
31.00
|
|
AUF.ELG.12
|
1.2M External Ladder Gate
|
1264mm
|
910mm
|
10.38
|
22.90
|
|
AUF.ELG.07
|
0.7M External Ladder Gate
|
732mm
|
910mm
|
5.63
|
12.40
|

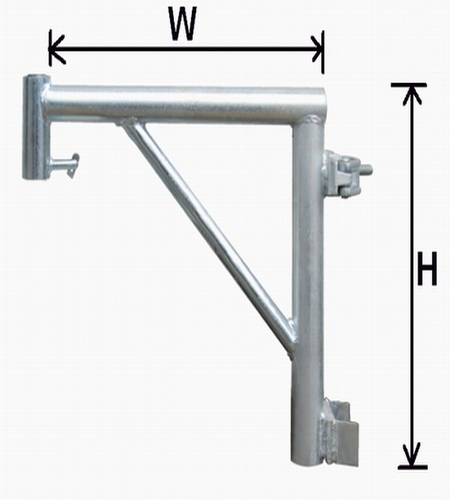

Australian A Frame Hop Up Bracket
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.HUB.1
|
Hop Up Bracket 1 Board
|
235mm
|
410mm
|
4.21
|
9.28
|
|
AUFHUB.2
|
Hop Up Bracket 2 Board
|
450mm
|
410mm
|
5.31
|
11.70
|
|
AUF.HUB.3
|
Hop Up Bracket 3 Board
|
672mm
|
460mm
|
6.76
|
14.90
|
|

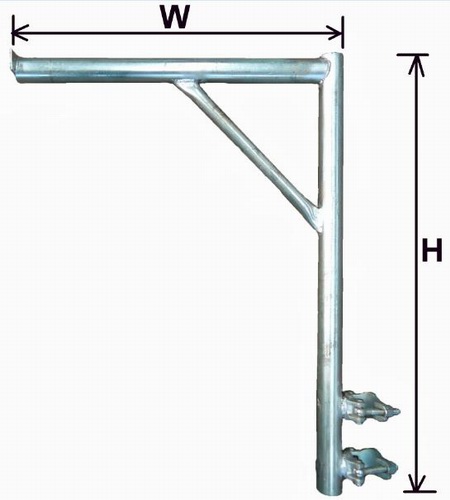

AUF.LHB
|
Ladder Hop Up Bracket
|
660mm
|
900mm
|
7.85
|
17.31
|
Australian A Frame Accessories
|
Code
|
Description
|
Length (L)
|
Tube Size
|
Weight(kg)
|
Weight(lbs)
|
|
AUF.BP
|
Square Tube Base Plate
|
186mm
|
SHS 30x30x2
|
1.60
|
3.53
|
|
AUF.PIN
|
Square Joint Pin
|
222mm
|
SHS 30x30x2
|
0.40
|
0.88
|
