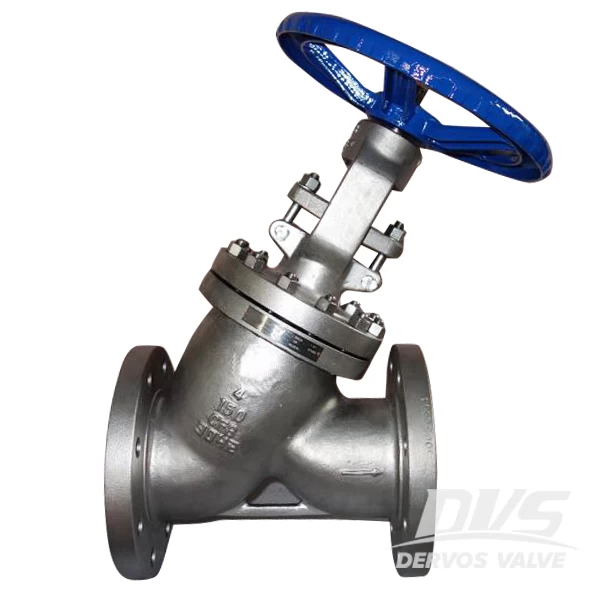

Y type globe valve. CF8 body/bonnet, F304 disc/stem, SS304+flexible graphite gasket and bronze bolt and nut. Plug type disc and Raised face flange connection.
Quick Detail
|
Type
|
Globe Valve
|
|
Size
|
4 inch
|
|
DesignPressure
|
CL150
|
|
Construction
|
Y Type Globe Valve
|
|
Connection Type
|
Raised Face Flange Connection
|
|
Operation
|
Handwheel
|
|
Design Code
|
ASME B16.34
|
|
Face to Face
|
ASME B16.10
|
|
Test & Inspection
|
API 598
|
|
Body Material
|
CF8
|
|
Temperature Range
|
-29~538℃
|
|
Application
|
WOG
|
