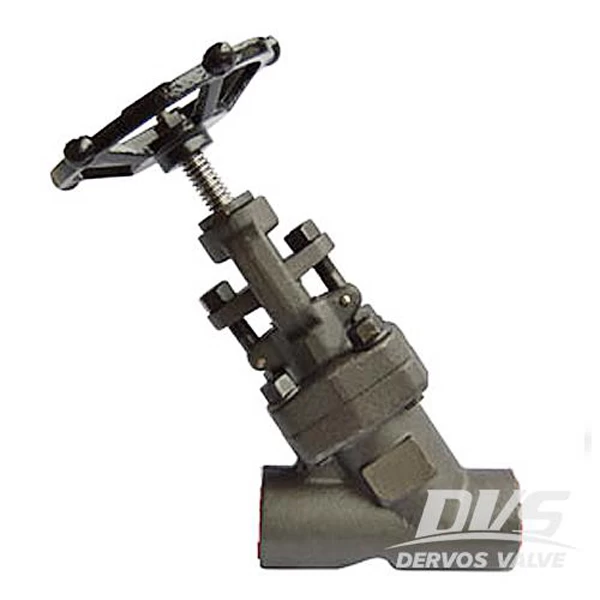

Forged Steel Y Type Globe Valve 2 Inch Class 800 SW


  • MaterialForged Steel Globe Valve A105N
  • Method of OperationHandwheel Globe Valve

Designed with 800 LB sw end, the 2 inch globe valve features in plug disc, bolted bonnet, and y type structure. The handwheel operated globe valve is made of forged steel body and stainless steel trim.


Quick Detail

Type

Globe Valve

Size

2''

Pressure

ANSI 800

Structure

Y Type, Y Pattern, Bolted Bonnet

ConnectionType

SW

Operation

Handwheel Operated

Design Code

API 602

Face to Face

ASME B16.10

Connection Standard

ASME B16.11

Pressure & Temperature

ASME B16.34

Test & Inspection Standard

API 598

Body Material

ASTM A105

ApplicableTemperature

-29℃~+425℃

Application

Water, Oil, Gas


Related Knowledge
What is the main reason to use Y-pattern globe valve?


A Y type globe is designed with 45° between seat and stem. In other words, the flow will remain straight linear from inlet to outlet ports.Compared to staight pattern globe valve, the y pattern globe valve reduce the flow resistance and pressure drop. This kind of y pattern globe valve is well suited for high pressures and severe application.
