ASTM Compression Test Disc GT-M38B

ASTM Compression Test Disc is used to provide a pressure test for toy plane.



ASTM Compression Test Disc GT-M38B


Product Introduction

Application:

ASTM F963 Toy testing compression test disc is used to provide a pressure test for toy plane. According to the standard requirements: Any accessible area on the surface of a toy that is inaccessible to flat surface contact during the drop test or tip over test shall be subjected to a compression test.

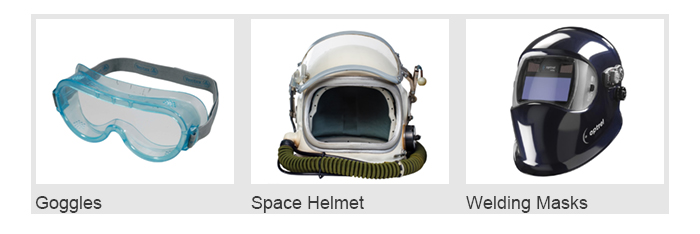

The main scope is: expansive material toys or parts, all of  hard materials covering in the face

(such as goggles, space helmets or welding masks), hard toy ball, the can be touched magnetic components of toys, toys attached to food.


Standards:

ASTM F963

16 CFR 1500

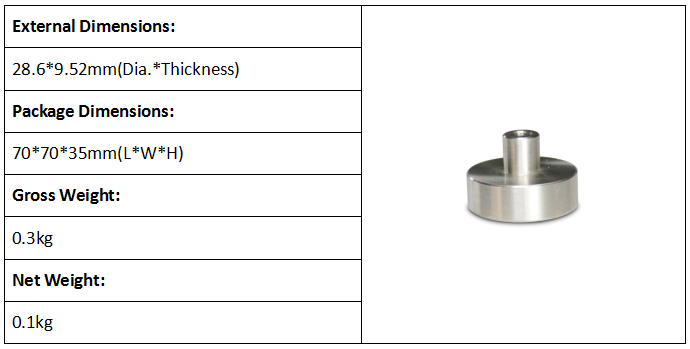

Dimensions



ASTM Compression Test



Test Method


1. Place the toy on a horizontal rigid surface with the part of the toy to be tested uppermost. Apply

a compression force through a rigid metal disc with a diameter of (28.6±0.38) mm to the area to be tested.

2. Apply the force gradually over a period of approximately 5 s, maintain the force for 10 s.

3. Determine whether the casing of toys intended for children too young to sit up unaided has separated into parts or cracked.

4. Determine whether small parts, hazardous sharp edges, hazardous sharp points or hazardous driving mechanisms have become accessible.

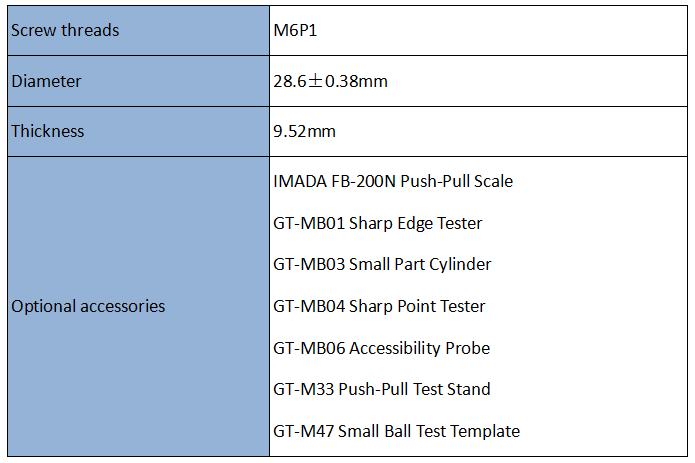

Key Specifications



ASTM Compression Test



Application Industry

All kinds of children's products can be tested on the Compression Test Disc.

ASTM Compression Test
