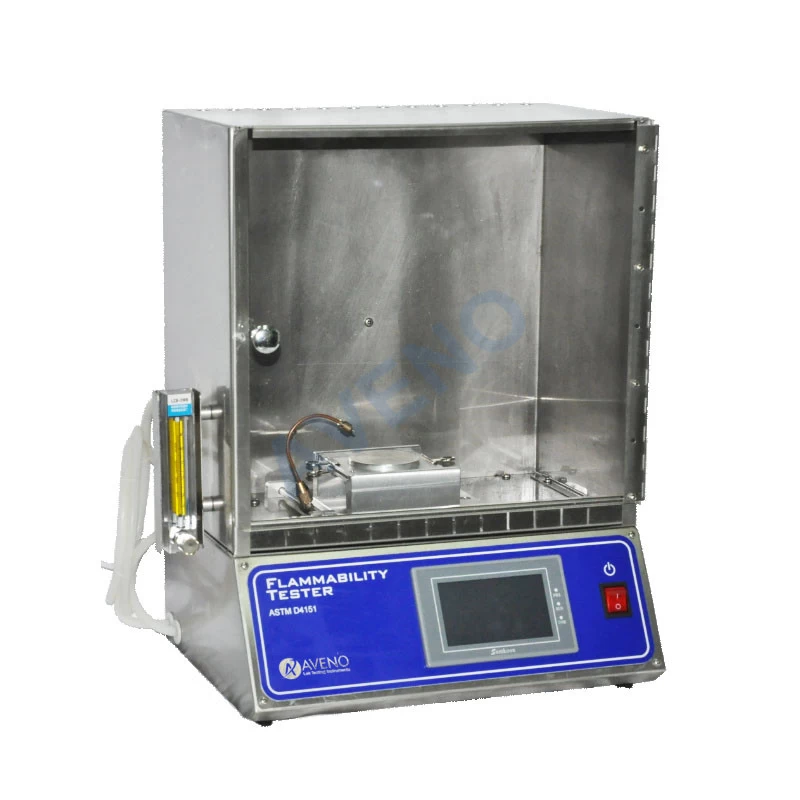

AG53-ASTM D4151 Blanket Flammability Tester
Application Of ASTM D4151 Blanket Flammability Tester
ASTM D4151 Blanket Flammability Tester is suitable for testing the flame retardant property of bed blanket fabric and the flame spread property of fabric surface.
Principle Of ASTM D4151 Blanket Flammability Tester
-
In a specified device, horizontal placement of treated specimens, a piece of paper placed on a surface with a round hole in the middle.
-
Use a specified propane source on the surface of the round hole position of blanket.
-
Determine whether the blanket has been ignited according to if the paper of the hole parts had been charring, carbonization or discoloration.
Standards Of ASTM D4151 Blanket Flammability Tester
ASTM D4151
Key Specification Of ASTM D4151 Blanket Flammability Tester
|
Model
|
AG53-ASTM
D4151 Blanket Flammability Tester
|
|
Control mode
|
Touch
screen control
|
|
Test Chamber
|
Dimension:
37cmX22cmX35cm
With
12pcs of blowhole φ12.7mm on top
|
|
Sample frame direction
|
Horizontal
|
|
Ignition position
|
Sample
fixture inner hole center
|
|
Test paper dimension
|
75mmx90mm,
with 50mm round hole
|
|
Distance from nozzle to sample
surface
|
8mm
|
|
Length of flame
|
16mm
|
|
Duration of ignition
|
1s
|
|
Power supply
|
AC220V,
50/60HZ
|
|
Dimension
|
42x26x52cm
|
|
Weight
|
20kg
|
