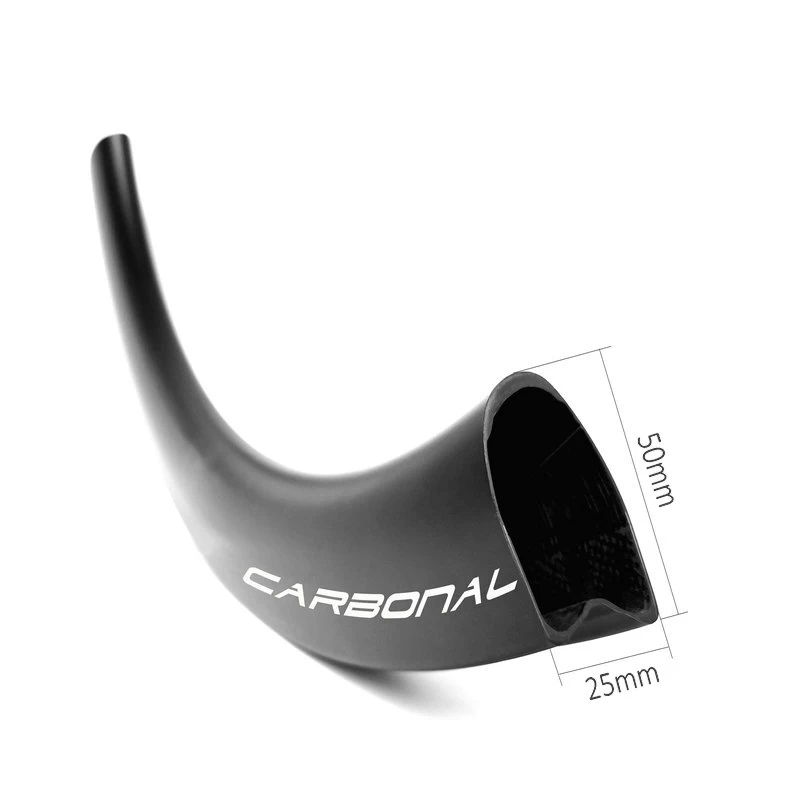

Asymmetrical 2.5mm offset 700C road 50mm depth tubular carbon rims

Item RT50D, weight 410g, ERD 545mm. 50mm depth U shape carbon rim is the most popular size, aerodynamic and asymmetric profile for more stable bicycle wheels by equalizing the spoke tensions between the drive and non-drive side.


  • Max weight limit125kg
  • Max spoke tension140kgf
  • Depth50mm
  • Width25mm
  • ERD545mm
  • Weight410g±15
  • BrakeRim brake
  • TypeTubular
  • Materialfull carbon Toray T700
  • Size700C

Product Item: Asymmetrical 2.5mm offset 700C road 50mm depth tubular carbon rims

asymmetrical carbon rims

This asymmetrical 2.5mm offset 50mm depth tubular carbon rim is the most popular size, aerodynamic performance, and asymmetric profile for more stable bicycle wheels by equalizing the spoke tensions between the drive and non-drive side.


Specification:

 Item:
 RT50D
 Use:
 road bike, cyclocross
 Rim type:
 700C tubular - rim brake*
 Material:
 Toray T700 carbon fiber
 Width:
 25mm
 Weight:
 410g±15
 Depth:
 50mm
 ERD:
 545mm
 Weave:
 UD, 3k, 3k twill, 6k, 12k, marble
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max / Min tire pressure:
 N/A / 80psi
 Decal:
 Customized
 Weight limit:
 125kgs
 TG resin temperature:
 210°C
 Standard:
 EN standard

* This rim can be made without brake track for disc brake use.

* For rim brake, brake track available in 3k twill (recommended why 3k twill brake track is better?) or basalt surface.

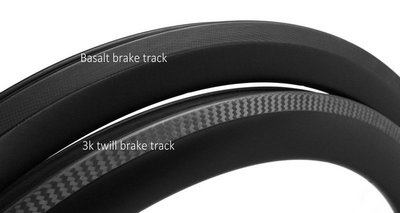

carbon rim with basalt & 3k twill brake track


Features:

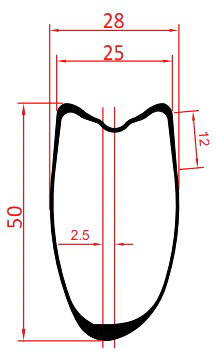

  • This 50mm deep tubular rim is asymmetrical 2.5mm shape where the spoke holes are not centered, but placed out of the middle of this carbon rim, this gives the wheel a more even spoke tension between left and right and therefore a stiffer and longer lasting wheel. Offset rims have advantages for wheel with cassette hubs.
  • U areodynamic shape makes road tubular rims lightweight but still stiff, keeping them stable in cross winds condition.
  • High TG 210°C resin temperature brake track, less than 0.1% heating problem on these rim brake bicycle tubular wheels.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


More about Carbonal carbon rim Quality Control.
