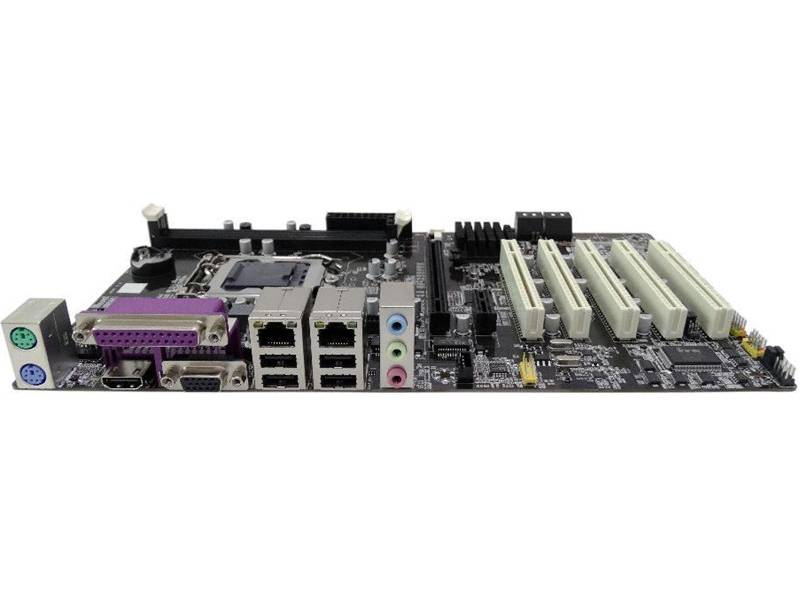

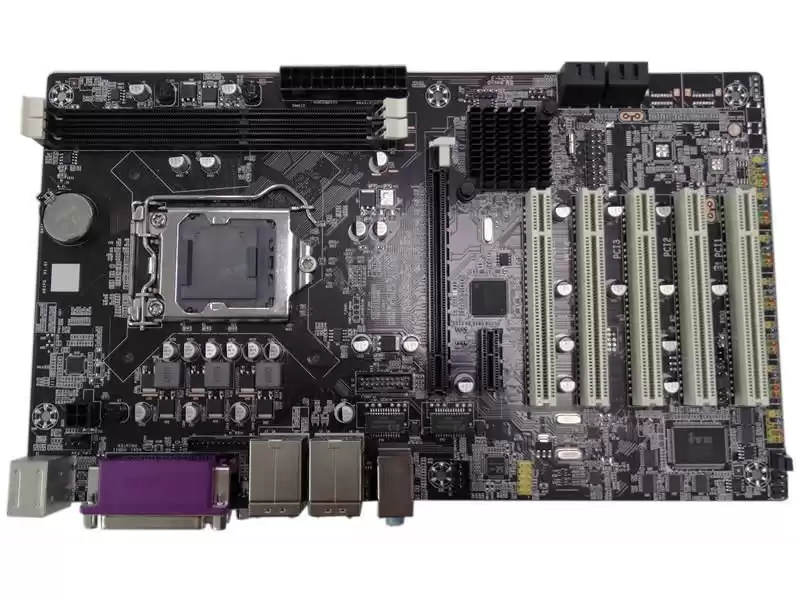

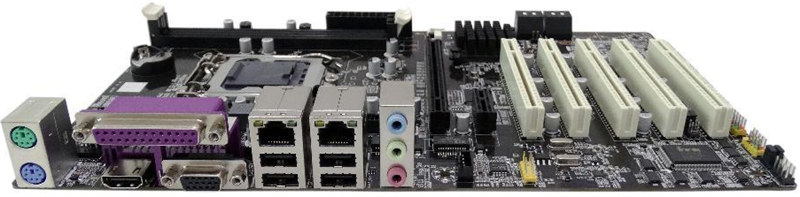

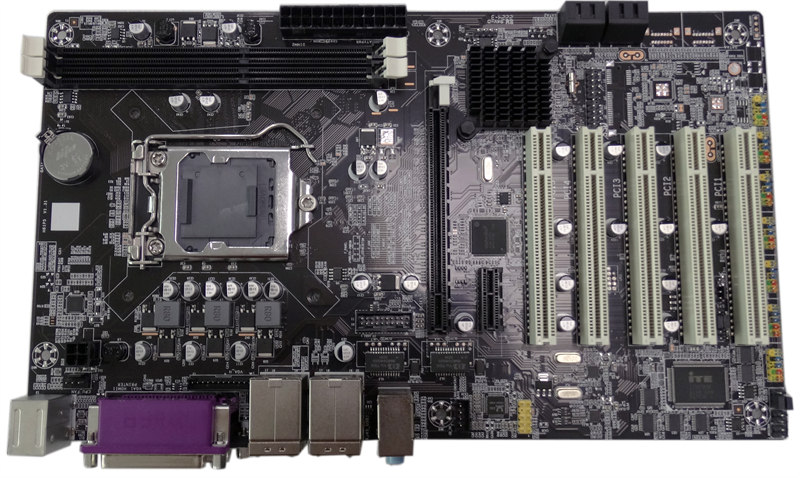

ATX Industrial Motherboard Intel® PCH H61 Chip 2LAN/6COM/8USB 7 Slots（5PCI）Expansion
Product Introduction
ATX industrial motherboards are usually specially designed to improve their stability and reliability in industrial environments. They can handle more severe working conditions such as temperature fluctuations, humidity changes and electromagnetic interference.
Product Features
■ Support LGA1155 architecture 2nd/3rd generation Intel® Core CPU
■ Optional 1 or 2LAN gigabit network
■ VGA+HDMI interface
■ 6COM
■ 8USB2.0
■ 1PCIEx16; 1PCIEx1; 5PCI expansion
|
Specification
|
|
CPU/GPU
|
Support LGA1155architecture 2nd/3rd generationi7 / i5 / i3，Intel®Core™ Pentium®/Celeron® CPU
|
|
Chip
|
Intel@ PCH H61
|
|
Memory
|
2×DDR3 DIMM slot，up to 16GB SDRAM
|
|
Storage
|
4×SATA
|
|
Sound card
|
RealtekHD Audio
|
|
NIC
|
1 or 2LAN
|
|
Graphic card
|
CPU integrated graphic
|
|
Display interface
|
VGA+HDMI
|
|
USB2.0
|
8
|
|
COM
|
6COM RS232
|
|
BackplaneI / O
|
PS2 KB/MS, LPT+VGA+HDMI, 1/2 RJ45 LAN+4USB2.0, Line-out+Mic-in
|
|
BoardI / O
|
4USB2.0 , 6COM , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Speaker, 24P+4P ATX
|
|
Expansion
|
1PCIEx16; 1PCIEx1; 5PCI
|
|
System
|
Support Windows（WINXP，WIN 7，WIN 10 ...），Linux
|
|
Mechanical & Environmental
|
|
Power supply
|
ATX
|
Heat dissipation
|
Fan
|
Size(L×W)
|
306mm×245mm
|
|
Working temperature
|
-15~55℃
|
Storage
|
-40~75℃
|
Environmental humidity
|
0~90%air humidity,no condensation
|
|
Packing list
|
ATX-H61AH268 motherboard×1，SATA data cable×1，Interface bezel×1，COM cablex2
|
|
Ordering information
|
|
ATX-H61AH168 Single LAN 100M
|
|
ATX-H61AH268 Dual network Gigabit
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
