ATX Industrial Motherboard Intel@ PCH W580 Chip with 2 LAN 6COM 14USB, 7 Slots (6PCIE 1PCI)
Product Introduction

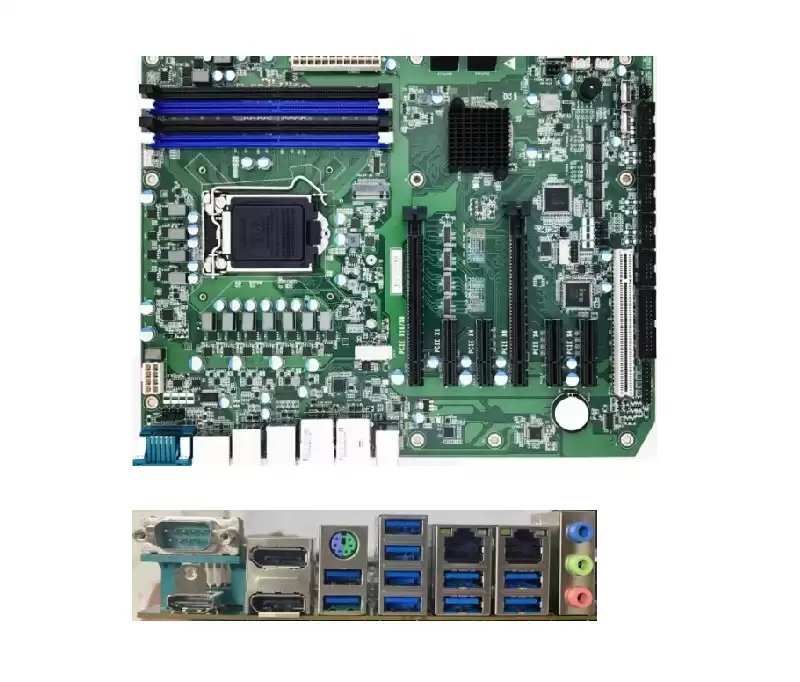

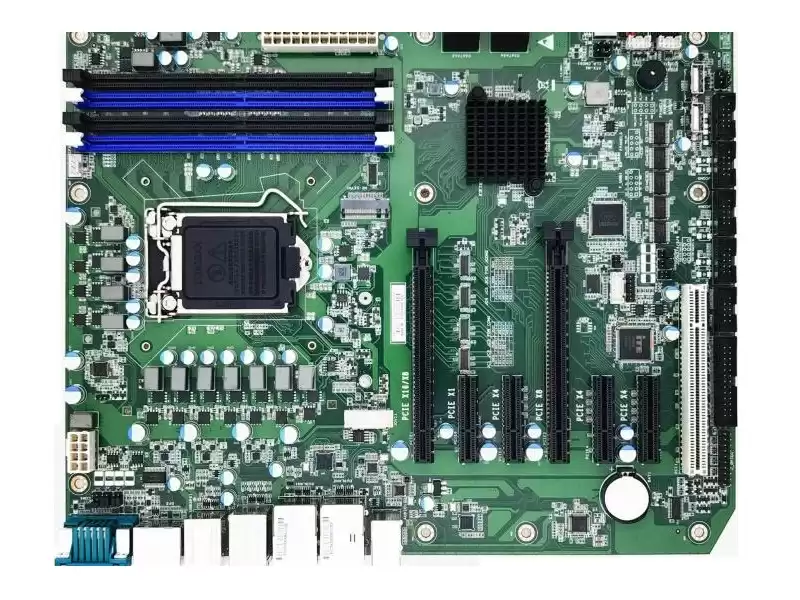

The ATX Industrial Motherboard with Intel PCH W580 Chip is a cutting-edge motherboard designed specifically for industrial applications. It combines powerful performance, robust reliability, and a wide range of connectivity options to meet the demands of industrial environments.
Equipped with the Intel PCH W580 Chip, this motherboard delivers exceptional computing power and efficiency. It is built on the ATX form factor, ensuring compatibility with standard PC cases and components, simplifying installation and integration processes.
The ATX-W580AH26E Industrial Motherboard with Intel PCH W580 Chip is a reliable and feature-rich solution designed to meet the demands of industrial applications. With its two LAN ports, six COM ports, fourteen USB ports, and seven PCIe slots, it provides exceptional connectivity, control, and expansion capabilities, making it an ideal choice for industrial computing requirements.
|
Specification
|
|
CPU/GPU
|
Support LGA1200 architecture10th、11 th Intel® Core CPU i7/i5/i3,Pentium®/Celeron®
|
|
Chip
|
Intel@ PCH W580
|
|
Memory
|
4 × DDR5 DIMM slot，up to 128GB SDRAM
|
|
Storage
|
4×SATA3.0， M.2 NFGG
|
|
Sound Card
|
Realtek HD Audio
|
|
NIC
|
2 ×Intel Gigabit Ethernet port
|
|
Graphic Card
|
CPU Integrated Graphics
|
|
Display Interface
|
2DP,HDMI, DVI(pin）Independenttriple display
|
|
USB2.0
|
4（2×USB pin，2×USB upright in the board）
|
|
USB3.2
|
10
|
|
GPIO
|
16-bit isolated
|
|
COM
|
6COM RS232，COM1/COM2 can be set RS422/RS485，Additional 4COM can be extended via eSPI
|
|
TPM
|
SPI interface support for security management modules
|
|
Backplane I /O
|
COM1+HDMI,2DP,PS/2+2USB3.2,4USB3.2,2 RJ45 LAN+4USB3.2,3 x audio jack
|
|
Board I /O
|
2× USB2.0(upright , 2USB2.0, 5COM ,front audio , CLR_CMOS ,CPU fan power ,System fan
power , GPIO,Front panel ,LPT,24P+8P ATX,TPM,eSPI
|
|
Expansion
|
1PCIEx16；2PCI；4PCIEx4（Generation 10 CPUs only support 3 PCIEx4)
|
|
System
|
Support Windows（WIN 10 ...），Linux
|
|
Mechanical & Environmental
|
|
Power supply
|
ATX
|
Heat Dissipation
|
Fan
|
Size(L×W)
|
305mm×244mm
|
|
Working Temperature
|
-15~55℃
|
Storage Temperature
|
-40~75℃
|
Environment Humidity
|
0~90% air humidity,non-condensing
|
|
Packing List
|
ATX-W580AH26E motherboard×1，SATA data cable×1，Interface bezel×1，COM cable x2
|
Product Features
- Support LGA1200 architecture 10th、11 th Intel® Core CPU and
- Xeon W-1200 series CPU
- 2 × Intel Gigabit Ethernet port
- 2DP+HDMI+DVI(pin）quad display,Independent triple display
- 6COM RS232 ，COM1/COM2 can be set RS422/485
- 10USB3.2, 4USB2.0, 16-bit isolated GPIO
- Support for security management module, expandable by 4 COM via eSPI
- 1 × M.2
- 2×PCIEx16（1× X16 or 2 × X8 signal）; 4PCIEx4（1 × X1 signal）; 1PCI expansion
- 256 level watchdog
