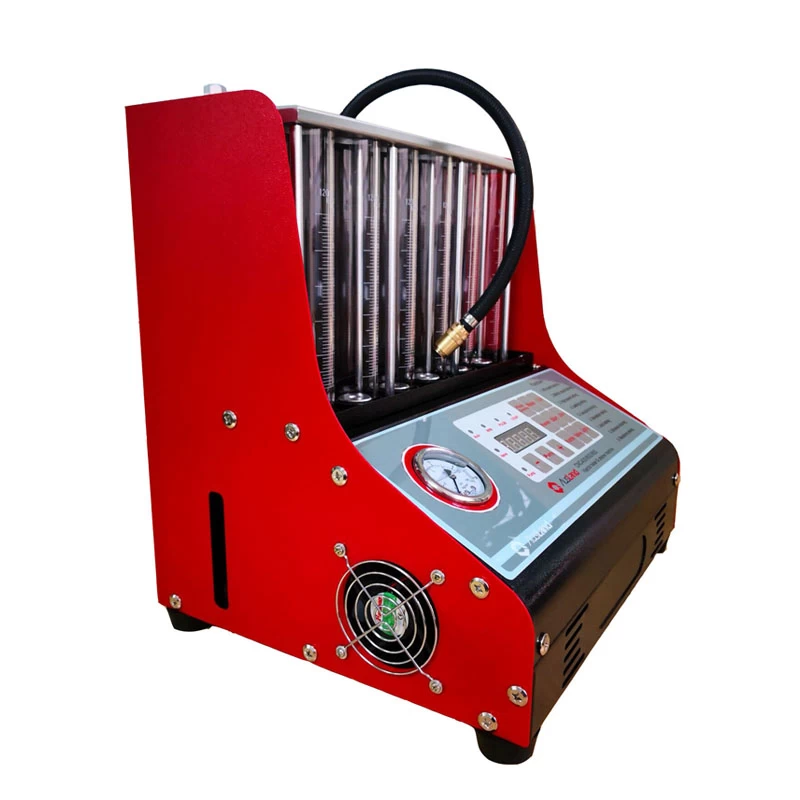

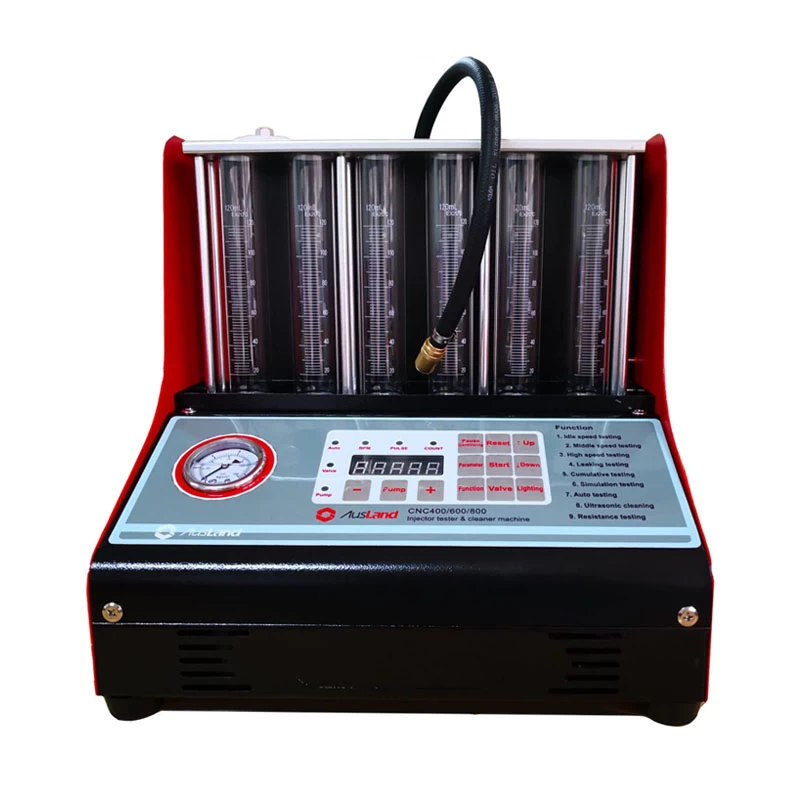

Ausland CNC-600 Ultrasonic Fuel Injector Cleaning Machine CNC600 Injector Cleaner
Ausland CNC600 Fuel Injector Cleaner:
1. solenoid valve, automatic oil return (Value button)
2. Ultrasonic Cleaning can work together with CNC600 or alone
3. Support 1-20Ω nozzle
4. Support 300W
5. Test the injector resistance one by one and display its resistance (Resistance testing button)
6. working voltage: 12V
7. Quick connectors for pipeline should use the specific liquid connectors
Functions of Ausland CNC600 Injector Cleaner:
1. Can test injector resistance ( one by one ), and display the data.
2. Can test the defects of leaking, blocking, atomization, spray pattern, flow.
3. Solenoid valve drain the liquid to tank, have LED of backlight.
4. Cumulative testing and engine simulation testing.
5. Using pulse width modulation to control and adjust fuel pressure.
6. Have Auto function, manual function.
7. Ultrasonic cleaning
Ausland CNC600 Fuel Injector Cleaning Machine Packing list:
Item
|
Components
|
Qty.
|
√
|
|
1
|
Couple of standard board(include 6 International standard connectors Ø10.6)
|
1
|
√
|
|
2
|
Adjusted screw
|
2
|
√
|
|
3
|
Fuel pipe
|
1
|
√
|
|
4
|
Connector of soft pipe injector
|
6
|
√
|
|
5
|
Ø11 underlay of injector
|
6
|
√
|
|
6
|
Ø14 underlay of injector
|
6
|
√
|
|
7
|
Sealed ring of International standard connectors (12x3)
|
6
|
√
|
|
8
|
Sealed ring of International standard connectors (7.5*3.5)
|
6
|
√
|
|
9
|
Connector of Benz mechanical injector (M12x1.5)
|
6
|
√
|
|
10
|
Manual user
|
1
|
√
|
|
11
|
R1/4blank plug
|
5
|
√
|
|
12
|
European standard connectors Ø13.6
|
6
|
√
|
|
13
|
Pulse line of injector (6 injectors)
|
1
|
√
|
|
14
|
Adjustable fastener (6-12)
|
6
|
√
|
|
15
|
The ultrasonic cleaner
|
1
|
√
|
|
16
|
Injector support frame
|
1
|
√
|
|
17
|
Special line
|
6
|
√
|
|
18
|
Fuel feed funnel
|
1
|
√
|
|
19
|
Power line
|
1
|
√
|
|
20
|
The ultrasonic cleaner connect line
|
|
√
|
Suggestions and precautions for use:
1. Alternative test fluid: Aviation kerosene. Or non-corrosive, and non-viscous liquid. 1-1.5 liters
2. Alternative cleaning solution: metal cleaning powder and water
3. cnc600 working time 10-15 minutes
4. Ultrasonic cleaner 1.8 liter capacity, liquid cannot exceed 2/3 of the volume, and working less than half an hour
