AUTO Change Shelf Layer Panel Roll Forming Machine

Use electric motor to auto change width from 350 to 1000mm



AUTO Change Size Shelf Panel Layer Roll Forming Machine

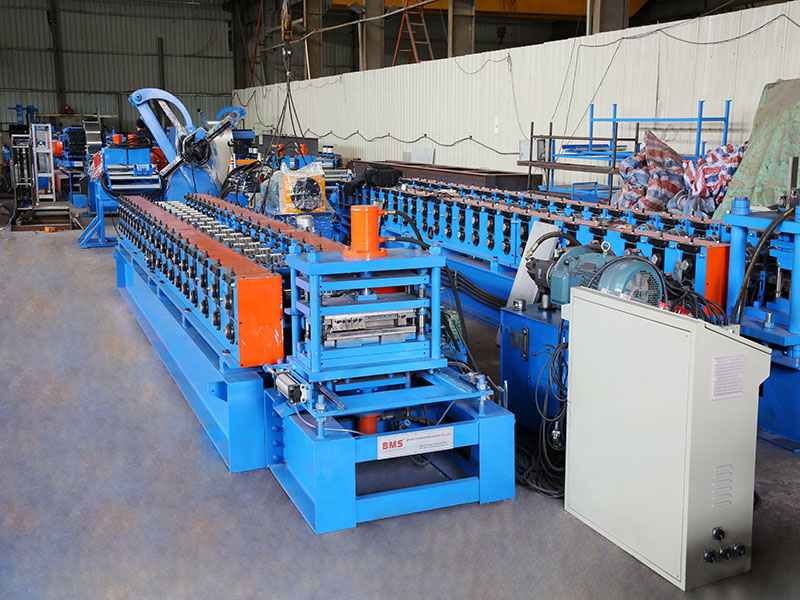

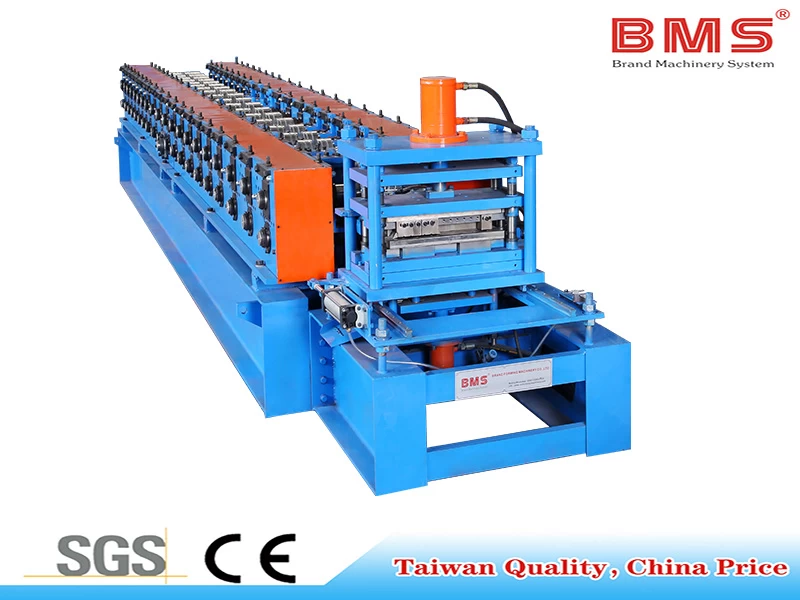

Shelf Panel Layer Roll Forming Machine


Profile

Shelf Panel Layer Roll Forming Machine

AUTO Change Size Width 350-1000mm



Material

Material Thickness: 0.8-1.4mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :G340-550Mpa

Work Follow

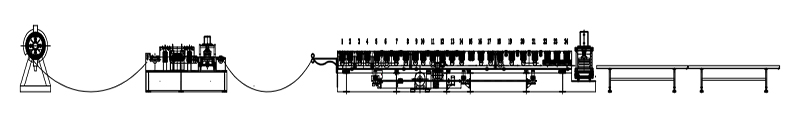

DecoilerServo Feeding & Punching Device→Feeding Guide DeviceRoll Forming SystemHydraulic Post Bending & Cutting DeviceExit Rack


Shelf Panel Layer Roll Forming Machine



Machine Components

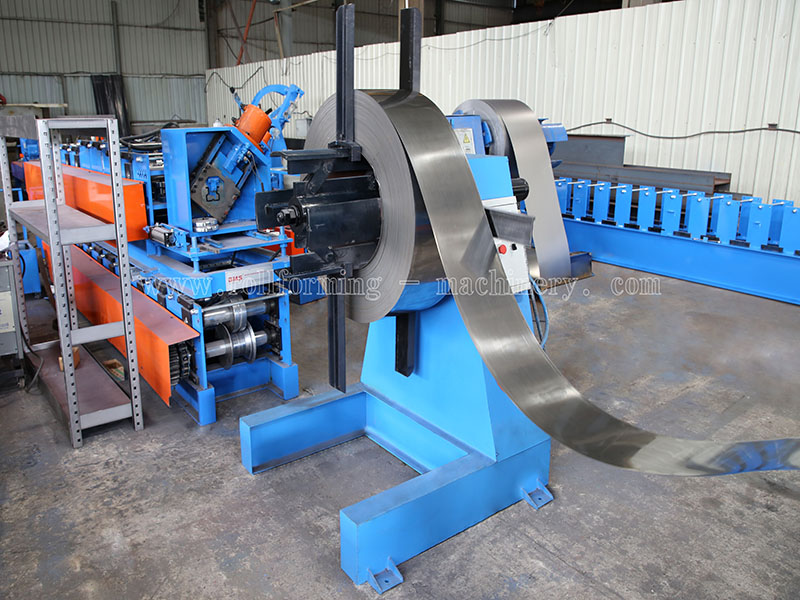

1) 5 T Hydraulic Decoiler


Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1600mm
Max capacity:5 ton,Oil pump motor:2.2KW

Shelf Panel Layer Roll Forming Machine

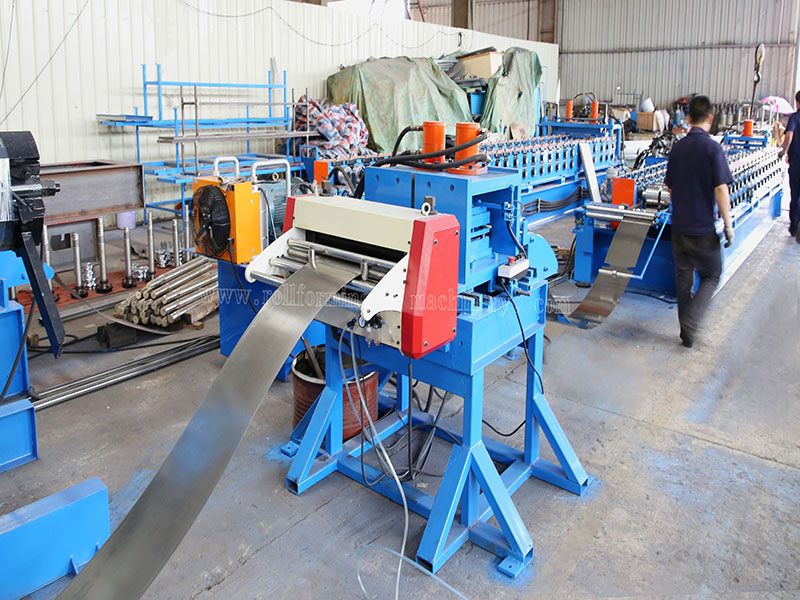

2) Servo Feeding & Punching Device


Shelf Panel Layer Roll Forming Machine




3) Feed Guide Device

The guiding position can be adjusted for suitable material feeding


Shelf Panel Layer Roll Forming Machine

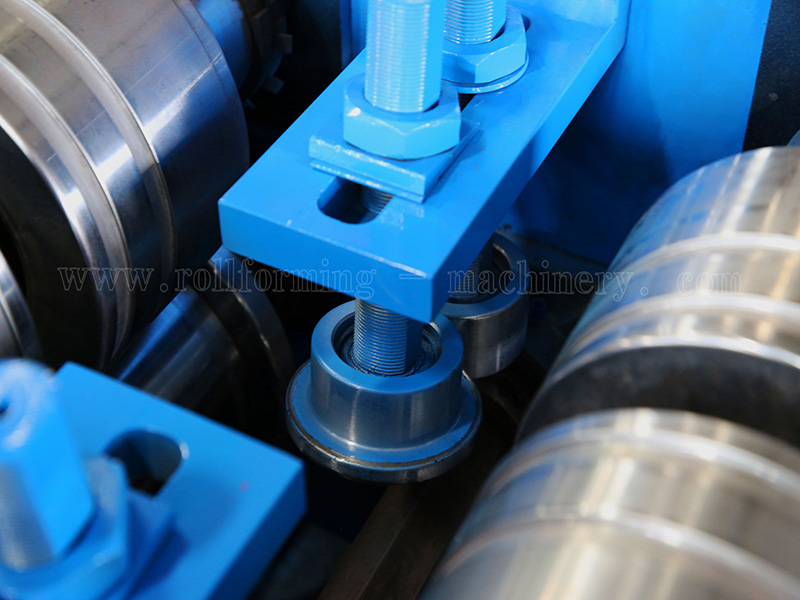

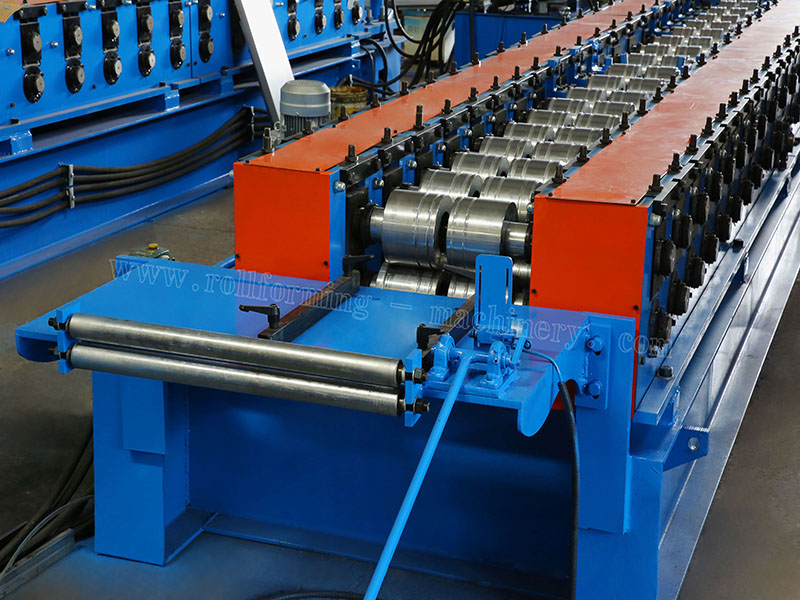

4) Main Machine


Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

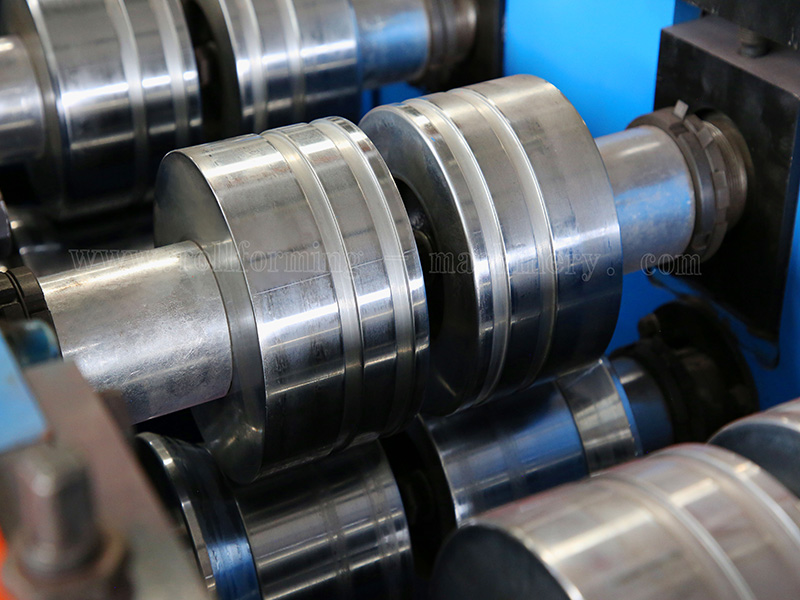

Rollers manufactured from GCr15 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 24-step to form
Main Motor(Polaroid brand)=15KW,Frequency speed control
Real forming speed 15-18m/min(Not include cutting time)


Shelf Panel Layer Roll Forming Machine



Shelf Panel Layer Roll Forming Machine



Shelf Panel Layer Roll Forming Machine

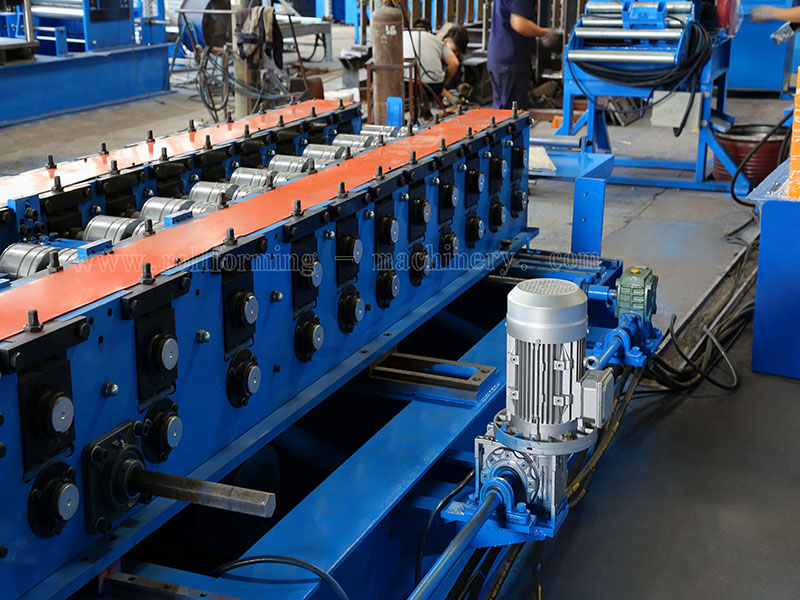

Use electric motor to auto change size

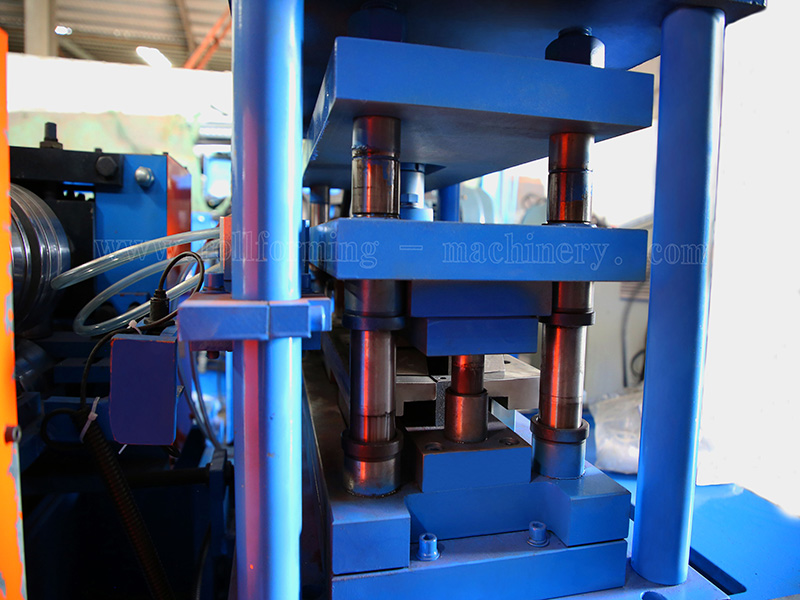

5) Post Hydraulic Bending & Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking

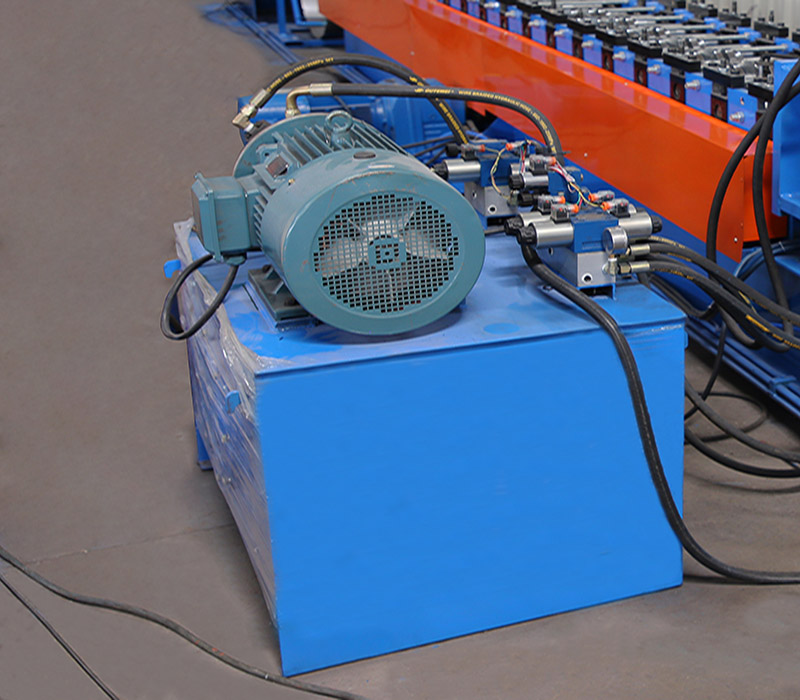

Hydraulic motor: 5.5KW
Cutting & Bending tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station


Shelf Panel Layer Roll Forming Machine




Shelf Panel Layer Roll Forming Machine

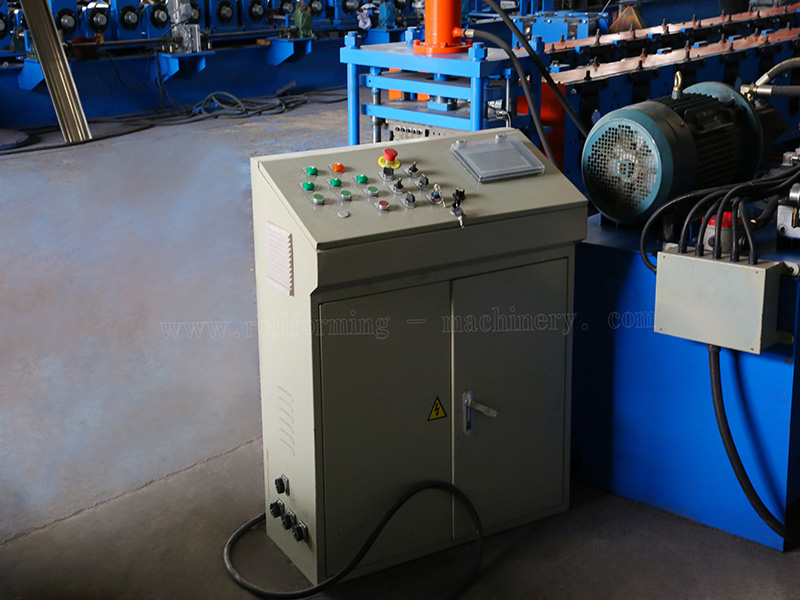

6) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


Shelf Panel Layer Roll Forming Machine



7)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

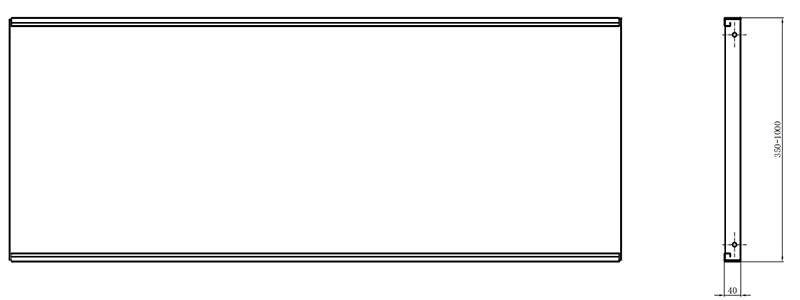

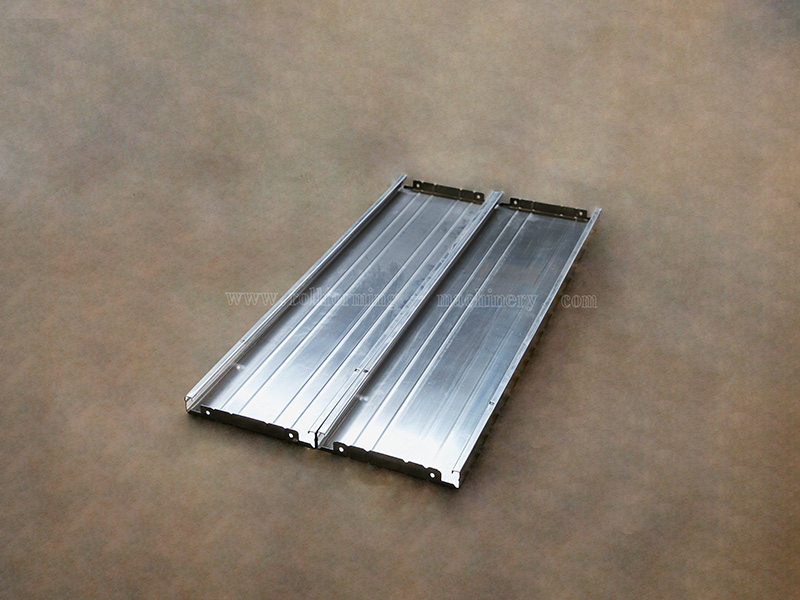

8) Product Show

Shelf Panel Layer Roll Forming Machine




After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost.



Terms Of Trade


1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc


Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
