Light Duty Shelf Pillar Roll Forming Machine

Light Duty Shelf Pillar Roll Forming Machine is make for shelf pillar truss.

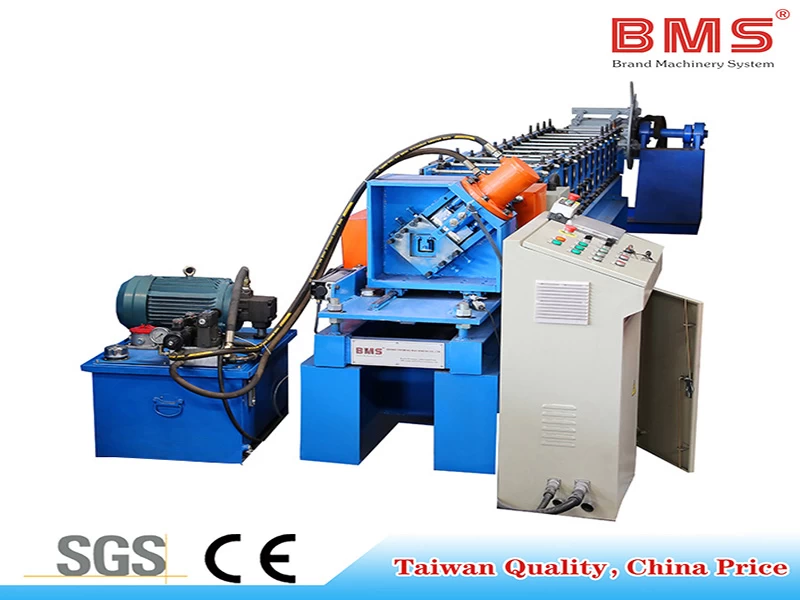

Light Duty Shelf Pillar Roll Forming Machine

Light Duty Shelf Pillar Roll Forming Machine

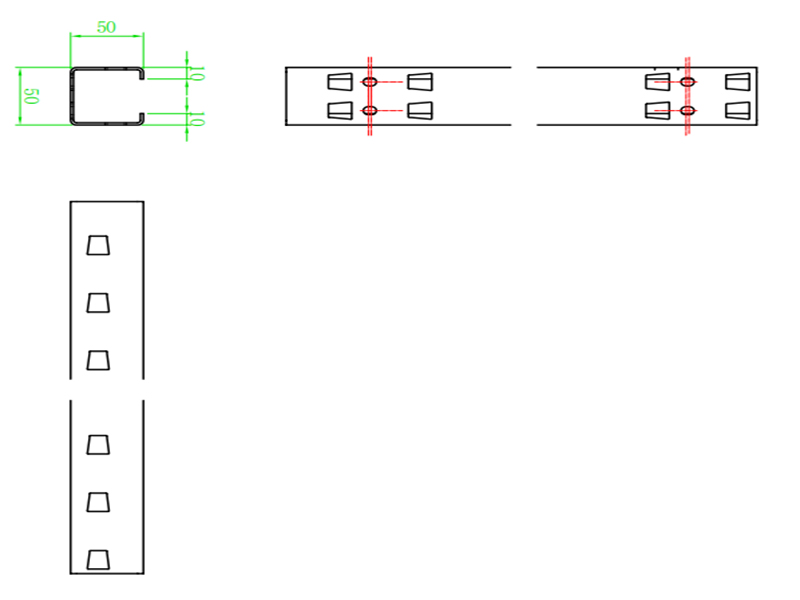

Profile


Material

Material Thickness: 1.4-2.0mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength G340-550Mpa

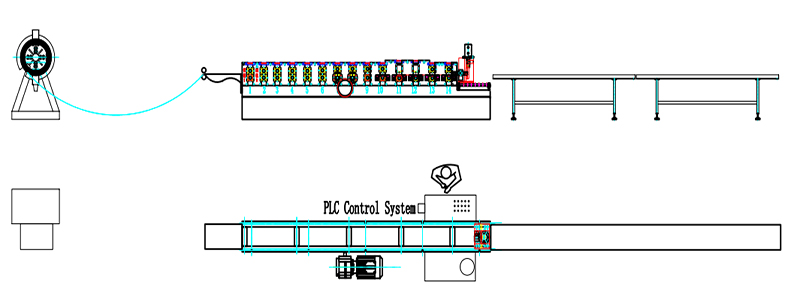

Work Follow

Decoiler→Guide Feeding→Roll Forming System→Hydraulic Post Cutter→Exit Rack





Machine Components

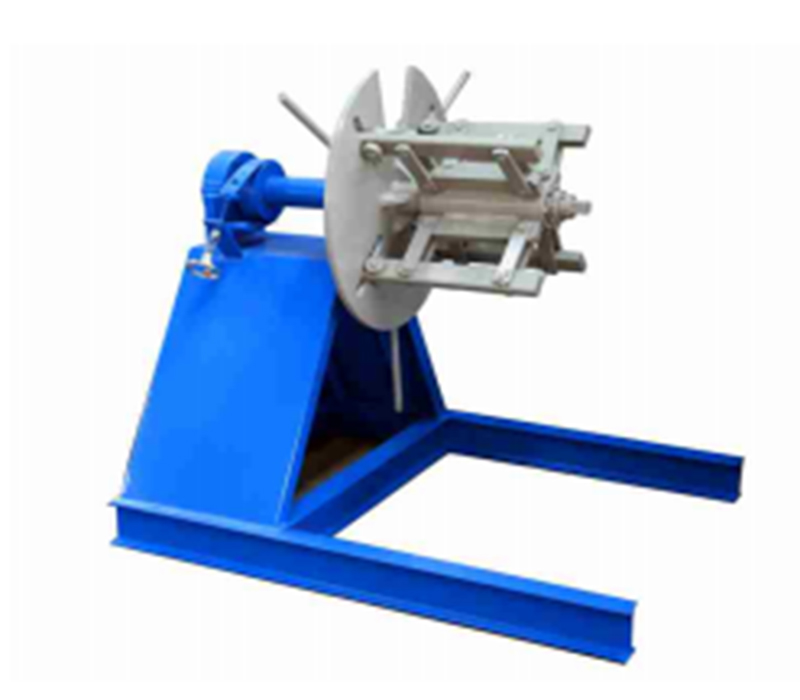

1) Manual Decoiler: one set

Un-powered, Manually control steel coil inner bore shrinkage and stop.Max Feeding width: 300mm,coil ID range 508mm±30mm.Capacity: Max. 3 Ton.






2) Feeding Guide

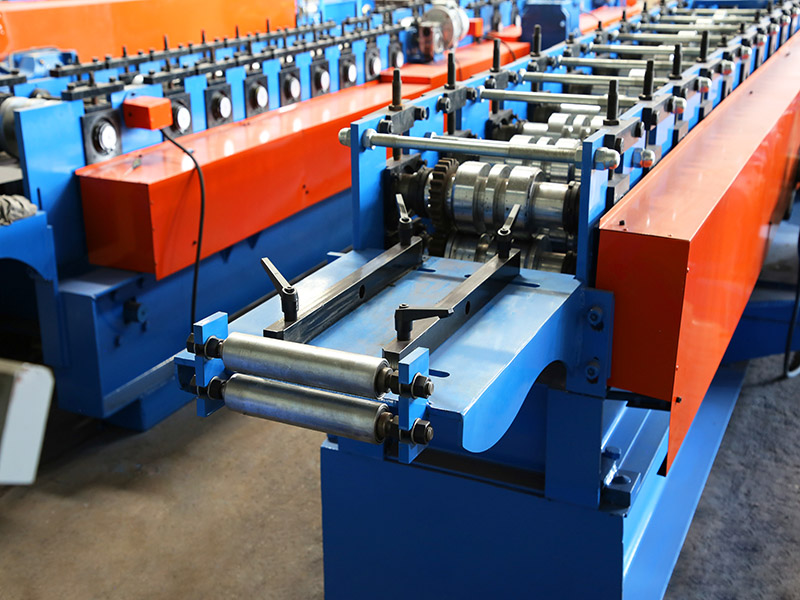

Light Duty Shelf Pillar Roll Forming Machine

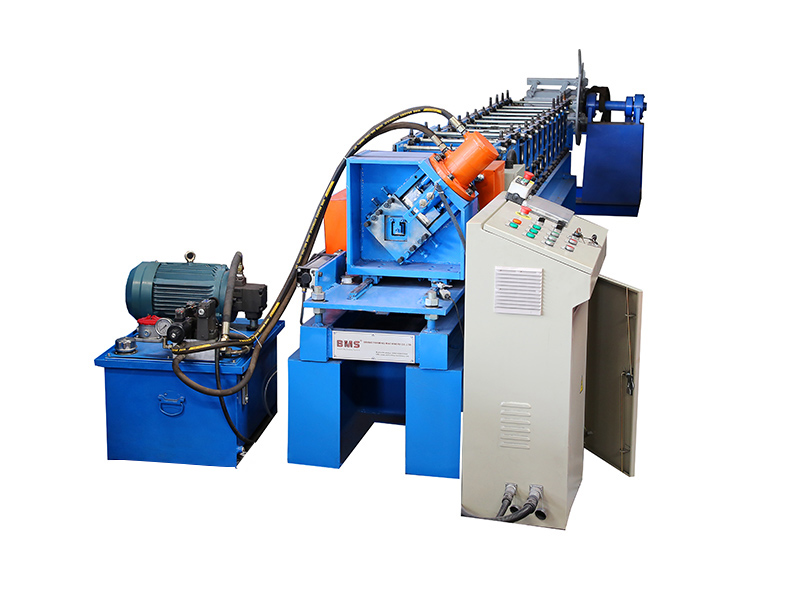

3) Main Machine

With feeding material guide, body frame made from H400 type steel by welding.
Side wall thickness: Q235 t18mm.
Rollers manufactured from GCr15 steel,CNC lathes,Heat Treatment,hard Chrome Coated.
with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).
Shafts Diameter=ф70,precision machined.
Gear/Sprocket driving,about 14-step to form.

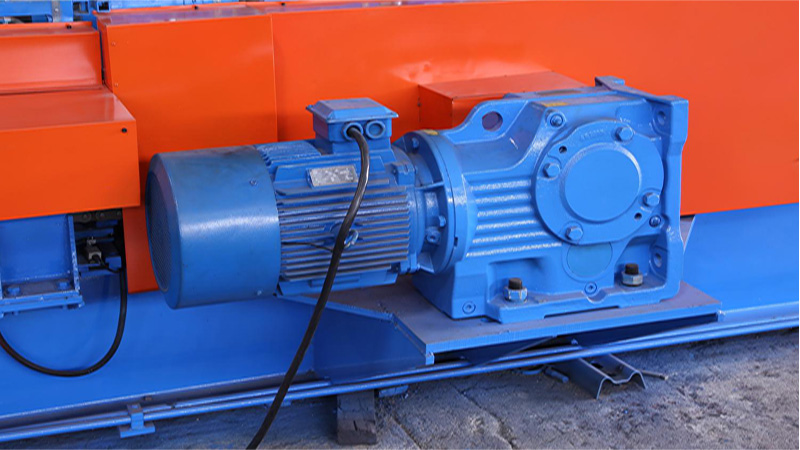

Main Motor=11KW , Frequency speed control.

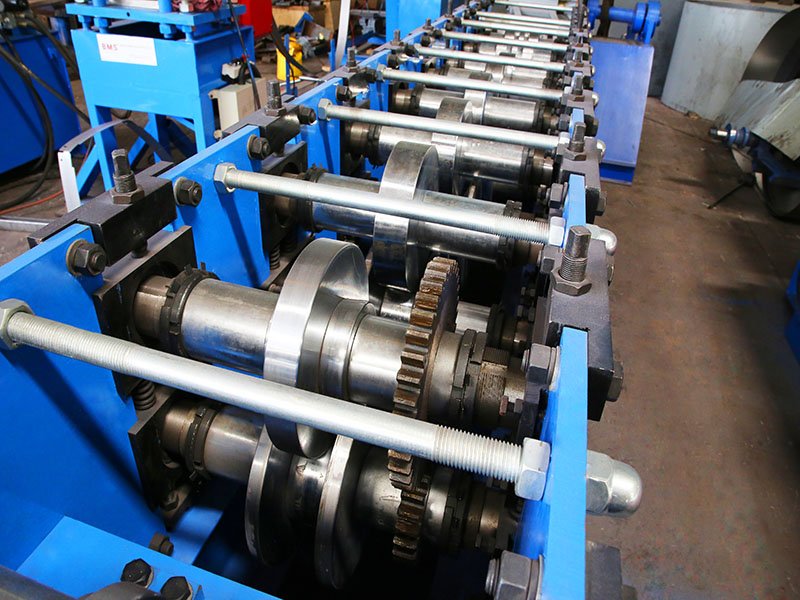

Light Duty Shelf Pillar Roll Forming Machine


Light Duty Shelf Pillar Roll Forming Machine

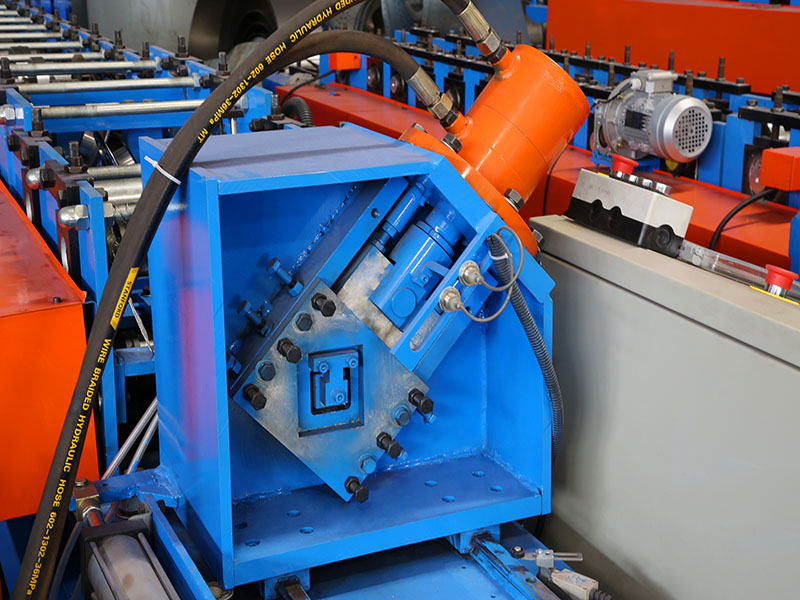

4) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.
Hydraulic motor: 7.5KW ;Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.

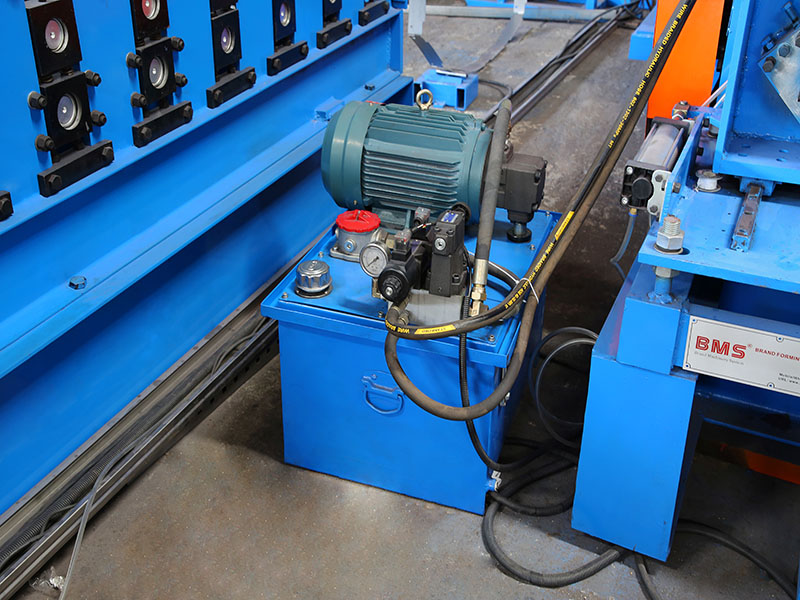

The cutting power is provided by the independent engine hydraulic station.


Light Duty Shelf Pillar Roll Forming Machine



Light Duty Shelf Pillar Roll Forming Machine

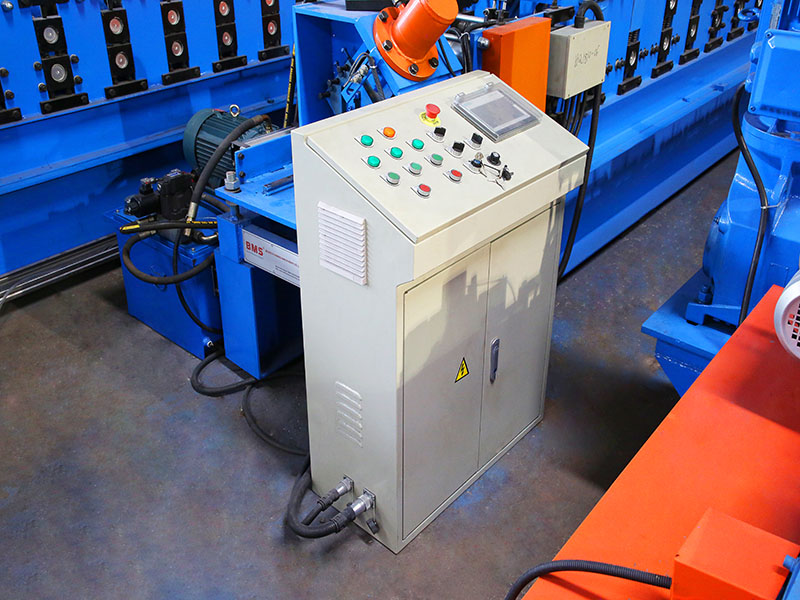

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


Light Duty Shelf Pillar Roll Forming Machine

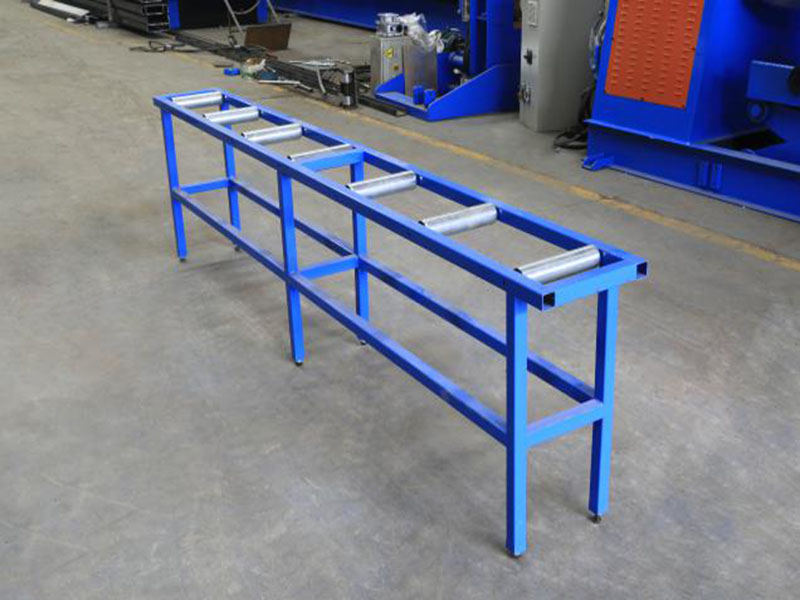

6)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

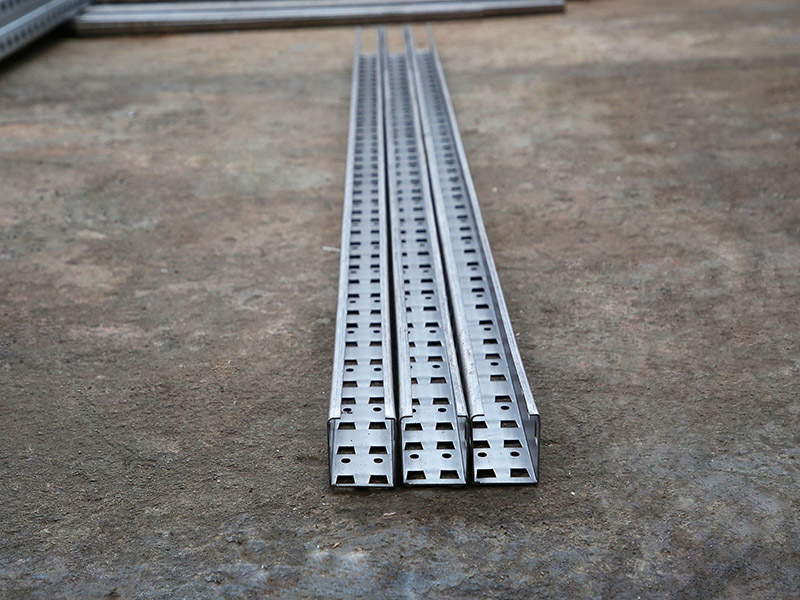

7)Product Show


Light Duty Shelf Pillar Roll Forming Machine



Packing Style

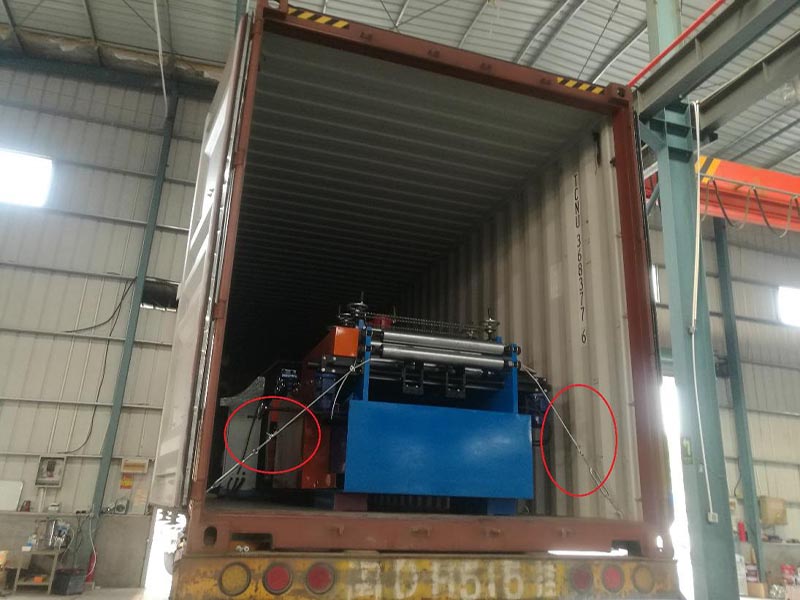

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.





After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
