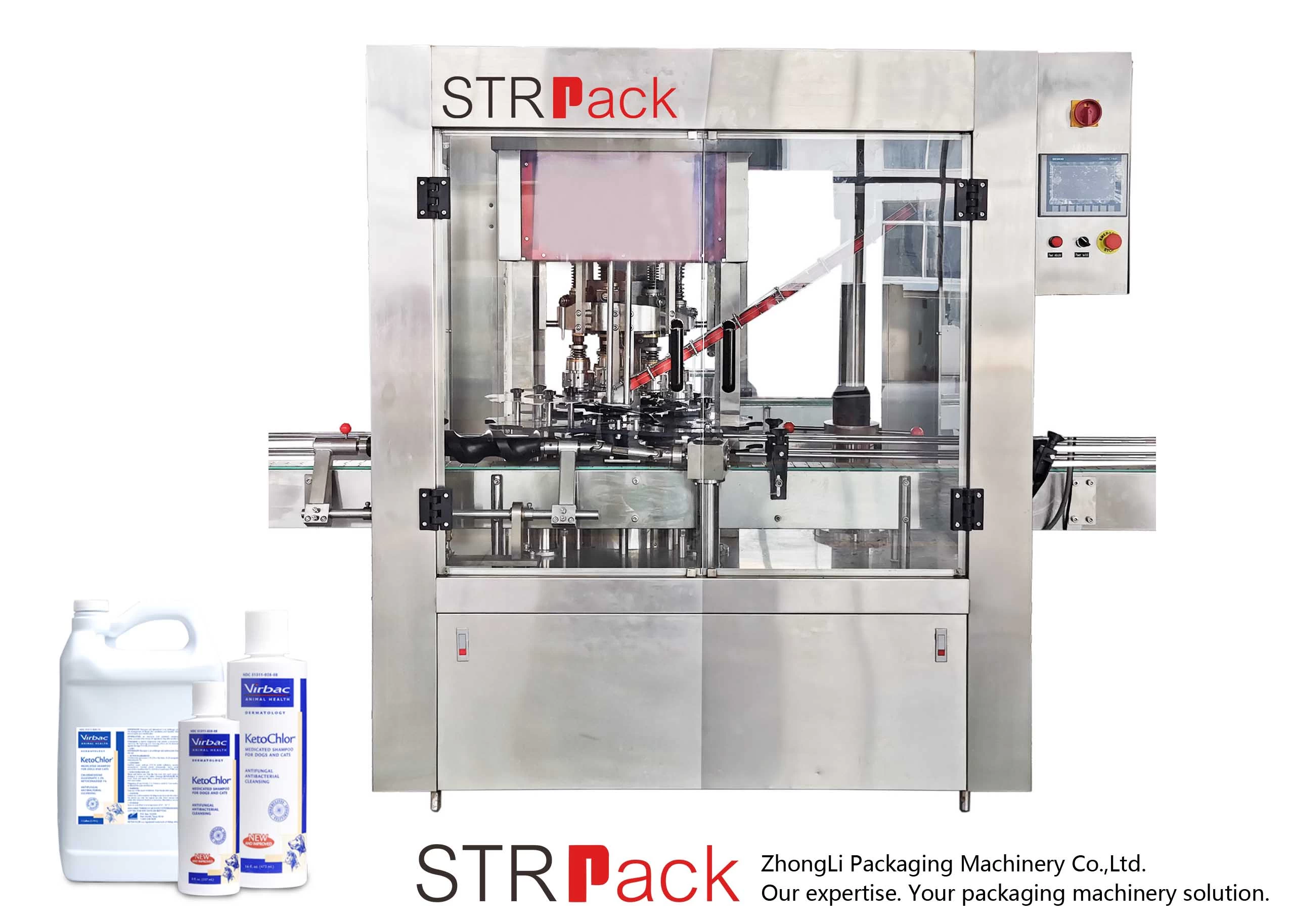

Automatic 8 Head Rotary Capping Machine
Brief Introduction:
This Automatic 8 Head Rotary Capping Machine is used
for closing plastic caps, especially for the caps which with lock ring. It
is widely used in industries like foodstuff, pharmacy, daily chemical, cosmetic, fertilizer etc.
PLC control system, rotary type structure, the machine is with function of
automatic cap feeding ,loading and closing.

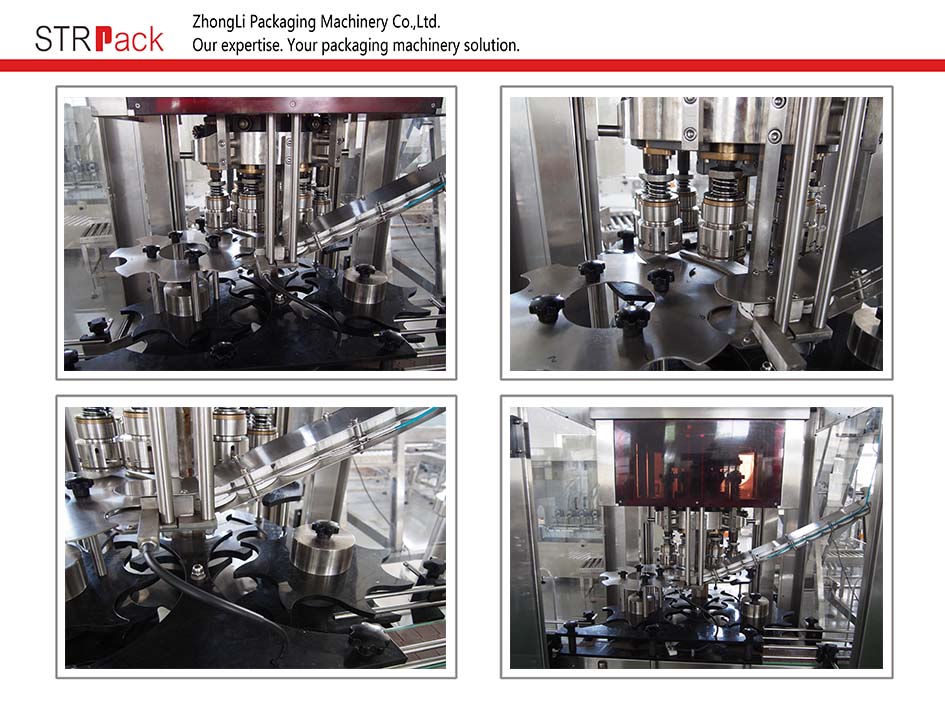

Machine come with 8 capping heads, can be made for screw type cap or press type
cap .
And there is clutch device on the capping heads to assure the capping effect.
For big size bottles like 2 to 5L ,machine will be made with 4 or 6 capping
heads accordingly.
Main Parameter:
|
No.
|
Model
|
SX-8
|
|
1
|
Speed
|
5000BPH for 1L bottles
|
|
2
|
Bottle Diameter
|
40-100mm
|
|
3
|
Bottle Height
|
60-250mm
|
|
4
|
Cap Diameter
|
φ20-φ55mm
|
|
5
|
Capping Head
|
8 /6/4
|
|
6
|
Power
|
2KW
|
|
7
|
Air Pressure
|
0.6-0.8Mpa
|
|
8
|
Voltage
|
220V/380V, 50Hz/60Hz
|
|
9
|
Weight
|
900KG
|
|
10
|
Dimension
|
2000*1030*2300MM
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
