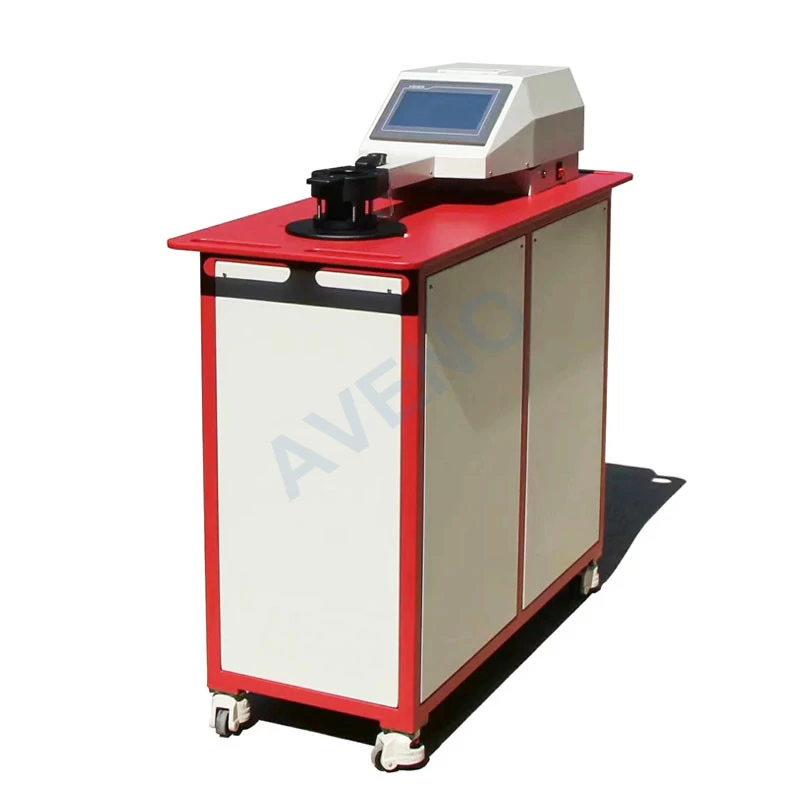

AG18B-Automatic Air Permeability Tester
Application Of Air
Permeability Tester
Automatic Air Permeability Tester is used to determine
the air permeability properties of fabric, suitable for many kinds of textile
fabrics, including industrial fabrics, textile products such as non-wovens and
other breathable materials.
Feature Of Air Permeability Tester
-

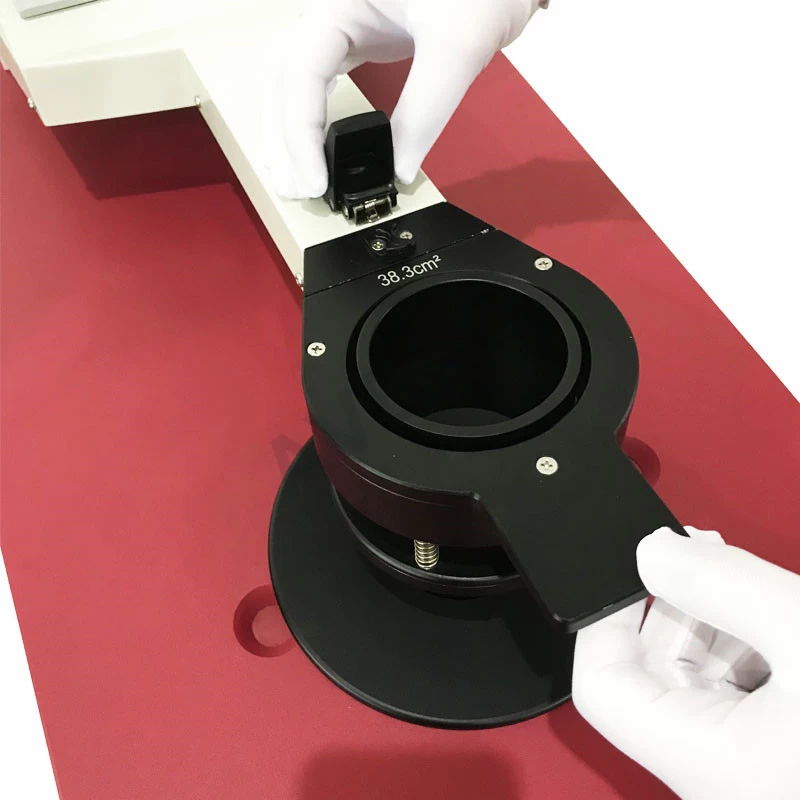

Automatic clip, automatic change nozzle,
achieve quickly testing.
-
Microcomputer processing, direct display test
results, no need to manual table
checking and calculation.
-
Built-in continuous test mode, the testing unit
can be switched according to need.
-

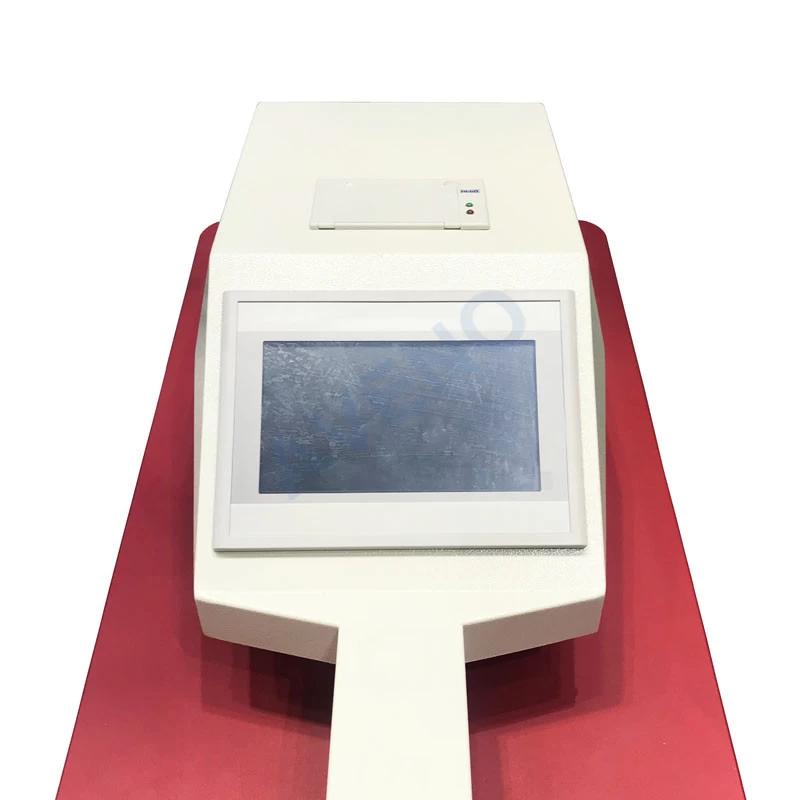

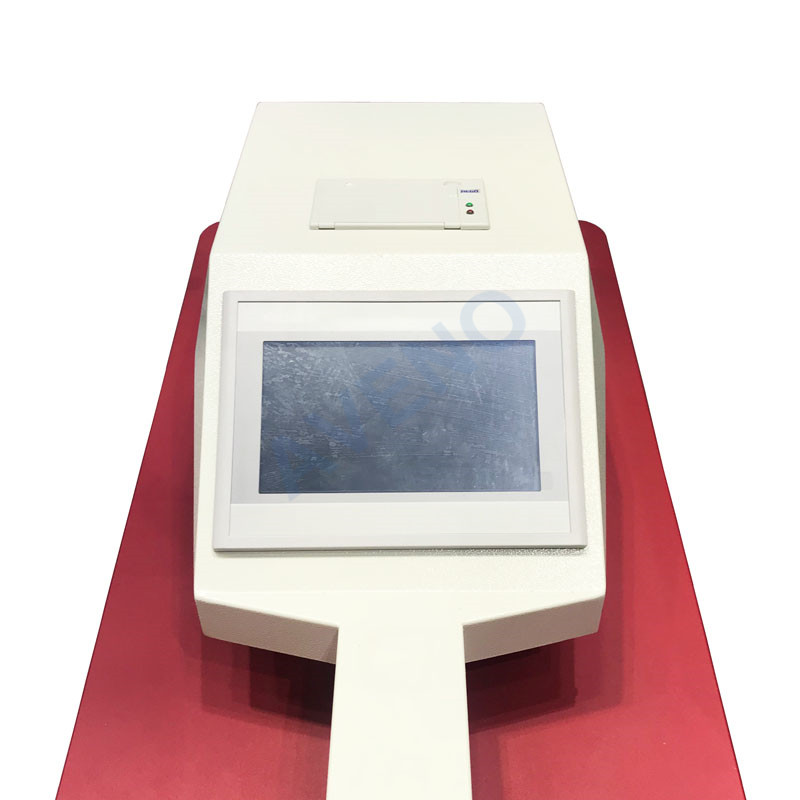

English and Chinese LCD menu operation, with
computer interface.
Standards Of Air Permeability Tester
GB/T
5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JIS L1096.
Key Specification Of Air Permeability Tester
|
Model
|
AG18B Automatic Air Permeability Tester
|
|
Test pressure
|
1-4000Pa(spray nozzle),
1-1000Pa(sample)
|
|
Measurable permeability
|
1-9999mm/s, ≤±2%
|
|
Measurable fabric thickness
|
≤12mm
|
|
Test area
|

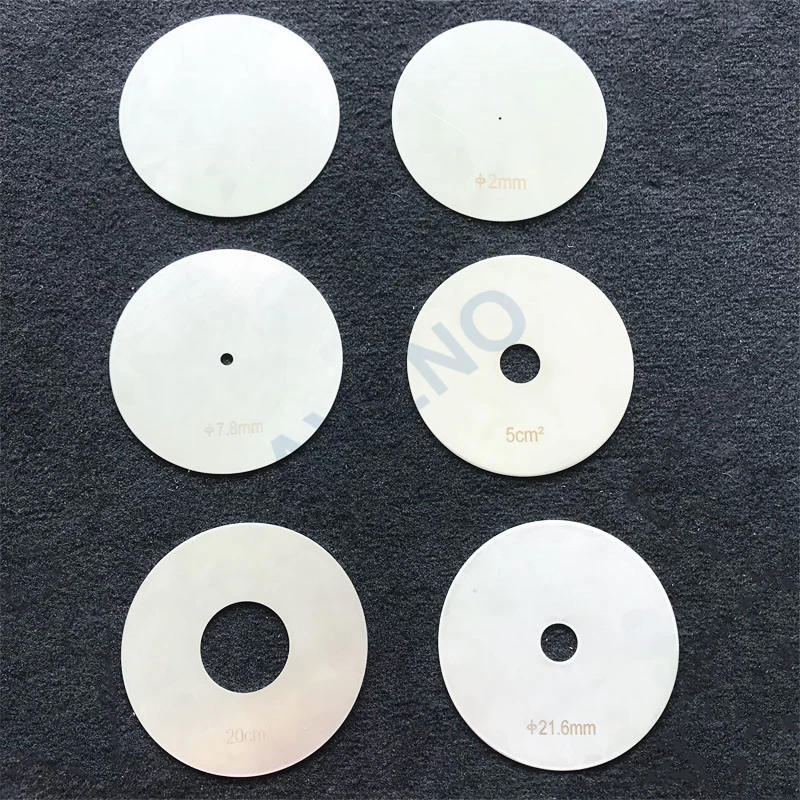

5cm2, 20cm2, 50cm2, 100cm2 φ50mm(≈19.6cm2), φ70mm(≈38.5cm2)
|
|
Printer
|
Thermosensitive micro printer
|
|
Data port
|
RS232
|
|
Power
|
AC220V, 50/60HZ
|
|
Dimension
|
107×67×108cm
|
|
Weight
|
75kg
|
