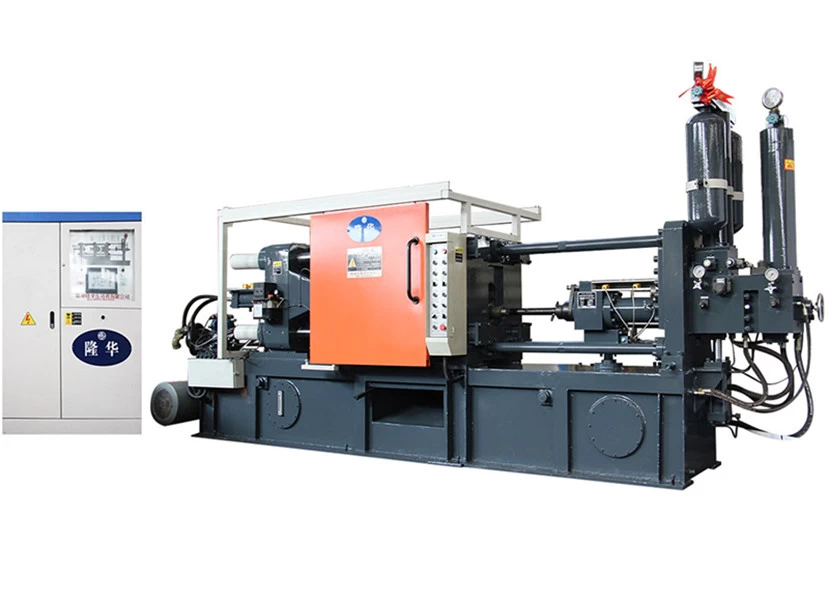

Automatic Aluminium High Pressure Die Casting Machine

Longhua Die Casting Machine is suitable for automobile engine cylinder block and cylinder head. Die casting machine for import and export inspection - free products




The product description

Longhua die casting machine is suitable for automobile engine cylinder block and cylinder head .The die casting machine saves energy and material.And reliable and durable.This die casting machine has an inner pitch of 480*480 mm.The firing stroke is 350 mm.

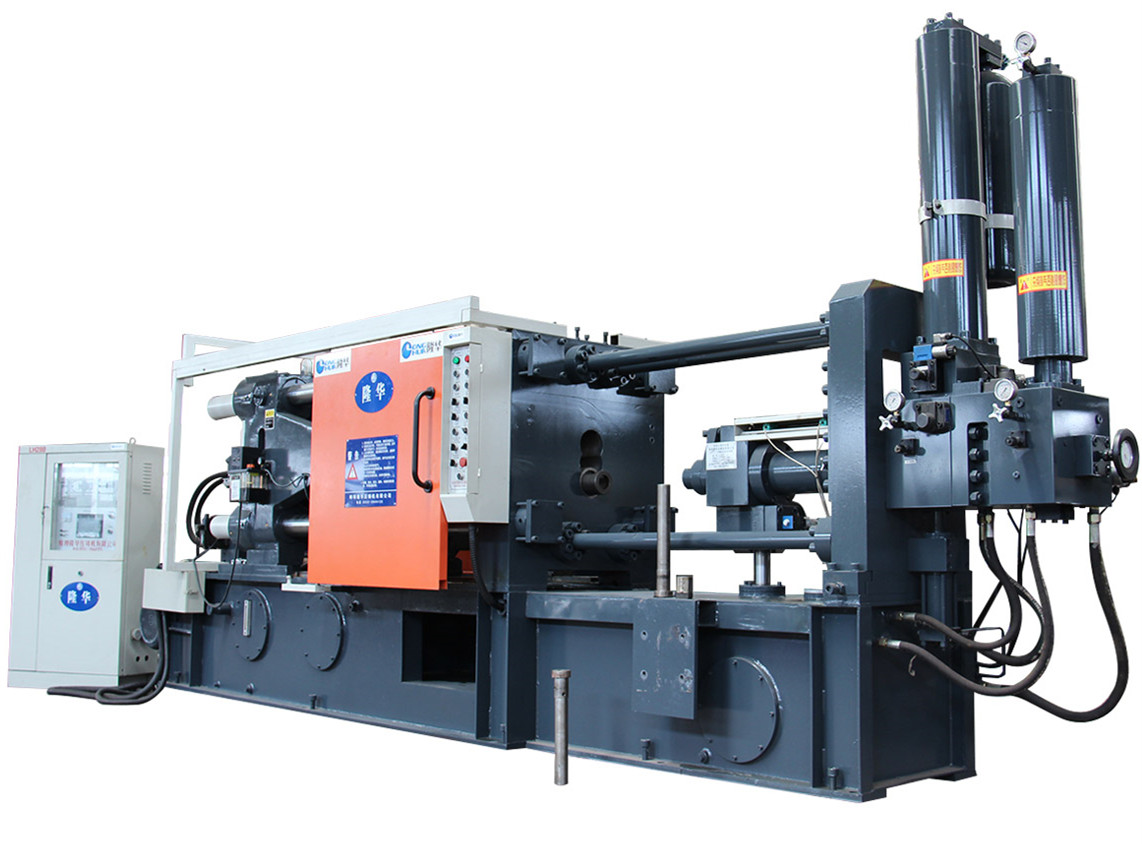

Reliable and durable die casting machine

Product parameters


LH series of standard parameter table (200 t)

 ITEMS

Unit

Specification

 HYDRAULIC WORKING PRESSURE

MPa

14

CLAMPING FORCE

KN

2000

 SPACE BETWEEN TIE BARS

mm

480*480

Tie Bar Diameter

mm

¢85

 DIE OPENING STROKE

mm

380

INJECTION FORCE(intensify)

KN

270


Plunger launch distance

mm

135

Injectionposition

mm

0  --  140

 PLUNGER DIAMETER

mm

¢50----¢70

INJECTION STROKE

mm

350


Casting pressure (intensify)

MPa

112/78/57


Casting Fiange Protrusion

mm

10


Casting Fiange Diameter

mm

110

 MAX CASTING AREA UNDER 40Mpa

CM2

450

 lnjection Weight(Al)

Kg

2.4

Die Height(Min--Max)

mm

200~550

 EJECTOR FORCE

KN

110

 EJECTOR STROKE

mm

80

Motor Capacity

Kw

15

Machine Dimensions  (L*W*H)

m

5.32*1.5*2.35

Referential Machine Weight For Uplifting

T

7

Oil Tank Capacity

L

600


WE reserve the right to make any technical improvement without further notice

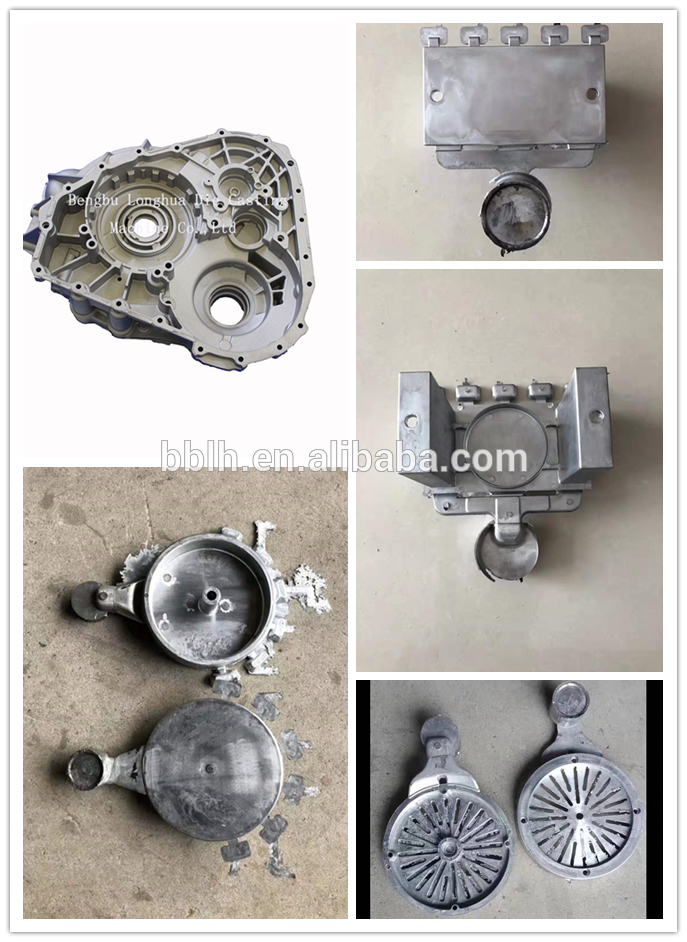

Related die casting


Company profile

Bengbu Longhua , founded in Bengbu, Anhui Province of China ,in 1982, is a professional high-tech enterprise engaged in the design, manufacture and sale of cold chamber die casting machine, die casting peripheral equipment, oil field equipment and new energy equipment (natural gas, nitrogen, wellhead, casing, raw materials, liquefied petroleum gas, special gas, compressor).

On November 7, 2017, Longhua won the national high-tech enterprise certificate!

On June 26, 2019, Longhua was successfully listed in the National Science and Technology Innovation Special Edition

Since 2006, the company has established die-casting machine production base with "anhui institute of science and technology", "hefei institute of Chinese academy of sciences" and other large institutions, and jointly developed and produced intelligent die-casting machine, oilfield equipment and new energy equipment


Longhua intelligent die casting machine and oil field equipment, new energy equipment project successively won: the state intellectual property office: "37 invention patent, three patents of utility model", "national torch plan a", "two national high-tech product certificate", "anhui province scientific and technological achievements certificate 18", "the casting machinery industry standard demonstration unit", "China quality association governing units," the contract heavy credit enterprise ", "import and export products exempted from inspection", "anhui private cross-border electricity association, vice President of units" honor.
