Automatic bottle barrel Foliar Fertilizer Liquid Fluid Fertilizer Filling Machine

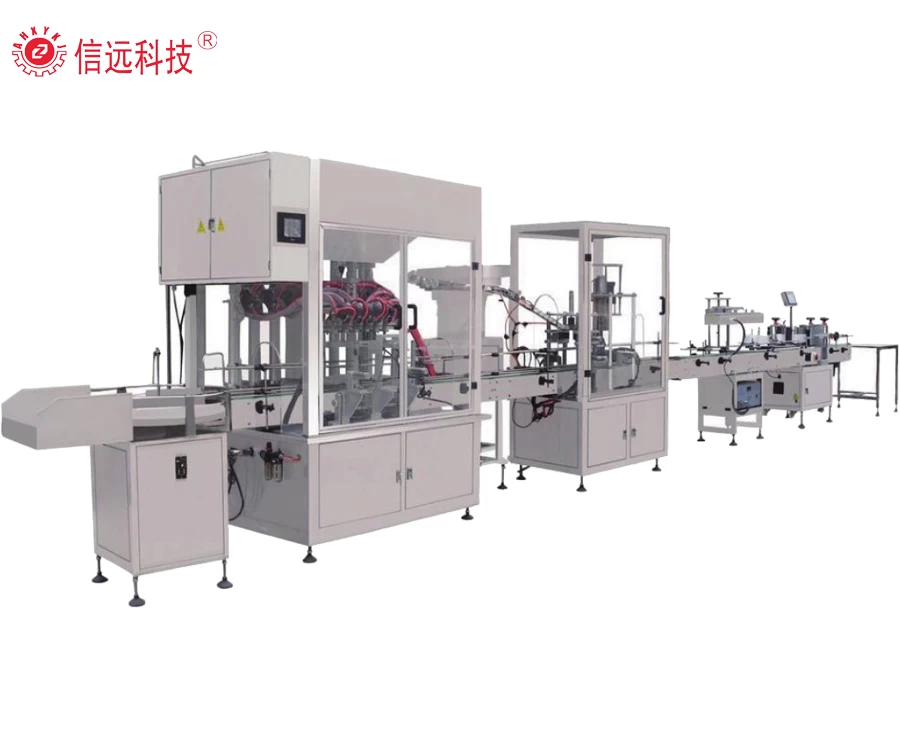

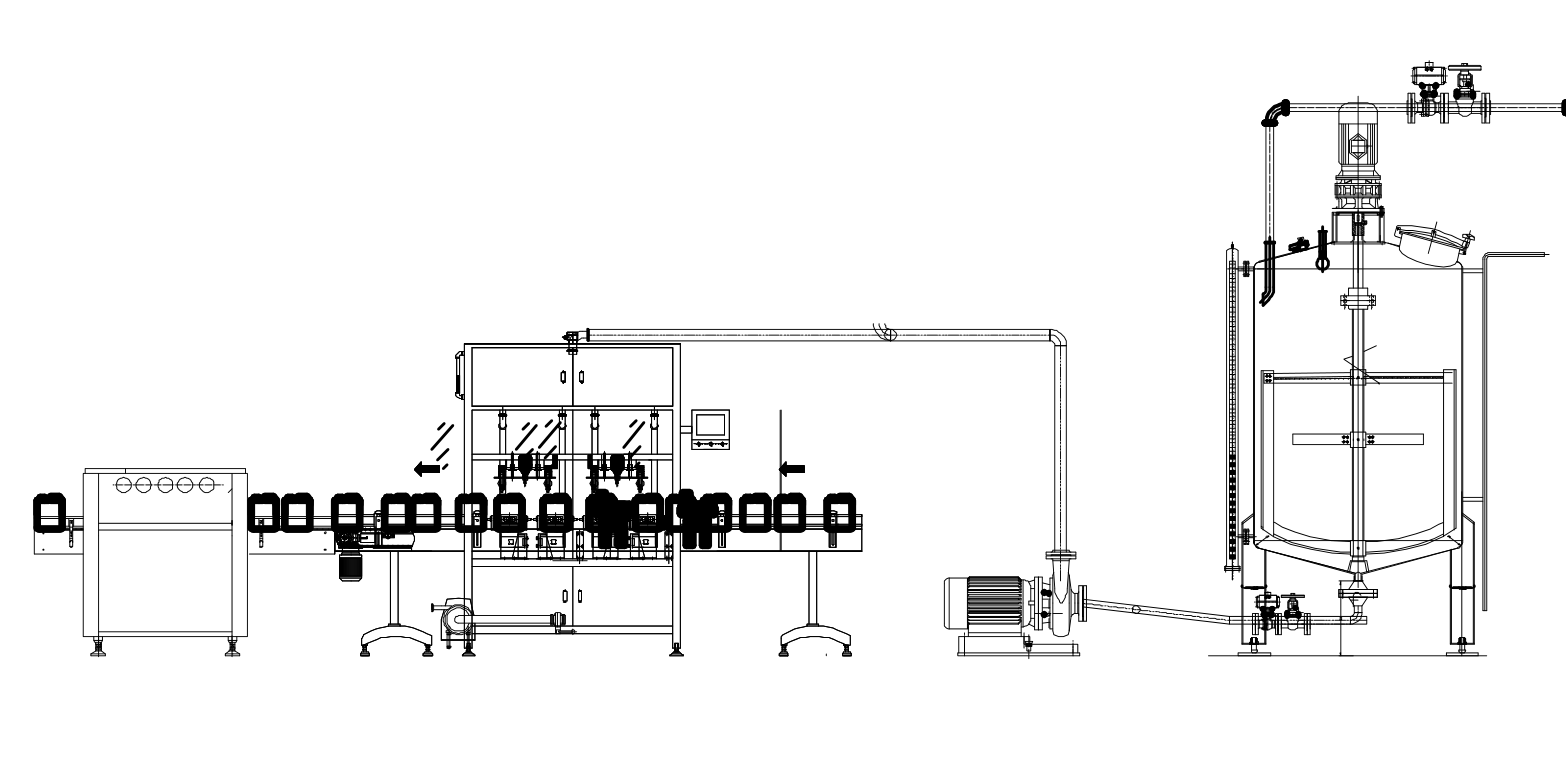

Liquid Fertilizer ingredients, mixing, filling production line



Anhui xinyuan has introduced a complete set of production equipment for liquid fertilizer filling machine since 2013, including automatic measuring ingredients, stirring and mixing, precipitation filtration, quantitative filling and other technological processes. In 2014, xinyuan launched the environmental protection project, which made the biogas liquid waste into a treasure, and became the fertilizer to solve the pollution problem of biogas.

Main techinical parameters:

1. User interface: DN65 material inlet pressure < 0.6 Mpa

2. Outside diameter of canned head: ф40mm.

3. Applicable bottleneck: min. 140*200*320mm, max. 260 * 290 * 260 mm;

4. Filling range: 5-30kg

5. Measurement accuracy: ±0.2% (note: the filling accuracy depends on the viscosity of the material and the continuity and stability of the material)

6. Canned speed: ≤ 250 barrels/h (5kg);

7. Air pressure: 0.6-0.7 mpa.

8. Gas consumption: 120L/ min.

9.  Power: AC 380V, 30 Hz. 1.6 KW

10. G.W.: 1000Kg

11. Outer diameter: 8700*1350*2300mm(L*W*H)

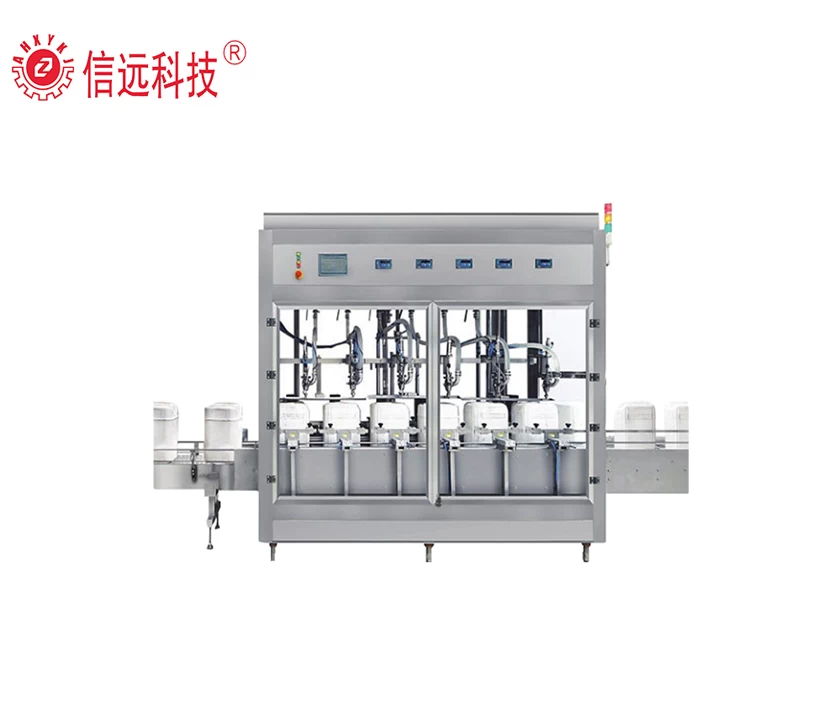

Liquid Fluid Fertilizer Filling Machine

Did you find our  machine interesting?

We will help you with selecting the machine, and suggest tailor-made solutions.


notice

1. provide customized design for special requirement

2. Provide optional device as per actual need


Technical Data:


Liquid fertilizer filling
Package Bottle Barrel
Shape Round/Square
Filling range(L) 0.1~1 5~30
Filling speed <4000bottles/h 8~12 barrels/min
Power supply AC 380V 50HZ
Air pressure(Mpa) 0.6
Accuracy ±1% ±0.1% to ±0.3%

Transportation&After Service

◎All the machine shall be packed in Export wooden box;

◎Engineers are available to do service abroad;

◎Training &Technical instructing lessons shall be provide during installation;

◎Video instruction installation is also available if customer have professional technical engineers;

◎One year warranty is provided for customer.
