Automatic Compact Vacuum Sealer for Sealing the Aluminum-laminated Case for Pouch Cell

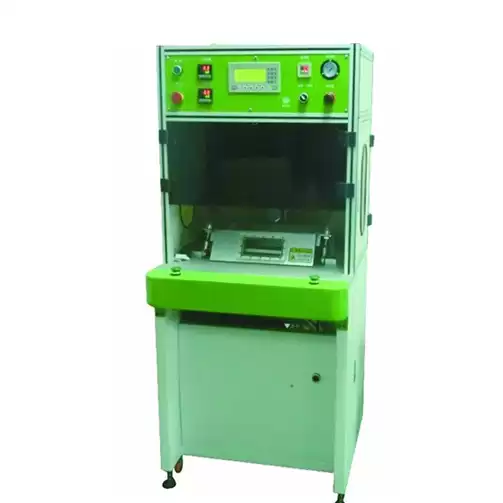

TMAX-BFZ200 is a compact vacuum sealer for sealing the aluminum-laminated case for pouch cell, which integrates temperature, pressure, and duration control  into one unit for easy handling without feedthrough of the glovebox.

SPECIFICATIONS:

Input Power

1. Single phase 110 VAC or 208-240 VAC (selectable at Product Options), 50 / 60 Hz

2. 600W power

Vacuum Level

1. Vacuum range:  -95 ~ 0 kPa adjustable

2. The vacuum pump is not included.

Sealing Die

1. Max battery size: ≤ 200 mm in length and width, ≤ 12 mm in thickness

2. Sealing width: 5 mm (customizable)

3. Sealing length: ≤ 200 mm

4. Sealing evenness: ≤ 0.03 mm overlapping precision of top and bottom sealing dies

5. Sealing die type: hard type

Sealing Pressure

1. Pressue range: 0 ~ 7 kg/cm² adjustable. Vacuum chamber lid and sealing die need to be driven by compressed high purity inert gases with recommended 60 psi pressure.

2. Consumption: ~ 0.2 L compressed air per sealing

3. Please use high purity inert gases (Ar or N2), when operating in the glovebox. Using Air Compressor driven when operating outside the glove box.

4. Please note the air compressor is not included and not recommended to  use in the glove box.

Sealing Temperature

1. Temperature range: 0 ~ 250  adjustable with control accuracy of +/- 2

2. Recommended temperature: 200  for top sealing die,and  160  for bottom sealing die

Sealing Time

0 ~ 99 seconds adjustable (3 ~ 4 seconds recommended)

Net Weight

50kg

Product Dimensions

600mm*500mm*1500mm

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Application Notes

1. Please wear gloves to operate the machine.

2. Beware of the automatic vacuum chamber lid. Only one operator is allowed for this equipment.

3. Please clean the sealing dies after each use. Clean the sealing die after it has cooled down to avoid corrosion by the electrolyte.

4. Check the level and smoothness of sealing die surface every week. If there is serious damage to the sealing die, please contact TMAX to order a replacement.

5. Lubricate the cylinder every week

6. Check the screws in sealing dies and stage every month. Make sure they are tightened.
