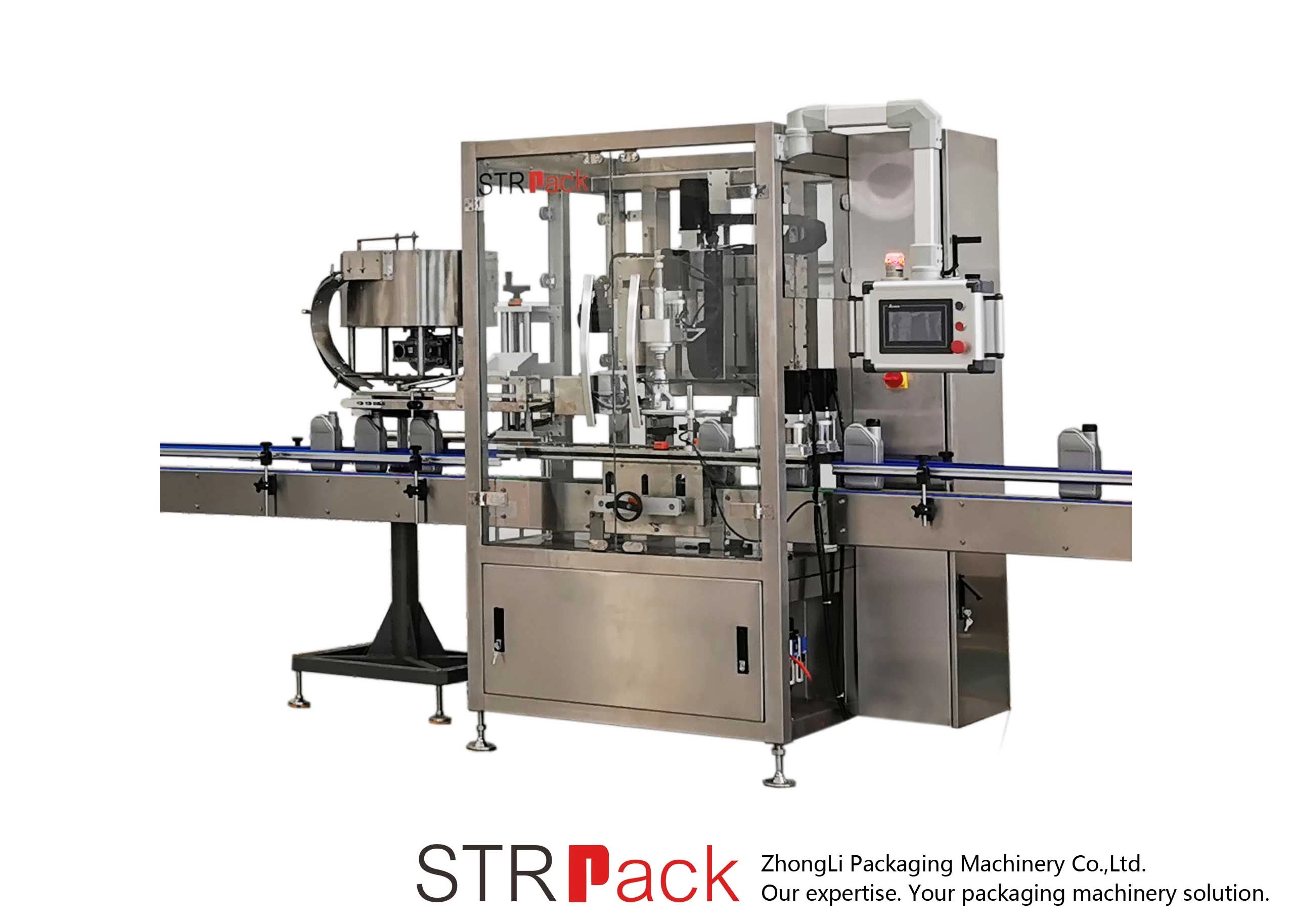

Automatic Continuous Capping Machine

This machine is specially designed for 1-5L lubricant products. It adopts CNC single-track electric single-head grab-type tracking screw cap.


  • Brand NameSTRPACK
  • CertificationISO CE
  • Warranty:2 Years

Automatic Continuous Capping Machine



Brief Introduction:

This machine is specially designed for 1-5L lubricant products. It adopts CNC single-track electric single-head grab-type tracking screw cap.

France Schneider servo system, France Schneider PLC programmable control, touch screen man-machine interface operation, all parameters are evenly modified in the touch screen.

Automatic gripping and capping are completed by the servo motor, and the movement is precise and the speed is fast. The servo system + torque module controls the capping head, and the cap tightness is freely set.

When the capping head is working, the set torque is automatically stopped. Electric rotary type capping machine adopts double photoelectric screening for positive and negative cover, and the screening pass rate is 100%.

The whole machine is made of 304 stainless steel material.




Main Parameter:

No.

Model

SX-60C

1

Speed

0-100pcs/Min

2

Cap Type

Screw cap

3

Bottle Diameter

30-110mm

4

Bottle Height

50-250mm

5

Cap Diameter

18-80mm

6

Power

3KW

7

Air Pressure

0.6-0.8Mpa

8

Voltage

220V/380V, 50Hz/60Hz

9

Weight

800KG

10

Dimension

2000mm*1200mm * 2050mm




After-sales Service:

(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
