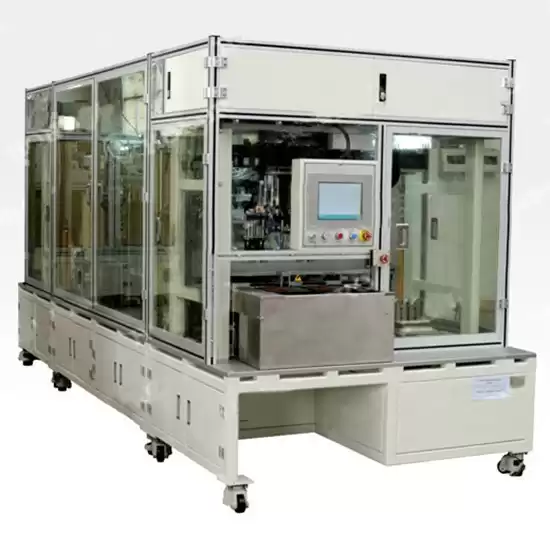

Automatic Electrolyte Filling Machine with Double Station for Pouch Cell Making
Functions
● The equipment is mainly used for pouch cell of lithium ion batteries assembly .It can achieve automatic vacuum electrolyte injection,diffusion°assing , vacuum sealing, manual loading and unloading materials,etc.
Features
● Manual feeding, manual injection fluid first and then weighing, scan code.
● Automatic vacuum injection, diffusion°assing, sealing.
● Injection pump and control box independent with equipment isolation convenient to adjust parameters, avoid pollution and corrosion.
● Head component structure adopts movable roller structure, convenient service, maintenance and dismantling.
● Equipment placed in drying room or common room, convenient install and dismounting transition part.
● Auto electrolyte-mixing system, remove air bubbles, prevent injected liquid drops.
● Injected electrolyte station using vacuum injection to ensure that the electrolyte instantly penetrate into the cell.
● Filler, static and pre-packaged merged into one station, smaller device convenient servicing and maintenance.
Technical Parameters(for reference)：
|
ITEM
|
Main parameters
|
|
measures
|
(L*W*H):1030*1200*2000MM
|
|
Weight
|
About 0.4T
|
|
Power
|
AC220V ±10% 50HZ/60HZ, 0.8KW
|
|
Air source
|
≧0.7Mpa,30L/S
|
|
Applicable range
|
H:40-170mm W:50-170mm T:2.5-12mm
|
|
Vacuum source
|
≧-95Kpa,80L/S
|
|
Capacity
|
4PPM
|
|
Action
|
≧98%
|
|
Liquid injected volume
|
0-50g
|
|
Liquid injected precision
|
≤±1%
|
