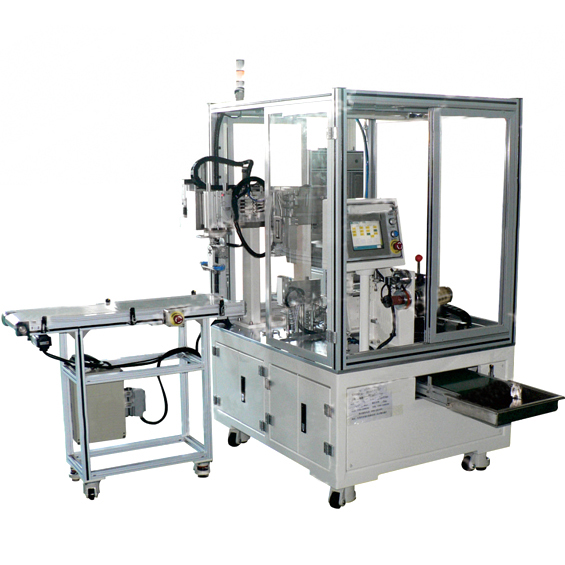

Automatic U type Sticking Film Machine
Functions
● This equipment is suitable for the flexible packaging lithium batteries PP surface protective film.
Features
● Servo fixed-length puller, floating roller automatic tensioning.
● Drawstring to bring in and out, step by step control of roller coated.
● Vertical gas rose axis roll type feeding.
● PLC control, touch screen to adjust parameters.
Technical Parameters(for reference)：
|
ITEM
|
HBDCS200(single station)
|
TMQ200(double stations)
|
|
Measure
|
1960*1000*2000mm(L*W*H)
|
2100*1950*2000mm(L*W*H)
|
|
Weight
|
About 0.8T
|
About 1.2T
|
|
Power
|
AC220V/50HZ, 2.5KW
|
AC220V/50HZ, 3KW
|
|
Air source
|
≧0.6Mpa,40L/Min
|
≧0.6Mpa,40L/Min
|
|
Vacuum source
|
≤-0.095Mpa,80L/Min
|
≤-0.095Mpa,80L/Min
|
|
Applicable range
|
H:50-200mm*W:60-200mm*T:2.5-10mm
|
H:50-200mm*W:60-200mm*T:2.5-10mm
|
|
Capacity
|
10EA/Min
|
20EA/Min
|
|
Action
|
≧99%
|
≧99%
|
