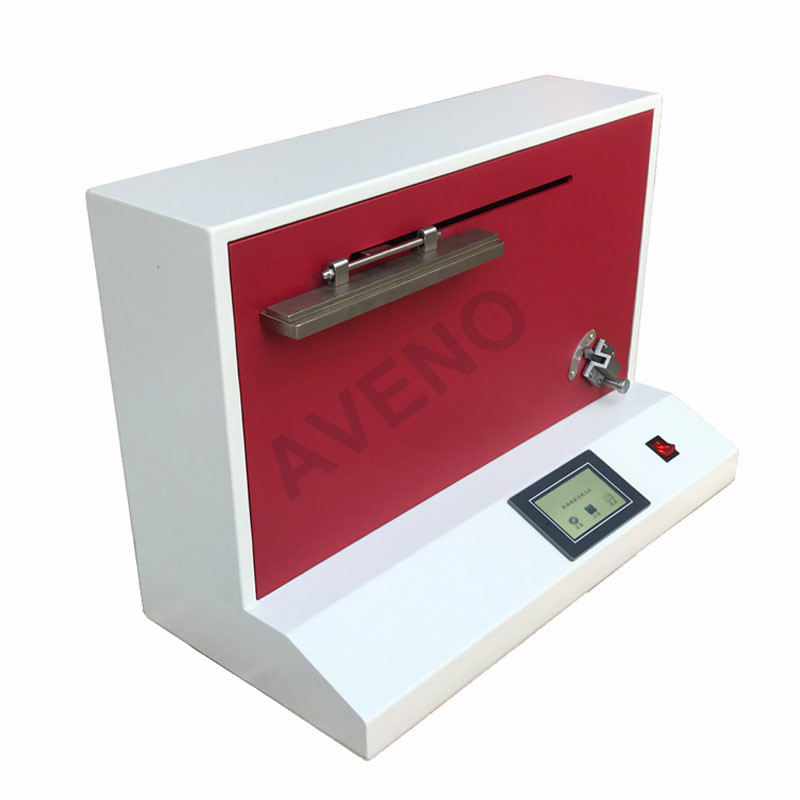

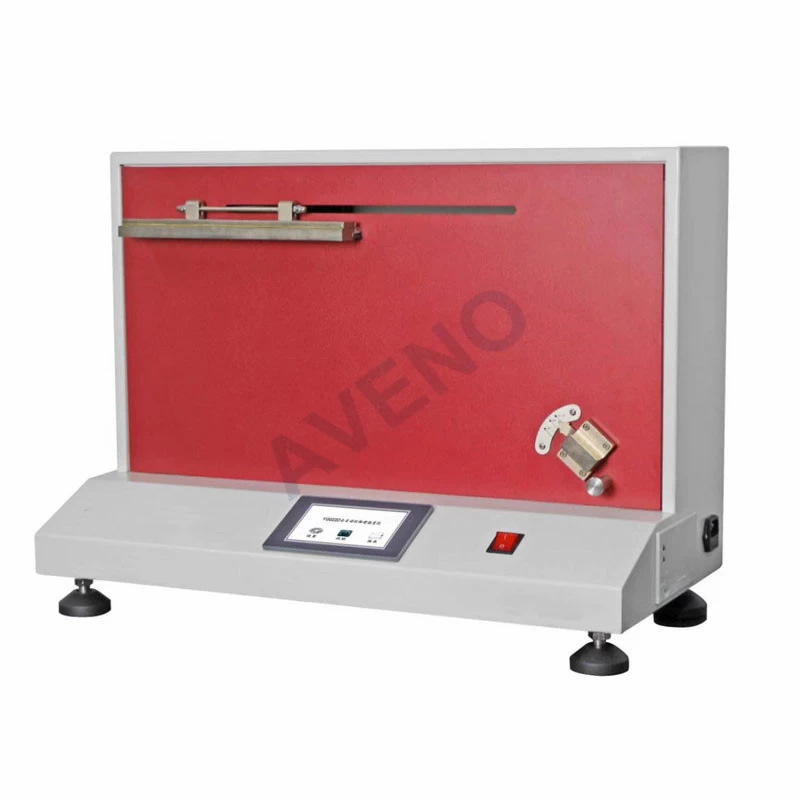

AG35-Automatic Fabric Stiffness Tester
Application Of Automatic Fabric Stiffness Tester
Automatic Fabric Stiffness Tester is used for the determination of the stiffness of textiles such as cotton, wool, silk, hemp, chemical fiber and other types of woven fabrics, knitted fabrics, and general non-woven fabrics, coated fabrics, and the like. Also used for stiffness measurement of flexible materials such as paper, leather, and films.
Feature Of Automatic Fabric Stiffness Tester
-
Host operating mode: microcomputer control, infrared stealth bevel detection, LCD display, report printing.
-
Online working mode: professional analysis software, computer operation, report statistics, printout.
Standards Of Automatic Fabric Stiffness Tester
ZB WO4003, GB/T18318, ASTM D 1388, IS09073-7, BS EN22313
Key Specification Of Automatic Fabric Stiffness Tester
|
Model
|
AG35
Automatic Fabric Stiffness Tester
|
|
Extended length range
|
0.5-20.5cm
|
|
Measurement accuracy
|
0.01cm
|
|
Measuring angle
|
41.5°, 43°, 45° adjustable
|
|
Specimen size
|
2.5×25cm
|
|

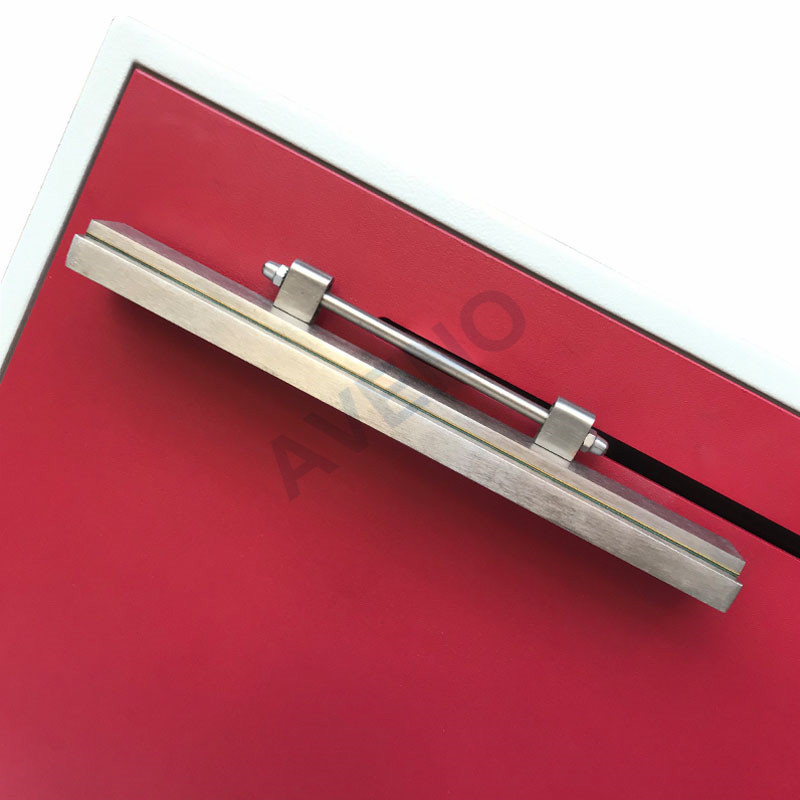

Specimen pressure plate
specification
|
2.5×25cm
|
|
Sample plate pushing speed
|
0.3cm/s, 0.4cm/s, 0.5cm/s
|
|
Power
|
AC220V, 50/60Hz
|
|
Dimension
|
470×290×405mm
|
|
Weight
|
18Kg
|
