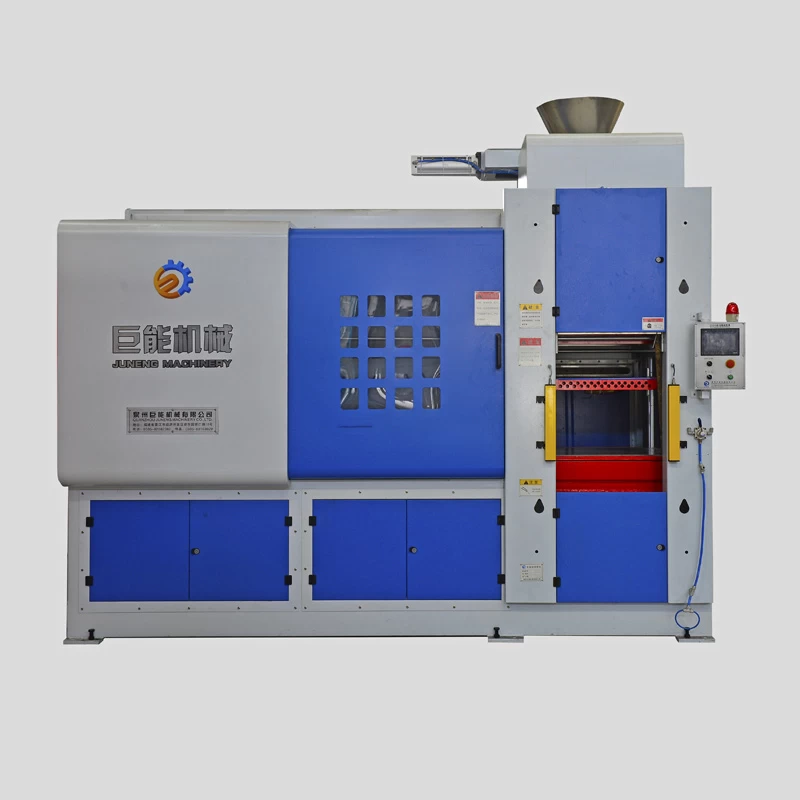

Automatic Horizontal Casting Molding Machine
It is suitable for wide range of castings, not only auto parts, like cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clamp.
ADVANTAGES:
1) Over 30 years experience in brass/iron casting equipment.
2) First and most accepted China brand.
3) Most competitive price and quality.
4) Short delivery time.
5) Instant aftersale service on line.
6) Import and Export License.
7) OEM.
MAIN TECH.SPEC:
|
Model
|
JN6171
|
|
Sand size(mm)long(L)×wdith(B)
|
610×710
|
|
Modeling method
|
Start blowing sand+squeeze
|
|
Modeling speed (excluding core length)
|
30 seconds/floor
|
|
Compressed air consumptio
|
1.3m³
|
|
System air pressure
|
0.8Mpa
|
|
Using voltage
|
AC220V orAC380V
|
|
Using motor power
|
18kw
|
|
Hydraulic system,maximum pressure
|
6Mpa
|
|
Sand type weight
|
250kg
|
APPLICATION:
Widely used in machinery parts, auto and motorcycle parts, valves, bearings, etc .
More competitive for those products require inner sand moulding machine.
SALE & AFTER-SALE SERVICE:
1）Warranty 1 year free.
2）Lifetime maintenance.
3）Afersale service: instant and fluenct English service, by all kind of methods.
4）E.g. person to person communication, or phone, by local agent repair(such as India, Iyan, etc.), or other way by negotiation.
