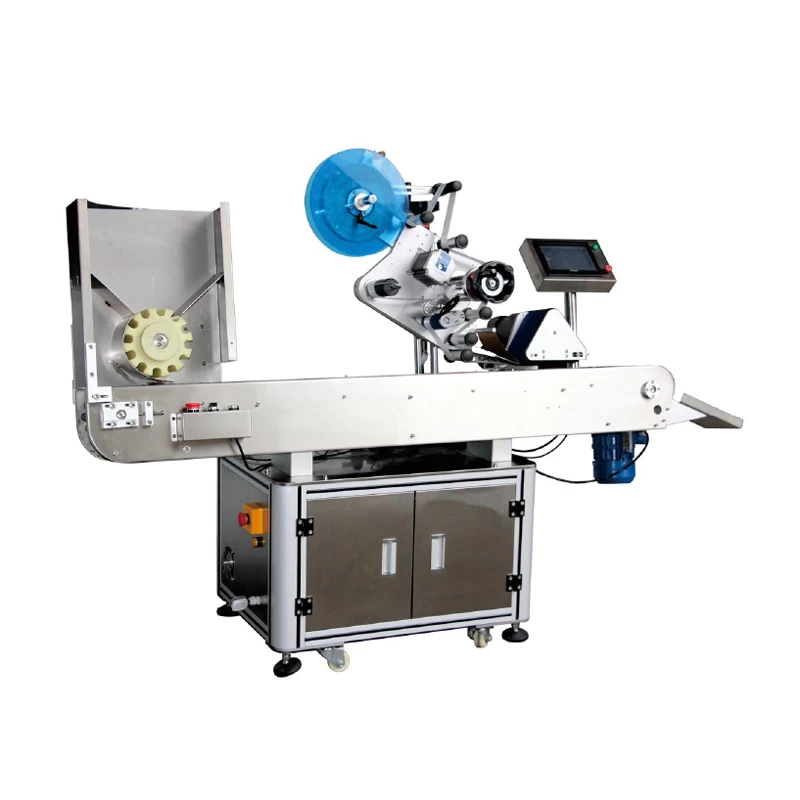

Automatic horizontal round bottle labeling machine for ampoules pen

This automatic horizontal round bottle labeling machine applicable labels: stickers, adhesive film, electronic monitoring code, bar code and so on.



Automatic horizontal round bottle labeling machine for ampoules pen

Customized And OEM Service Available

Round Bottle Labeling Machine

Scope of application

This Automatic horizontal round bottle labeling machine pplicable products: round bottles with diameters of 16mm-22mm (other specifications are made according to requirements).

The bottle labeling machine applicable industries: widely used in food, wine, medicine, daily chemical, toys, stationery, electronics, hardware, plastic and other industries.

Examples are lipstick labeling, lipstick labeling, oral liquid labeling, penholder labeling, etc.


Functional characteristics

1. flexible bottle sorting technology and flexible label technology are used to separate bottles and label smoothly, and the performance is stable.

2. The labeling quality is excellent, and the label head and tail have a high coincidence with each other by using the ribbon winding correction technology.

3. High stability, Panasonic PLC + dimension control touch screen + Panasonic needle Tong Eye + Louis Testing / Italian Testing label Eye composed of advanced electronic control system, support equipment 7X24 hours high-speed operation;

4. Intelligent control, automatic photoelectric tracking, with all the labeling, fault prompting and other functions; touch screen control, human-computer interaction interface with the operation of teaching functions, parameter modification is intuitive and clear, simple switching of various functions;

5. Mainly made of stainless steel and high-grade aluminum alloy, the structure is firm, beautiful and generous, in line with GMP production specifications;

6. With production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management;

7. Optional functions: hot code / spray code, automatic loading and unloading, automatic feeding, adding labeling device, non-standard bottle removal function (customized according to customer requirements).


Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model

MZH-L

Labeling speed

100~300pcs/min

Applicable label width

10~100mm

Conveyor speed

5~25mm/min

Applicable product diameter

Ø50~Ø90mm

weight

160kg

Applicable product height

10~100mm

Voltage

220V 50Hz

Applicable marking outer diameter

Ø280mm

power

1.2kw

Labeling accuracy

±0.5mm

Conveyor direction

From left to right

Label out speed

5~25m/min

equipment size

2300*640*1500mm
