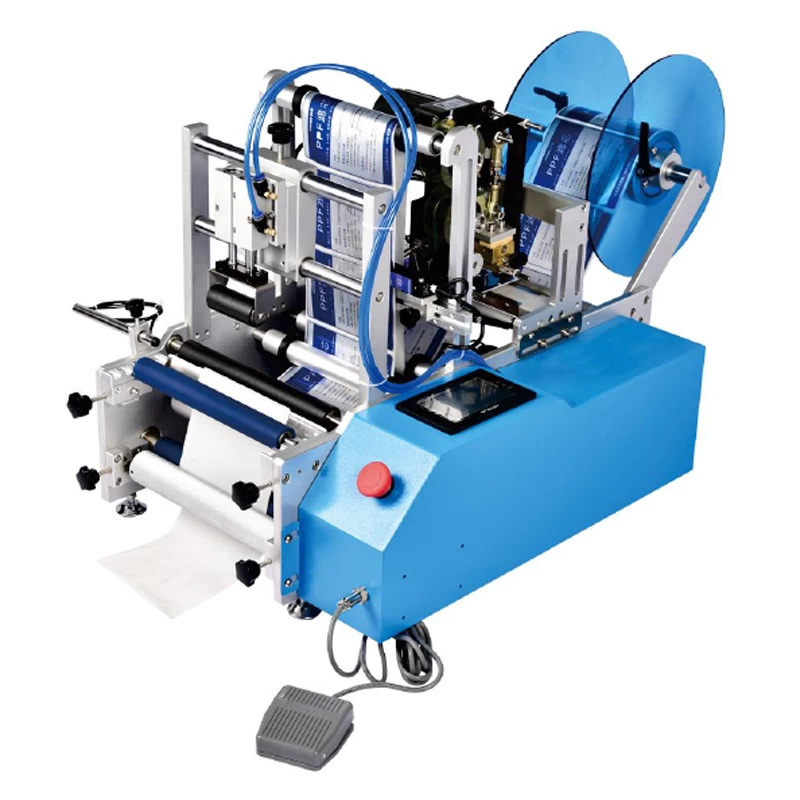

Semi automatic horizontal shampoo wine round bottle labeling machine

This Semi automatic horizontal shampoo wine round bottle labeling machine applicable labels: stickers, adhesive film, electronic monitoring code, bar code and so on.



Semi automatic horizontal shampoo wine round bottle labeling machine

Customized And OEM Service Available

Round Bottle Labeling Machine

Scope of application

This semi automatic horizontal shampoo wine round bottle labeling machine applicable Products: Products that need to be labeled/coated on the circumference and cone can be labeled with single or double labels.

The bottle labeling machine applications: widely used in food, daily chemical, wine, medicine, toys, cosmetics, electronics, hardware, plastic and other industries.

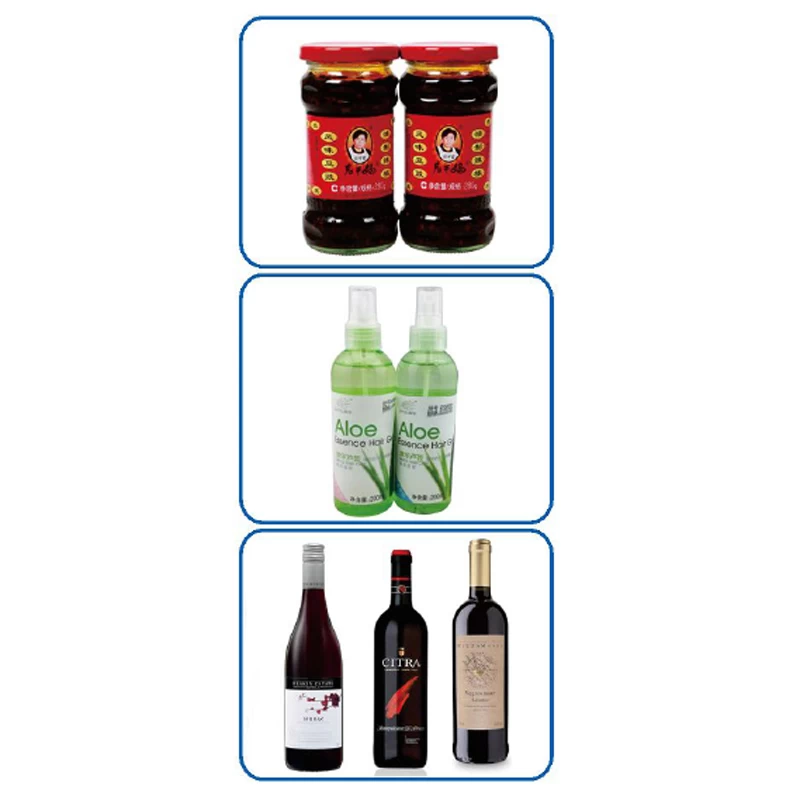

Application examples: Oral liquid bottle labeling, cillin bottle labeling, xylitol labeling, shampoo bottle labeling, wine double labeling, wine fixed-point labeling, etc.


Functional characteristics

The 1. is powerful, the labeling function can be switched and positioned arbitrarily, and the spacing can be adjusted flexibly.

2. tapered labelling, with taper adjustment knob, simple and easy to understand.

3. High Quality Labeling effect, with product positioning, label deviation double positioning, label head and tail docking coincidence, no wrinkles, no bubbles;

4. Easy adjustment, one-button switch of various functions, simple and fast label switch of different labels, improve efficiency;

5. Safe and tidy, in line with GMP production needs, the main materials are stainless steel and high-grade aluminum table gold, strong and durable;

6. stable performance, PLC+ optical fiber sensor electronic control system control, support equipment for a long time operation;

7. production management is convenient and efficient, with label counting, power saving mode, photoelectric tracing tag function;

8. Color touch screen control, with powerful data memory function, all bottles only need to adjust once, when switching bottles only need to adjust the data without any further adjustment can start operation production, support a group of data, simple and efficient;

9. Optional functions: hot code/jet code function, circumferential positioning function, automatic induction (customized according to customer requirements).


Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model

MZH-L

Label out speed

8m/min

Applicable label length

15~380mm

Labeling speed

20~40pcs/min

Applicable label width

10~220mm

weight

45kg

Applicable product diameter

Ø15~Ø120mm

Voltage

220V 50Hz

Applicable marking outer diameter

Ø280mm

power

500 w

Applicable to marking inner diameter of volume

Ø76mm

equipment size

1000*470*550mm

Labeling accuracy

±0.5mm
