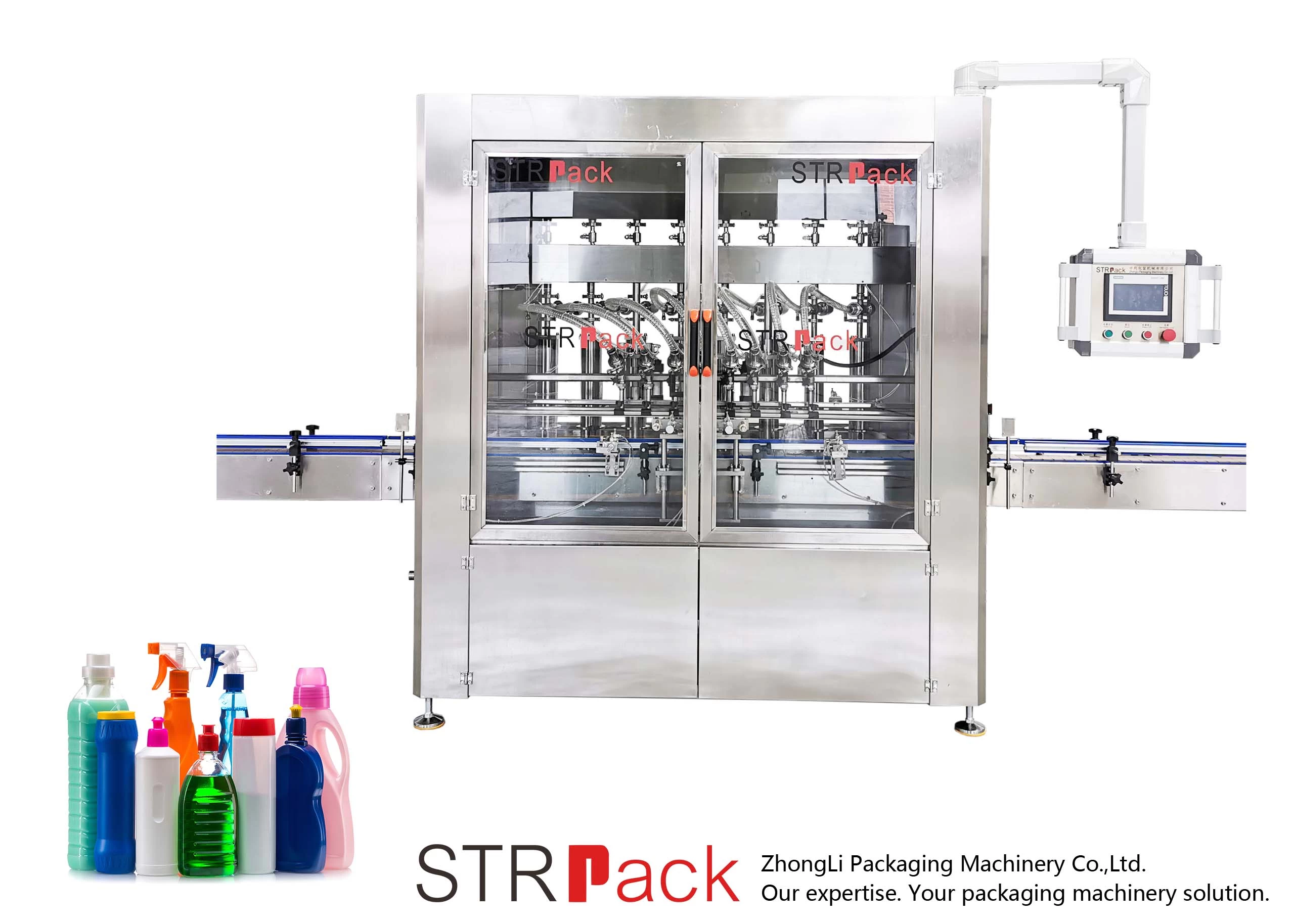

Automatic Piston type Cream Filling Machine
Brief Introduction:
This Filling Machine is piston type filling machine which is suitable for filling both liquid and cream products.
The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 6/8/10/12/16 /20 heads.
The filling system is driven by servo motor which assure high filling accuracy ,also easy to set filling volume on the touch screen directly.
It is widely used in the cosmetic, foodstuff, specialty chemical, pharmaceutical, and personal care industries.
Features:
◎Made by high quality 304 Stainless steel,
it is durable.
◎316 stainless steel product contact parts
is available for optional according to product features.
◎Dosing system is driven by servo motor, it
assure high filling accuracy.
◎Liquid receive tray is available in case any dripping from filling nozzle.
◎Diving filling head is available for optional for filling foamy liquid.
◎Air blow off filling nozzle is available
for sticky product to avoid tail stringing on nozzle
◎Can set different filling speed on one dose.
◎No bottle no fill.
◎Controlled by PLC and operation through touch screen.
◎No tooling needed to change over different size bottles.
◎Quick-install connecting parts , it is easy to disassemble and clear machine.
Main Parameter:
|
Model
|
Unit
|
STRFP
|
|
Nozzle Number
|
PCS
|
6
|
8
|
10
|
12
|
|
Filling volume
|
Ml
|
100-1000ml/ 250-2500ml/500-5000ml
|
|
Production capacity
|
Bottle/h
|
1000-3000 pcs/Hour (
Depends on Filling volume)
|
|
Quantitative error
|
%
|
≤±1%
|
|
Voltage
|
V
|
380V/220V, 50Hz/60Hz
|
|
Power
|
KW
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Air Pressure
|
MPA
|
0.6-0.8
|
|
Air consumption
|
M3/min
|
0.8
|
1
|
1.2
|
1.2
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
