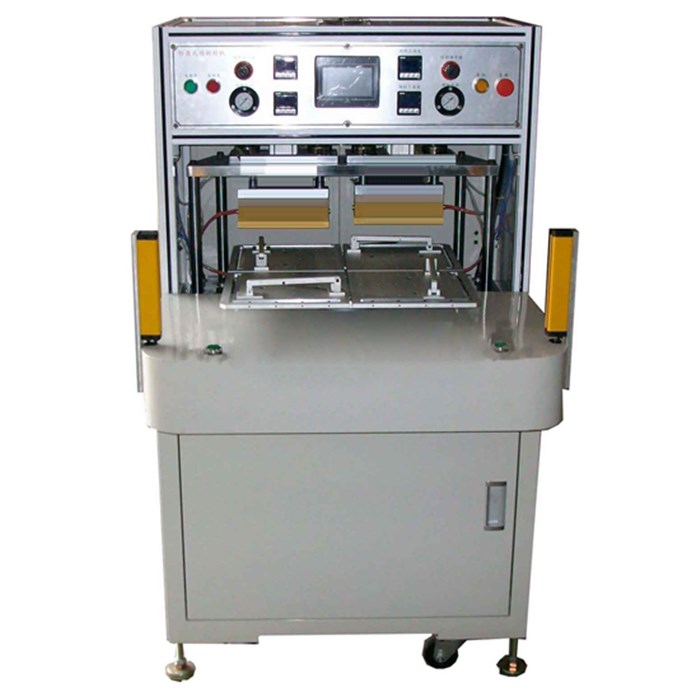

Automatic Pouch Cell Four Station Battery Heat Sealing Machine
Features
1.Suitable for soft packing lithium core top-side heating vacuum sealing
2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30
3.To configure a single head pressure regulator
4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C
5.Fixture locating detection, double-side heating, temperature alarm, screen protection
6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation
Technical Parameters
|
Main technical
parameters
|
TMAX-TTS001
|
TMAX-TTS002
|
TMAX-TTS003
|
|
Size(L*W*H)
|
870*870*1500mm
|
970*970*1500mm
|
1100*1100*1500mm
|
|
Weight
|
500kg
|
800kg
|
1000kg
|
|
Max sealing size
|
top:200mm side:200mm
|
top:240mm side:240mm
|
top:240mm side:240mm
|
|
Sealing head length
|
210mm
|
250mm
|
330mm
|
|
Sealing stamp width
|
2-10mm
|
2-10mm
|
2-10mm
|
|
Production capacity
|
200-600pcs/H
|
100-250pcs/H
|
100-200pcs/H
|
|
Temperature error
|
± 2 °C
|
± 2 °C
|
± 2 °C
|
|
Source voltage
|
AC 220V
|
AC 220V
|
AC 220V
|
|
power
|
3.5KW
|
3.5KW
|
3.5KW
|
|
Air supply
|
0.6-0.7Mpa 10L/S
|
0.6-0.7Mpa 10L/S
|
0.6-0.7Mpa 10L/S
|
