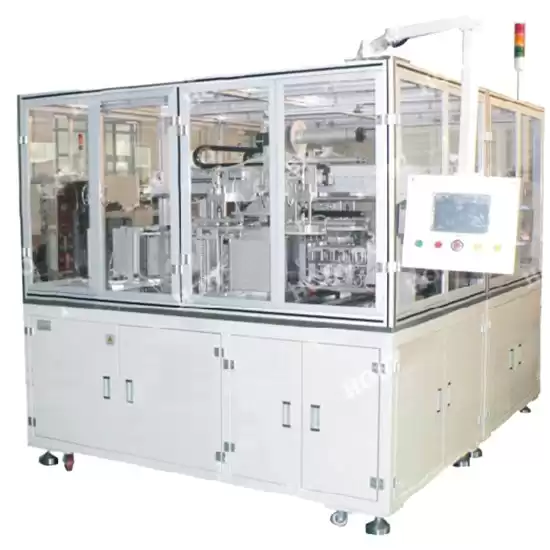

Automatic Pouch Cell Stacking Machine For Lithium Battery Stacking Process
Functions
● This equipment is suitable for the lithium-ion battery batteries of anode and cathode Z with isolation membrane laminated assembly, automatic outsourcing isolation membrane in the polar group, automatic cutting off the diaphragm, automatically terminate locking adhesive tape, automatic blanking, manual collect batteries.
Features
● Anode and cathode are single configuration manger, the trough’s sheet with real-time lifting structure;
● Slight bend, brush, shaking and flexible sucker can effectively prevent the multi-plate absorption phenomenon;
● Secondary precise positioning, ensure the plate alignment degree;
● Equipment dust removal device, can focus the dust collector chipped, ensure mechanical mesa clean;
● Anode and cathode pressure claw cathode film, prevent cross contamination phenomenon;
● solation membrane ion wind blow dry, remove the isolation membrane electrostatic;
● Secondary positioning installation of ultrasonic sensor to detect repeat or lack of pills;
● Adopts servo drive lamination machine, can make the stress between the layers of sheet was evenly;
● Imported non-trace buffer sucker, effective to prevent the occurrence of suction plate printing, indentation phenomenon;
● With functions of diaphragm recycling and the first piece of diaphragm correction function.
Technical Parameters(for reference)：
|
ITEM
|
HBZDP150
|
HBZDP250
|
HBZDP300
|
|
Measure
|
1800*1600*1950mm (L*W*H)
|
1920*1850*1950mm (L*W*H)
|
2100*1850*1950mm (L*W*H)
|
|
weight
|
About 1.0 T
|
About 1.2 T
|
About 1.3 T
|
|
power
|
AC220V/50HZ, 3.0kw
|
AC220V/50HZ, 3.0kw
|
AC220V/50HZ, 3.0kw
|
|
Air source
|
＞0.6Mpa,30L/min
|
＞0.6Mpa,30L/min
|
＞0.6Mpa,30L/min
|
|
Vacuum source
|
≤-0.09Mpa,15L/s
|
≤-0.09Mpa,15L/s
|
≤-0.09Mpa,15L/s
|
|
Applicable range
|
L:50-150mm,W: 35-90mm,T:5-30mm
|
L:100-250mm,W: 60-150mm,T:5-50mm
|
L:150-300mm,W:100-200mm,T:5-50mm
|
|
Capacity
|
1.1-1.4s/plate
|
1.2-1.6s/plate
|
1.3-1.7s/plate
|
|
Action
|
＞99%
|
＞99%
|
＞99%
|
