Product Item:Automatic rotary type plastic yoghurt cup sealing machine
Description
Rotary type plastic cup filling and sealing machine belong to automatic plastic cup packing machine, the whole machine is made of stainless steel 304. Simple and reasonable structure, sealing of high efficiency and easy operation; Suitable for various sizes of plastic cup, plastic trays and special-shaped plastic containers heat sealing, it's widely used in pharmaceutical, cosmetic and food industries.
Advantage:
1, the whole machine adopts 304 stainless steel and aluminum alloy material, according to requirements of the GMP for food;
2, adopts pure electric drive and air supply, suitable for small businesses, restaurant, hotel, shop supermarket and canteen management place;
3, LCD display control sealing time, photoelectric sensor film location tracking, after sealing design accuracy;
4, automatic sealing process, saving manpower, improve the sealing quality.
5, different material, different thickness of a thermal sealing material all can use;
6, optional code printer, timing roll of film and mold replaceable,easy to remove and install new mold;
7, can be used with a variety of equipment collocation, such as liquid filling machine, paste filling machine, filling packing line etc.;
8, special size and shape of tray can be customize mold.
Technical parameters
|
Technical Specifications
|
|
Model
|
LD801R
|
|
Voltage(V)
|
AC110-220V/50-60Hz
|
|
Power(W)
|
500-1000W
|
|
tray size (mm)
|
50-250mm
|
|
Packing speed(pcs/hour)
|
800-1000
|
|
Sealing materials
|
PP,PE,PET,PS and etc.
|
|
Working temperture
|
0-300 ℃
|
|
Air pressure range
|
0.5-0.8Mpa
|
|
Gross Weight(kg)
|
250kg
|
|
Package Size(mm)
|
1150*1150*1550mm
|

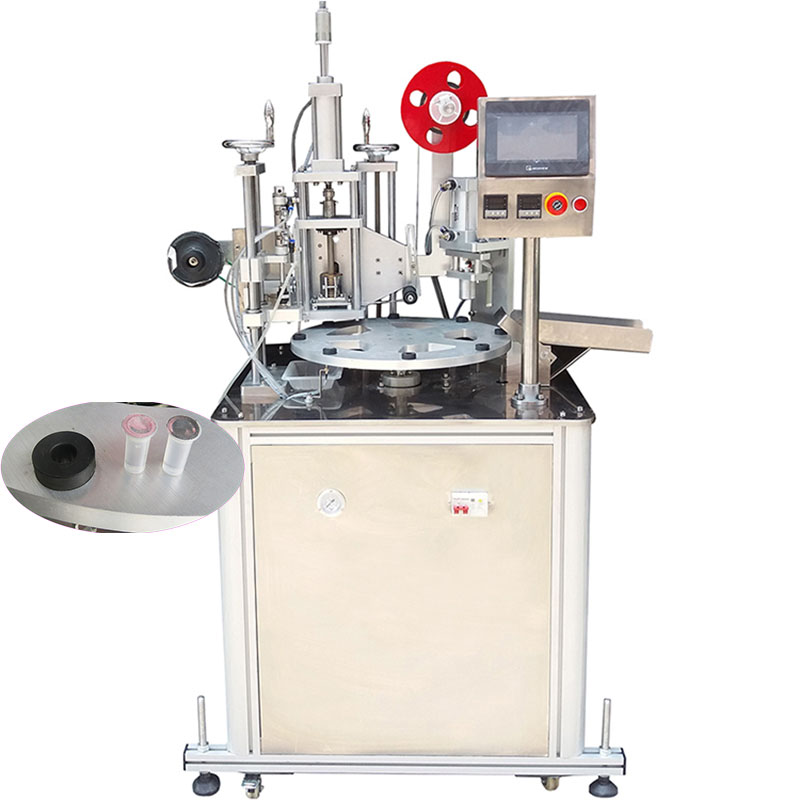

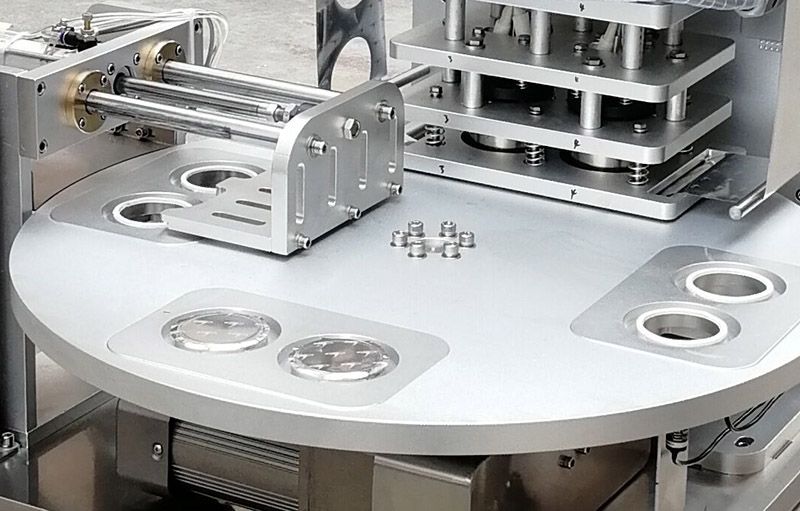

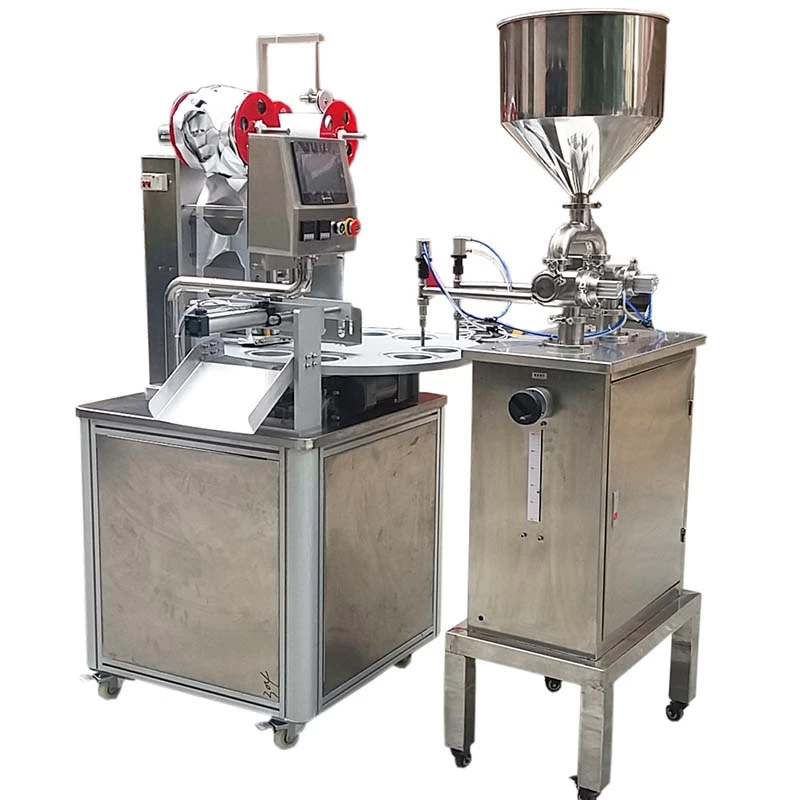

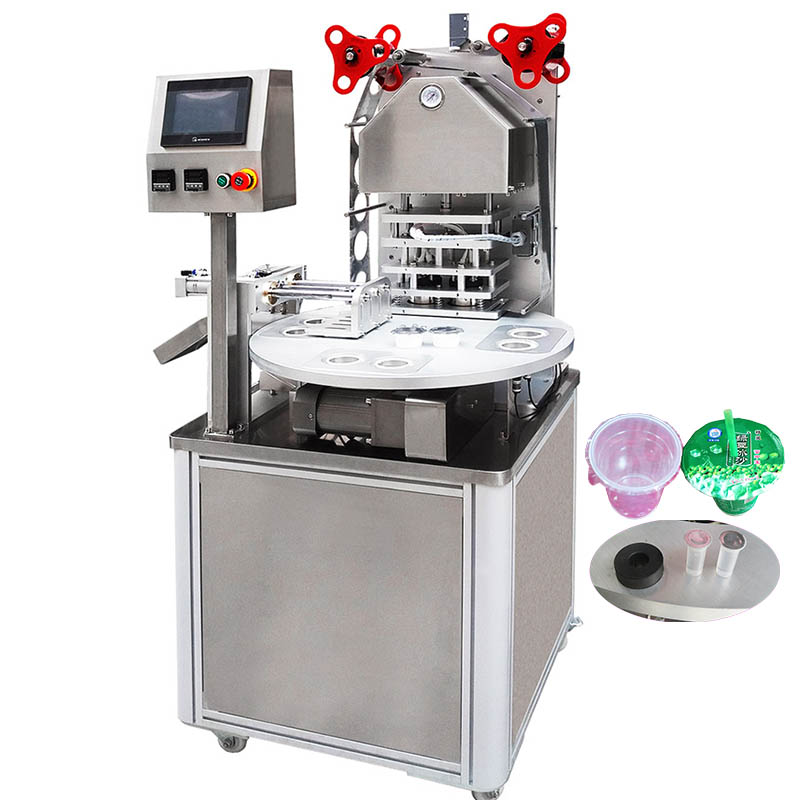

Pictures:
