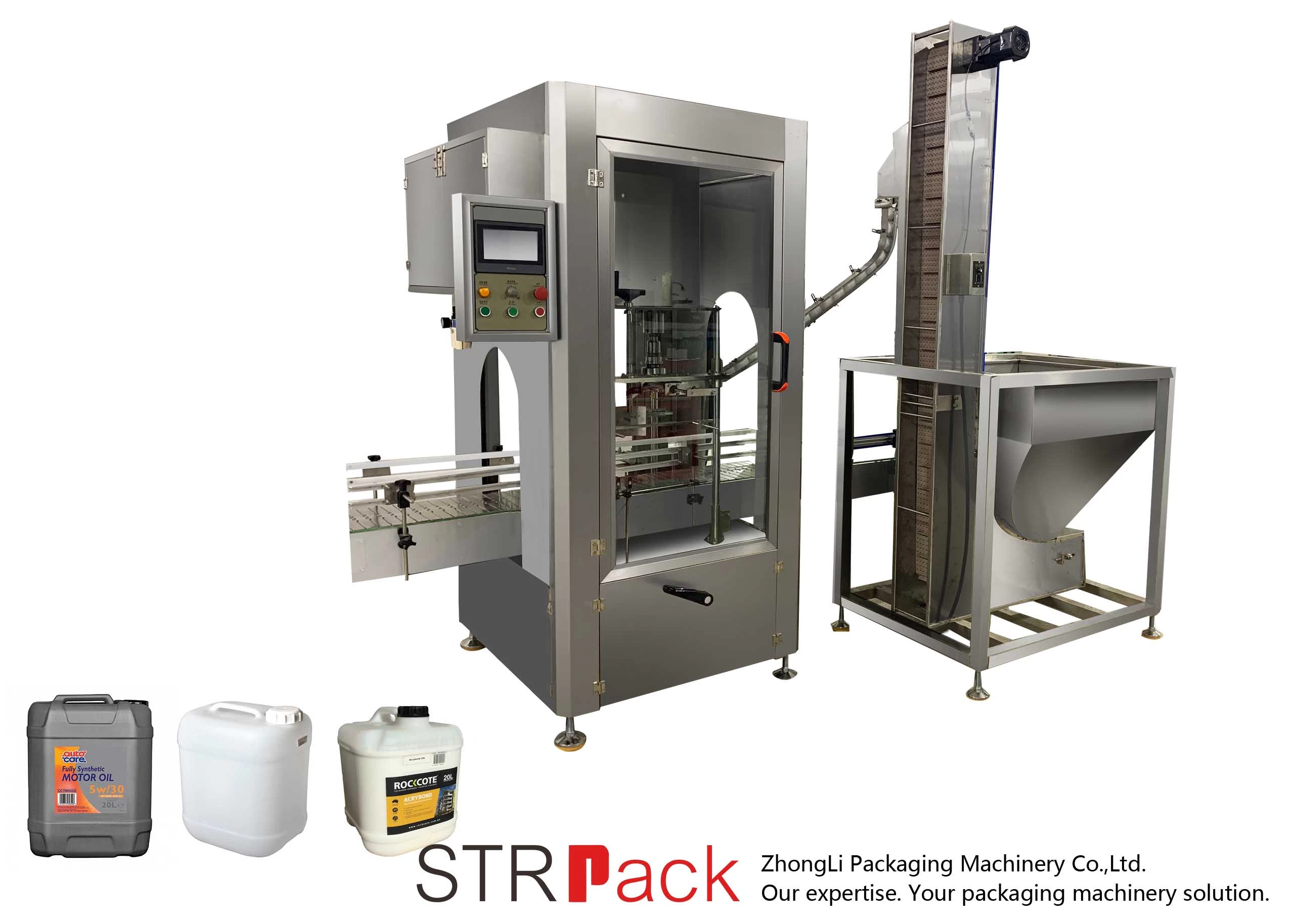

Automatic Single Head Capping Machine

Automatic Single Head Capping Machine is controlled by PLC and equipped with photo electricity instruction and pneumatic action.




  • Warranty:2 Years
  • CertificationISO CE
  • Brand NameSTRPACK

Automatic Single Head Capping Machine



Brief Introduction:

Automatic Single Head Capping Machine is controlled by PLC and equipped with photo electricity instruction and pneumatic action.

Bottles will be positioned by two cylinders for automatic cap loading and closing.

Automatic cap catching is controlled by double-acting cylinder, the cap loading is accurate.

With servo motor to drive capping head, capping torque is adjustable according to different caps.

The capping head has a clutch to avoid over capping which damage the caps.

It is suitable for capping of 1-5kg bottle plastic caps, also can be custom-made for 10-30L bottles.


Main Parameter:

No.

Model

FX-1A

1

Speed

1500bottles/hour

2

Cap Type

Screw cap

3

Bottle Diameter

≤320(L)*220(W)mm

4

Bottle Height

250-450mm

5

Power

2.0KW

6

Air Pressure

0.6-0.8Mpa

7

Voltage

220V/380V 50Hz/60Hz

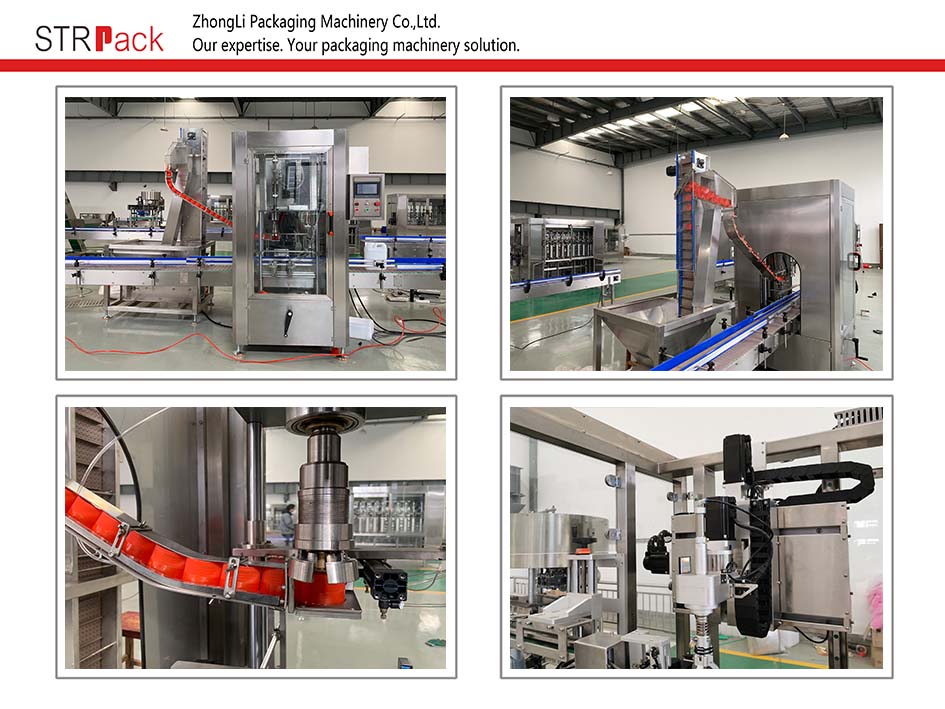

Automatic Single Head Capping Machine

After-sales Service:

(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
