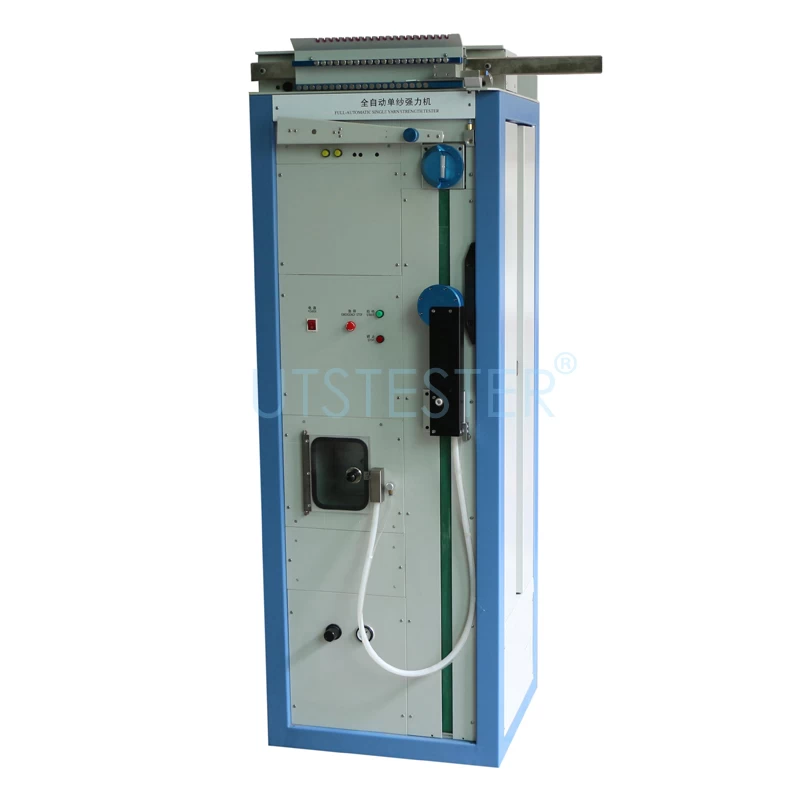

Automatic Single Yarn Strength Tester, Used for testing breaking strength and elongation of single yarn and pure or mixed yarn of various cotton, wool, linen, silk, chemical fiber and core-spun yarn.

Features

1. It has the function of automatic rejection of abnormal data, time stretching, data preservation and query.

2. The computer can be automatically analyzed, and the data and charts can be automatically counted and analyzed.

3. There is no need to add pre-tension weight, and computer automatically controls the pre-tension.

4. Quick and automatic strength correction button, which can be automatically adjusted to zero by simply pressing it once.

5. The internal circuit design adopts the independent functional circuit board to reduce the maintenance time.

6. The percentage (%) of the broken line extension can be set according to the needs of different yarns.

7. Control can be set, upper and lower limit of strong extension. If the limit exceeds, the test will be stopped automatically, or the test will be executed according to the set instruction.

8. The reference strength and extension point can be set and the data can be printed automatically.

Standards

GB/T 14344, GB/T 3916, ISO 2062, ASTM D2256

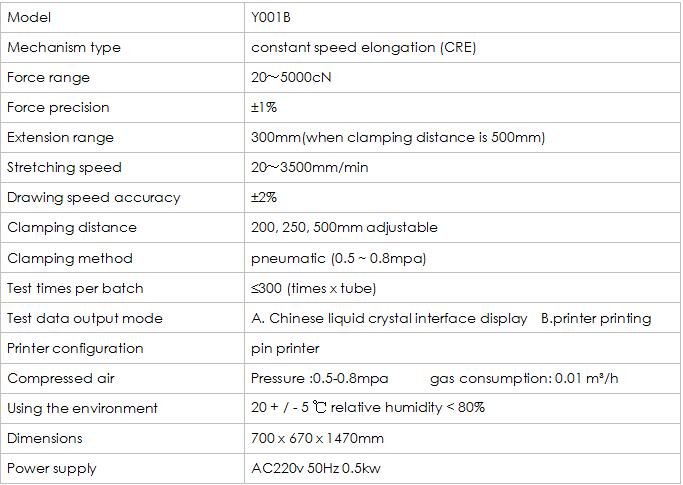

Key Specifications

Applications
