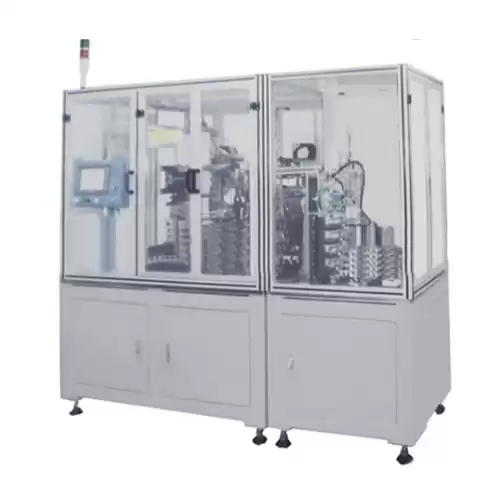

Automatic Stacking Machine For Pouch Cell Electrode Making
SPECIFICATIONS
1 This Battery stacking machine is a full-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.
2 The battery stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination by Mechanical arm.
3 It is also equipped with Tape sticking function and Conveyor belt to take the finished battery core out automatically.
|
Model
|
TMAX-03-200-AS
|
|
Source voltage
|
AC 220V, 50HZ
|
|
Power
|
1.2KW
|
|
Air compression
|
0.6-07MPa, Vacuum -0.095MPa
|
|
Suitable battery size
|
≤200*120*10mm
|
|
Separator width
|
200mm
|
|
Fixture size
|
200mm
|
|
Accuracy of struggle
|
0.05mm
|
|
Capacity
|
1.8s/pcs
|
|
Dimension
|
2500*1800*1750mm
|
|
Weight
|
1200kg
|
