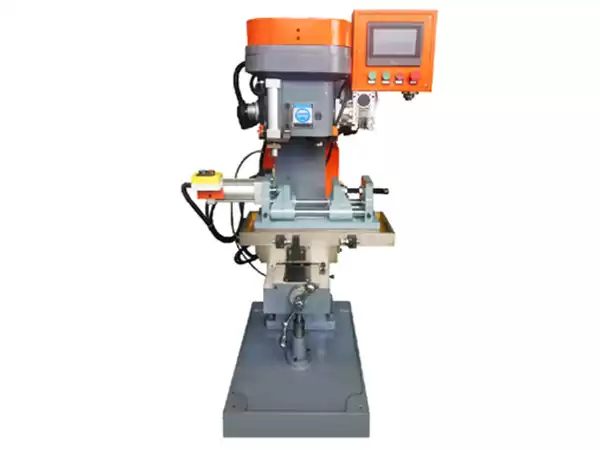

Automatic Two Shaft Machine for Faucets
Feature
The electrical is adopted PLC programmable controller. This automatic two shaft machine can be applied in components processing in large quantity. The drilling and threading processing can be finishing once. The guide rail(guideway) quenches by super audio frequency. Slide moving use with buffer, low vibrate, and adopts pneumatic clamp, loading and unloading fastly.
Function
1. Specially designed computer-controlled system,facilitating the operation.
2. Compact frame with pleasing appearance.
3. Applicable for processing parts of large batch, one-off drilling and threading extending high efficiency.
4. All sliding surfaces with lubrication device, ensuring high service life.
5. Pneumatic device for the work bench, extending reliable work and rapid react.
Main Components
1. Casted Iron 6 Pieces: Base, Column, Spindle Box, Lift Platform, Panel, Worktable
2. All the spindle bearings come from Japan.
3. Electrical System: See the components list from the manual( details in the attach)
4. Pneumatic System: ALL Pneumatic components are import from Korea.
5. Lubrication System: Manual Oil Injector.
6. Arbor (Tool Holder)
7. The Spindle Motor from Dasu Brand
8. MT4 Reamer sleeve, Tension spring, Air gun, claw wrench, Tool Box, including operation manual, guarantee Card, Certificate compliance, packing list.
9. Pneumatic Vice Q51125
Warranty
Provide one year warranty for whole machine, excluding the wearing parts below: tension spring, spring, tap screw(For ZS4150*2A/ZS4180*2A), tap expectorator, synchro belt, motor.
Details not guarantee under the warranty:
Not agreed by the seller’s with the written approval, the buyer arrange other factory or customer change the machine parts and maintain; any unexpected or natural disaster etc Force Majeure Event for equipment damaged, or the negligence or not handled properly by the company person.
|
Parameter
|
Units
|
Model
|
|
|
|
ZSK4132×2
|
|
Max.drilling diameter
|
mm
|
￠32
|
|
Max.tapping diameter
|
mm
|
￠32
|
|
Taper hole of spindle
|
MT
|
NT30
|
|
Travel of table
|
mm
|
120
|
|
Travel of spindle(drilling/tapping)
|
mm
|
110
|
|
X axis travel (pneumatic)
|
mm
|
120
|
|
Y axis travel (manual)
|
mm
|
110
|
|
Z spindle turning speed(drilling hole)
|
r/min
|
675 1013
|
|
Z 1 spindle turning speed (tapping)
|
r/min
|
675 1013
|
|
Table to spindle spacing
|
mm
|
160-480
|
|
Distance between spindle axis and bed guide surface L
|
mm
|
86
|
|
Spindle motor power
|
KW
|
3/4kw
|
|
Tapping motor power
|
KW
|
3/4kw
|
|
Working table size
|
mm
|
600×230
|
|
Dimension(L×W×H)
|
mm
|
1420×840×1750
|
|
Weight
|
kg
|
1250
|
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
